1-10V LED Dimmer RF/Pushbutton
Ref. Lyco: E11322
Colour White
£23.99
VAT not included £13.99
£16.79
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

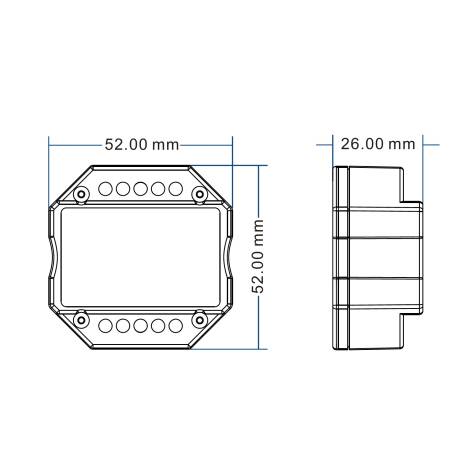

Dimensions
- Depth25 mm
- Height52 mm
- Width52 mm
Downloads
PDF Datasheet 63731_124703 EN
IM_124703
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Frequency50-60 Hz
- Max Wattage360 W
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of Dimming0-10 V, 1-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Data
- Product FormatDimmer Switch
- Product typeWi-Fi Module
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The RF 1-10V Universal LED Dimmer/Push button uses wireless technology in the 2.4 GHz band. It is specially developed for the control of 1-10V dimmable LED lamps without the need to install wiring.
Thanks to this dimmer, it is possible to manually change the luminosity of the luminaires, creating various environments for different occasions and needs.
This dimmer can have several control places, either wireless or classic buttons connected by cable.
Characteristics RF 1-10V Universal LED Dimmer/Push button
The RF 1-10V Universal LED Dimmer/Push button can be mounted anywhere thanks to its extra-flat design, behind the switch or inside the junction box, as it is only 25 mm thick.
The controller can be used with the RF Remote for 1-10V and Triac Controllers, the LED 1-10V and Triac Universal Dimmer Switch as well as classic pushbuttons.
Operation of the RF 1-10V Universal LED Dimmer/Push button
The use of the RF 1-10V Universal LED Dimmer is very simple. To turn the luminaires on and off, you only have to press the button briefly and, when you want to regulate the intensity of the luminaire, you have to keep the button pressed until you reach the desired intensity. The dimmer has a memory for storing the brightness at which the luminaire has been switched off.
Don't miss this opportunity, and take advantage of it to enjoy the best quality lighting, accompanied by elegance and style.
