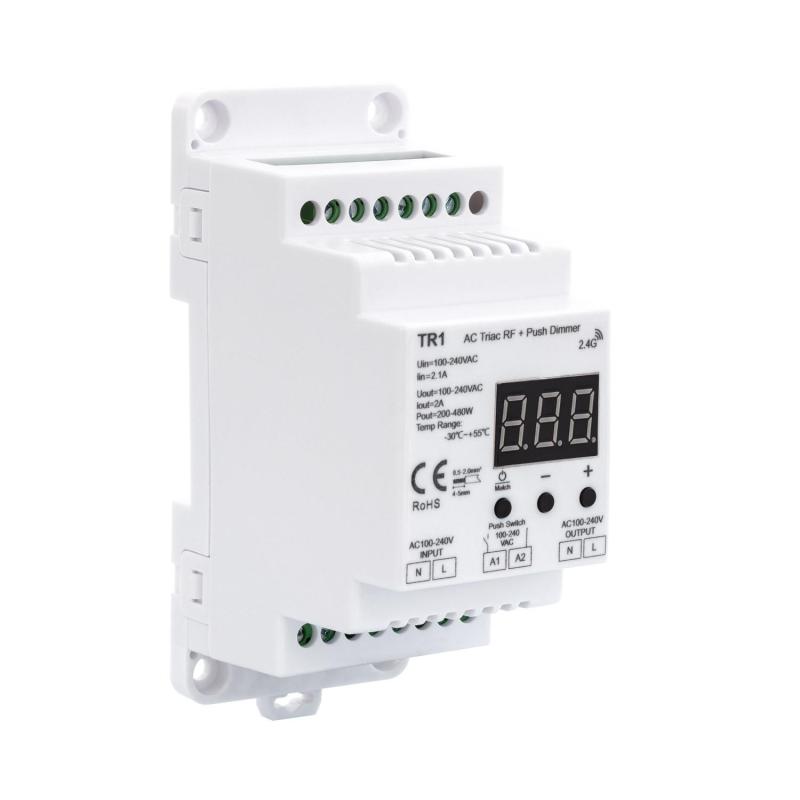

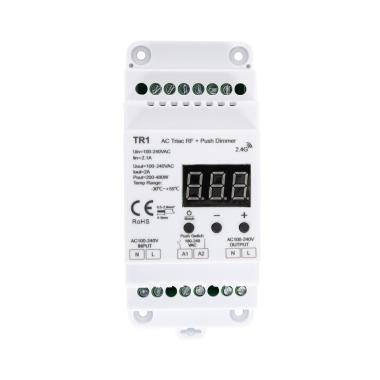

TRIAC LED Dimmer RF/Pushbutton for DIN Rail - 2 A
Ref. Lyco: E1239
Current Intensity 2 A
VAT not included £32.49
£38.99
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
24h Free Delivery on Orders Over £70
If you place your order today before 8:45 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 70.00 (incl. VAT).
Please note this delivery service is subject to stock availabilityFull conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height110 mm
- Width48 mm
- Depth67 mm
Downloads
IM_124680
Certificates and Stamps
Technical Specifications
Electrical Features
- Current Intensity2 A
- Frequency50-60 Hz
- Max Wattage300 W
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- InstallationDIN
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Data
- Product FormatDimmer Switch
- Product typeAuxiliary Contactor / Relay
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Key Features
- The Universal Triac LED RF/Pushbutton Dimmer for DIN Rail uses wireless technology in the 2.4 GHz band
- It is specially developed for the control of dimmable LED lamps as well as incandescent or halogen lamps without the need for wiring
Description
The Universal Triac LED RF/Pushbutton Dimmer for DIN Rail uses wireless technology in the 2.4 GHz band. It is specially developed for the control of dimmable LED lamps as well as incandescent or halogen lamps without the need for wiring
Thanks to this dimmer, it is possible to manually change the luminosity of the luminaires, creating various environments for different occasions and needs.
This dimmer can have several control places, either wireless or classic buttons connected by cable or in the same dimmer with its buttons
Characteristics of the Universal Triac LED RF/Pushbutton Dimmer for DIN Rail
The Universal Triac LED RF/Pushbutton Dimmer for DIN Rail can be mounted on a DIN rail with a width of only two modules.
It incorporates two types of dimming, beginning and end of phase. Both can be selected by means of the selector that incorporates the dimmer according to the requirements specified by the lamp used in each case.
The control can be carried out with the RF Controller for 1-10V and Triac dimmer, the LED Universal Switch Dimmer 1-10V and Triac as well as classic buttons.
Operation of the Universal Triac LED RF/Pushbutton Dimmer for DIN Rail
The use of the Universal LED Triac RF Controller for DIN rail is very simple. To switch the luminaires on and off, simply press the button briefly. When you want to dim the intensity of the luminaire, keep the button pressed until the desired intensity is reached. We can also turn on and dimthe luminaire from the three buttons that are in the same regulator. The regulator has a memory for storing the luminosity at which the luminaire has been switched off.
