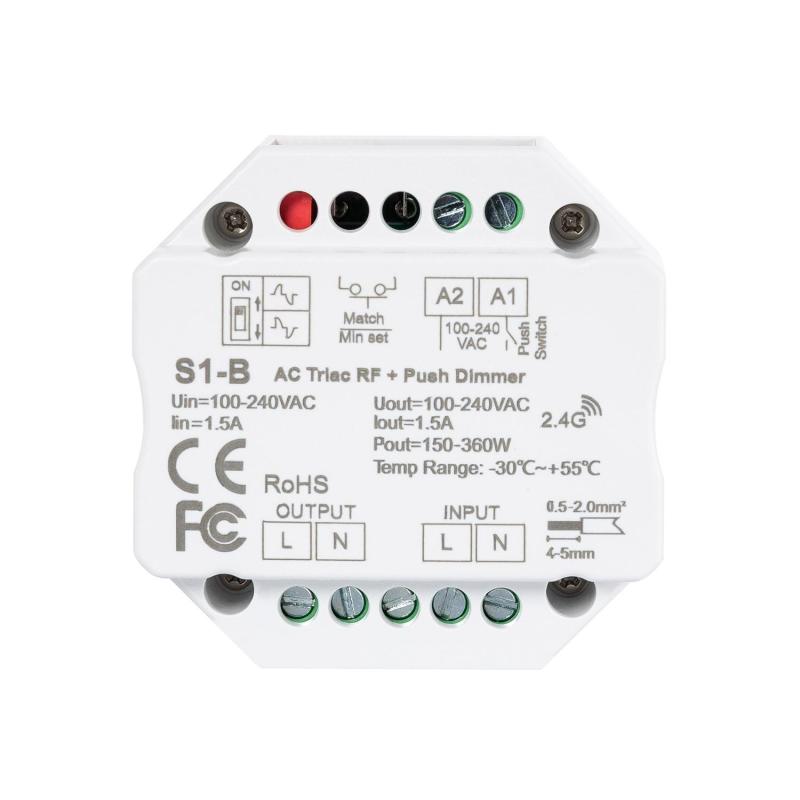

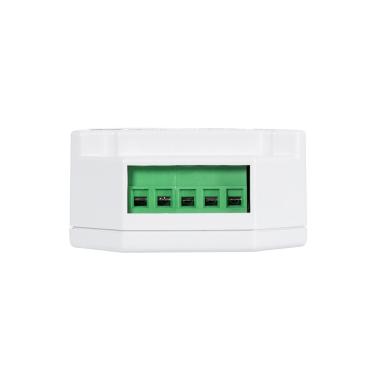

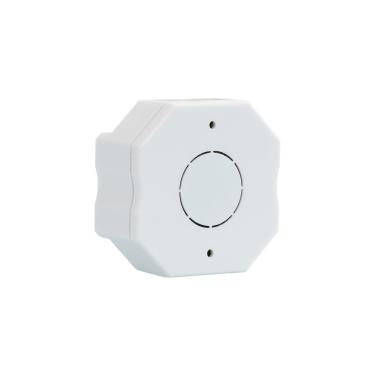

TRIAC LED Dimmer RF/Pushbutton
Ref. Lyco: E11317
Colour White
VAT not included £19.99
£23.99
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

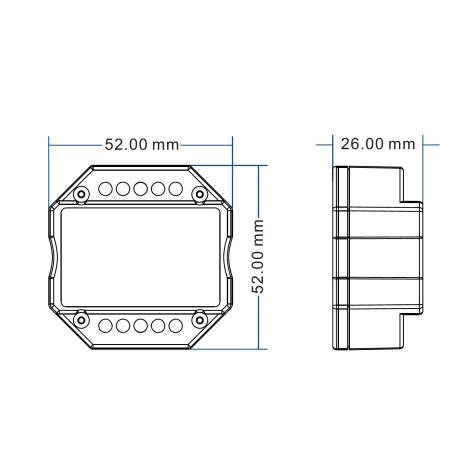

Dimensions
- Depth26 mm
- Height52 mm
- Width52 mm
Downloads
PDF Datasheet 63707_124679 EN
IM_124679
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Frequency50-60 Hz
- Max Wattage360 W
- Nominal Voltage100 V - 240 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of DimmingTRIAC
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Data
- Product FormatDimmer Switch
- Product typeWi-Fi Module
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The Triac RF/Pushbutton LED Dimmer uses wireless technology in the 2.4 GHz band. It is specially developed for the control of dimmable LED lamps as well as incandescent or halogen lamps without the need for wiring.
Thanks to this dimmer, it is possible to manually change the luminosity of the luminaires, creating various environments for different occasions and needs.

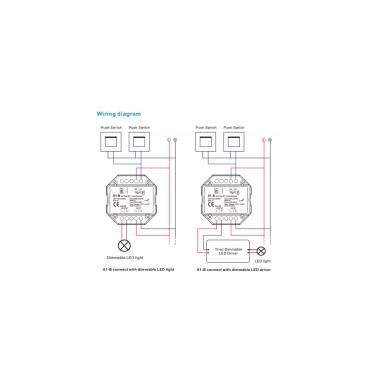

This dimmer can have several control places, either wireless or classic buttons connected by cable.
Characteristics of the Triac RF/Pushbutton LED Dimmer
behind the pushbutton or inside the junction box, as it is only 26 mm thick.

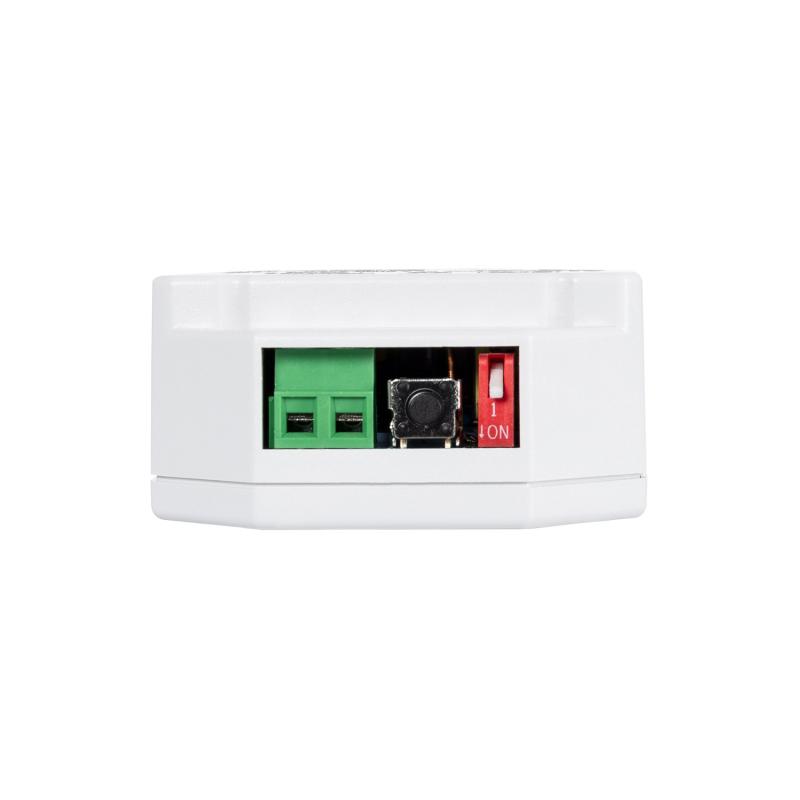

It incorporates two types of dimming, beginning and end of phase. Both can be selected by means of the selector that incorporates the dimmer according to the requirements specified by the lamp used in each case.
The control can be carried out with the RF Controller for 1-10V and Triac dimmer, the LED Universal Switch Dimmer 1-10V and Triac as well as classic buttons.
Operation of the Triac RF/Pushbutton LED Dimmer
The use of the Triac RF/Pushbutton LED Dimmer is very simple. To turn the luminaires on and off you only have to press the button briefly and, when you want to dim the intensity of the luminaire, you have to keep the button pressed until you reach the desired intensity. The dimmer has a memory for storing the brightness at which the luminaire has been switched off.
Don't miss this opportunity, and take advantage of it to enjoy the best quality lighting, accompanied by elegance and style.
