Wattage 10 W
Lumen 900 lm
Cut Out Dimensions 95mm
Glare Factor UGR <19
Wattage
10 W
Lumen
900 lm
Cut Out Dimensions
95mm
Glare Factor
UGR <19
IP Rating
IP20
Battery Operated
No
Dimensions
109 mm x 109 mm x 65 mm
Width
109 mm
Height
109 mm
Luminous Efficiency
90 lm/W
Beam Angle
24º
Fitting Material
Aluminium

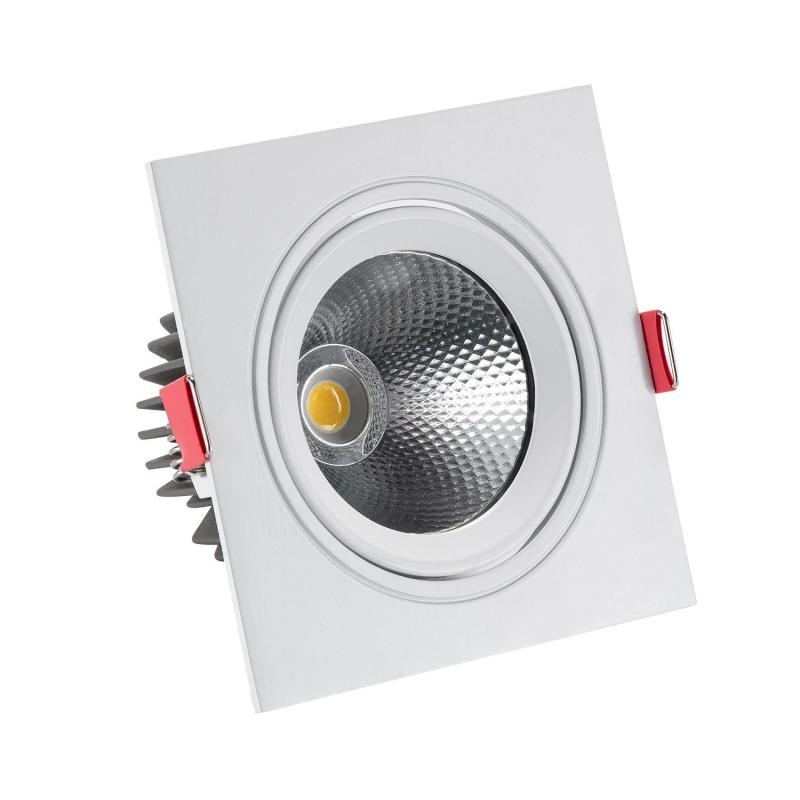

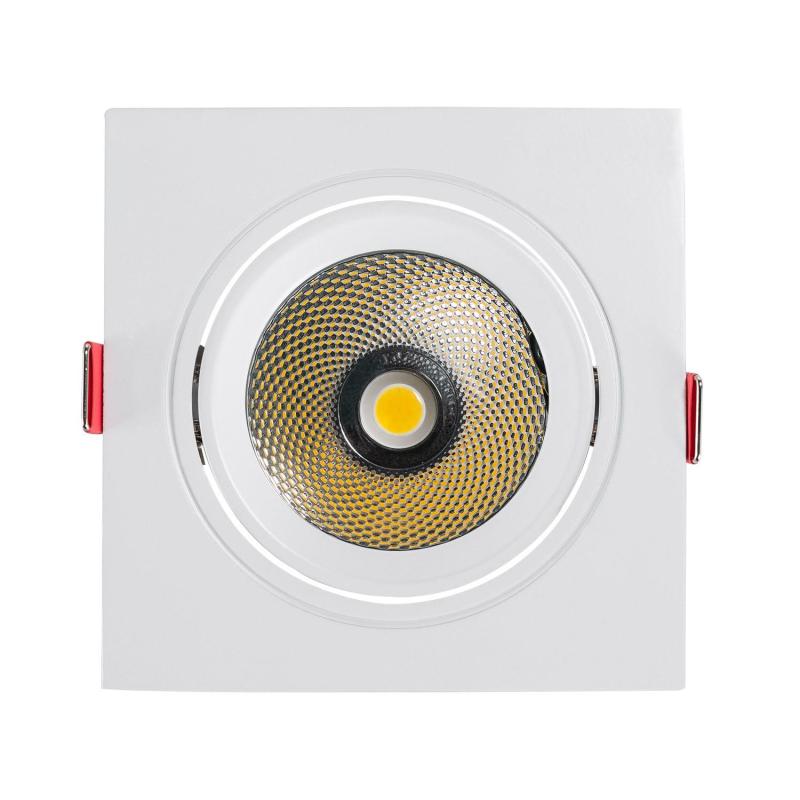

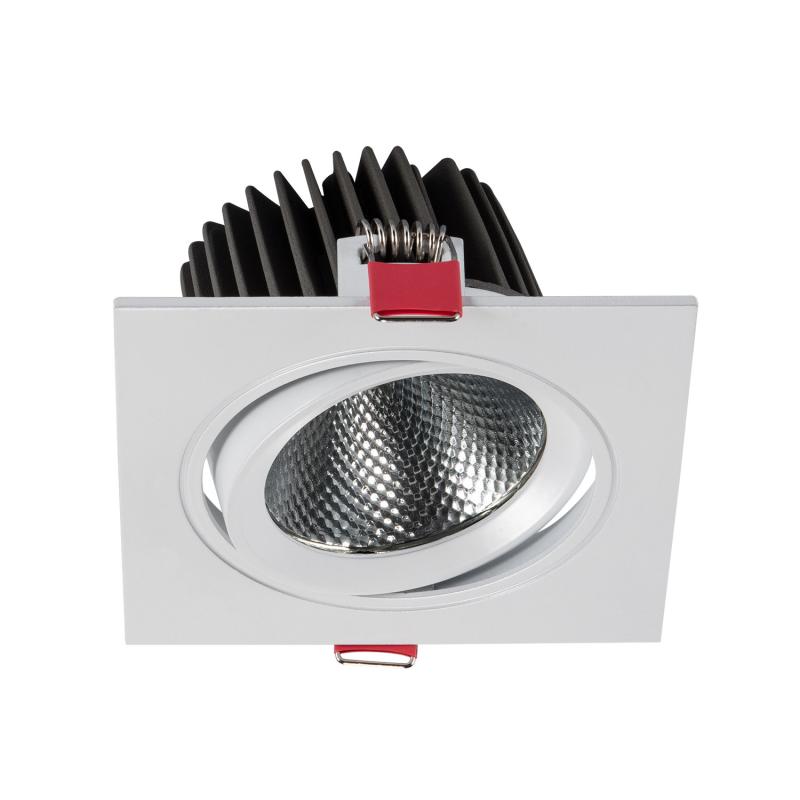

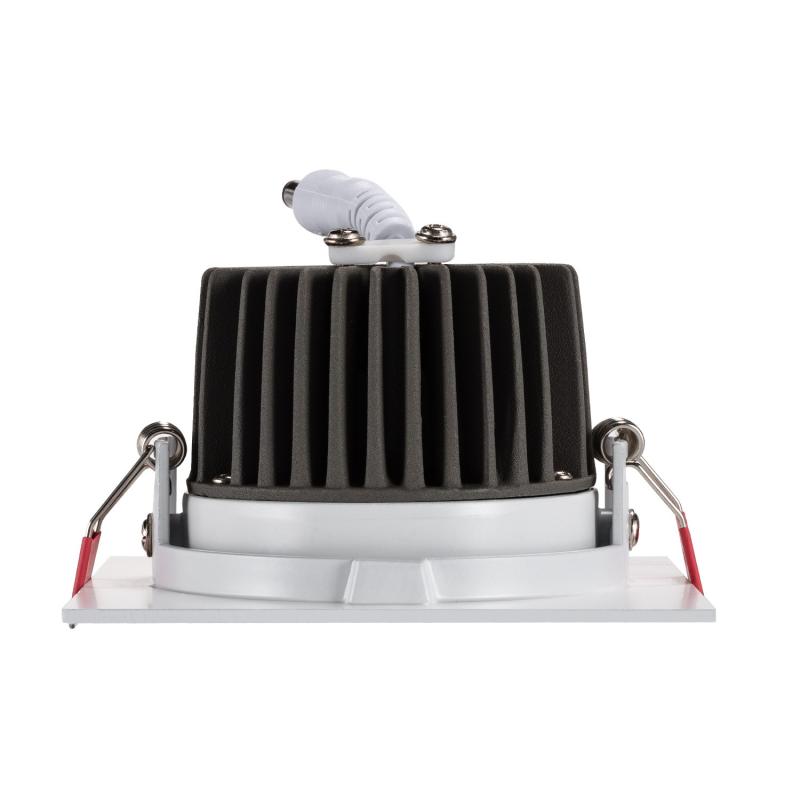

Square 10W Cool White COB LED Adjustable Downlight New Madison Cutout 95mm- White
Ref. Lyco: E1767
(1)5 out of 5 stars
Colour Temperature Cool White 4000K
VAT not included £10.41
£12.49
In Stock, Delivered in 8 to 14 working days
(1)5 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height109 mm
- Width109 mm
- Depth65 mm
- Cut Out Dimensions95mm
Downloads
PDF Datasheet 63179_123773 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSANAN COB
- Nominal Voltage85 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceYes
- Wattage10 W
LED Features
- Beam Angle24ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <19Low-glare products offer more comfortable lighting, suitable for extended use.
- Hours50.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourCool White
- Lumen900 lm
- Luminous Efficiency90 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Mechanical Features
- DirectionalYesAbility to move or rotate the spotlight to direct the light as desired.
- InstallationCeiling
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeSquare
Product Data
- Product FormatAdjustable Downlight
- Product typeLED Downlight
Materials and Finishes
- ColourWhite / Silver
- Fitting MaterialAluminium
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Driver Information
- Driver Intensity300 mA
- Driver Tension30 V-35 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Description
The Square 10W New Madison COB LED Downlight (UGR19) is a very versatile product that will allow us to direct its light beam in 360° towards specific points according to the needs of the moment, providing a significant saving in electricity consumption.
Characteristics of the Square 10W New Madison COB LED Downlight (UGR19) Cut Ø 95 mm
It incorporates a LED optic with a total power of 10W. The high quality light it emits is centred at an angle of 24º and has a colour rendering index of 80.
By choosing LED lighting, we not only choose to save on the light bill, but we also opt for a more ecological technology, of higher quality and with a duration ten times longer than that of traditional lighting systems.
All the characteristics of this LED lighting product make it perform well. Ideal for use in interior spaces where the use of a large amount of light is not necessary. It is mainly used in transit areas such as hallways, corridors or staircases.
