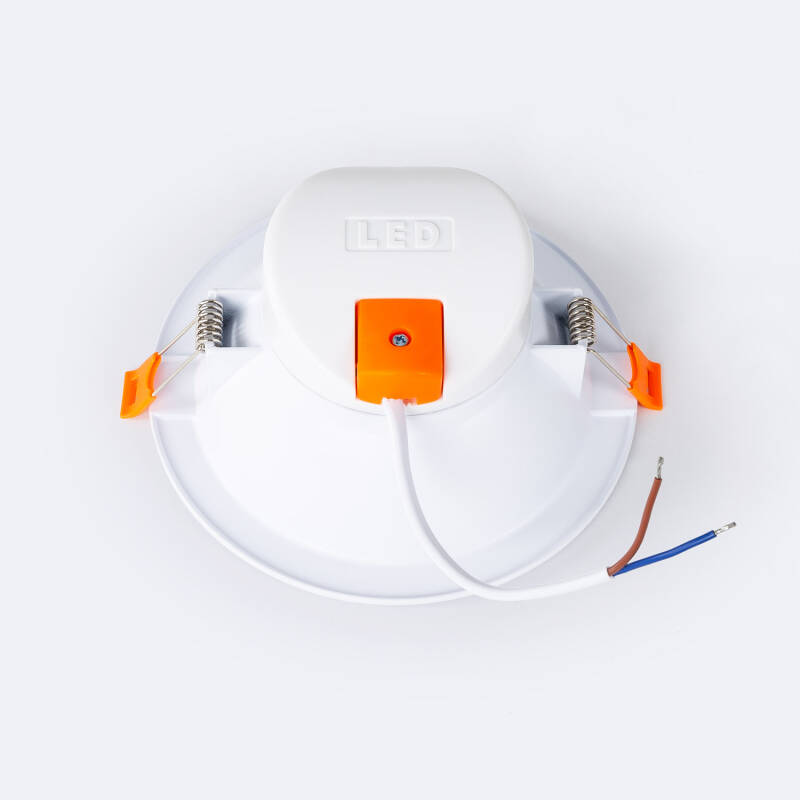

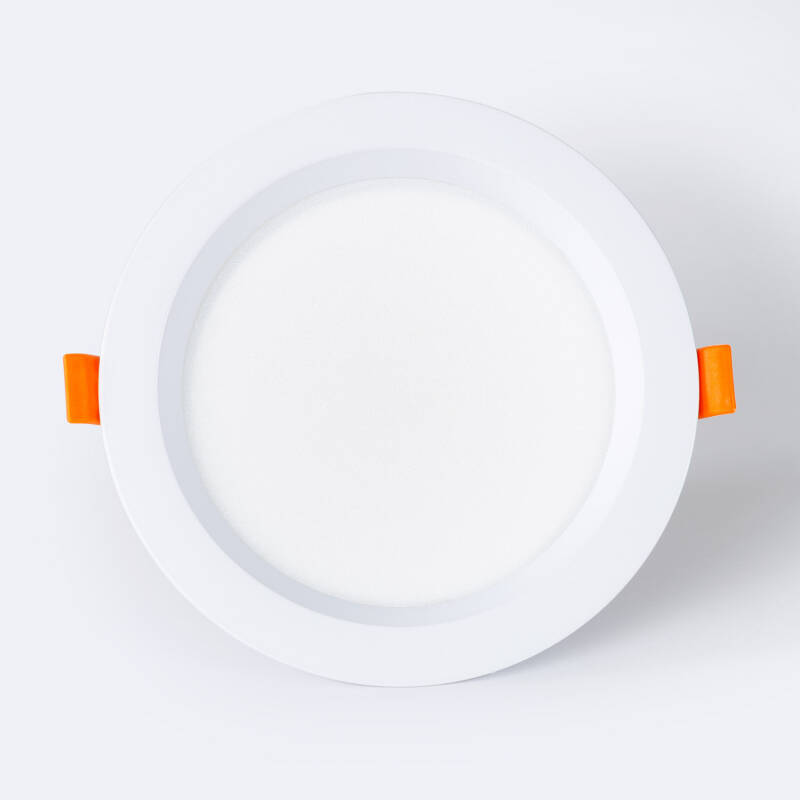

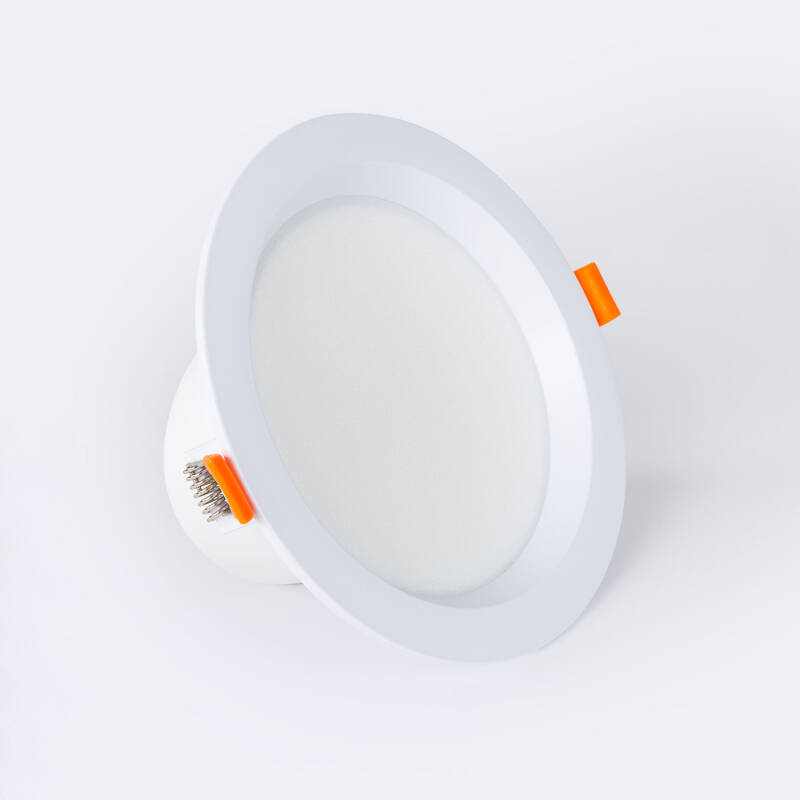

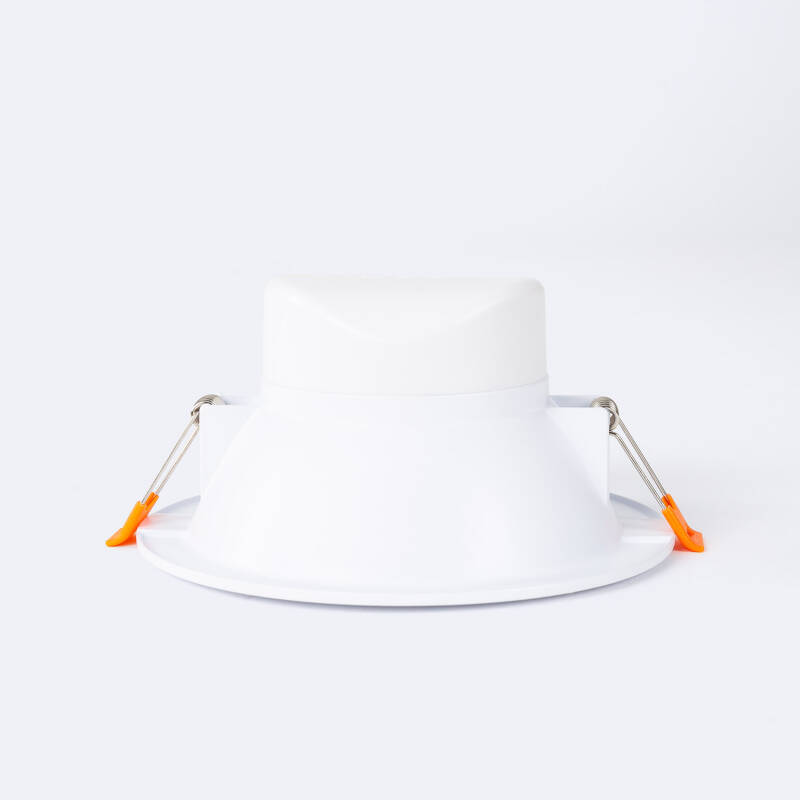

Image of Round 12W LED Downlight New Lux IP44 Cutout 135mm
Image of Round 12W LED Downlight New Lux IP44 Cutout 135mm
Image of Round 12W LED Downlight New Lux IP44 Cutout 135mm
Image of Round 12W LED Downlight New Lux IP44 Cutout 135mm

Round 12W Daylight LED Downlight New Lux IP44 Cutout 135mm - White

Ref. Lyco: E4663

Colour Temperature No Flicker Daylight 5000K

VAT not included £10.41

£12.49

Energetic efficiency

IN STOCK - Delivered in 1 to 2 working days

    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • 24h Free Delivery on Orders Over £70

      If you place your order today before 8:45 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 70.00 (incl. VAT).

      Please note this delivery service is subject to stock availability



      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

Dimensions

  • Diameter146 mm
  • Height75 mm
  • Cut Out DimensionsØ125 mm

Downloads

  • pdf file

    IM_63051_123471

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle100º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index85
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <19
    • Light ColourDaylight
    • Lumen1200 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W
    • Power Factor0.9

  • Electrical Features

    • DimmableNo
    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Light SourceLUMILEDS SMD5050
    • Replaceable Light SourceYes
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage12 W

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialPC, Aluminium
    • Type Of LensFrost

  • Mechanical Features

    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalNo
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP44
    • LocationIndoor
    • ShapeCircular

  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, UKCA
    • Guarantee5 years
    • Product SeriesLux

  • Product Data

    • Product FormatFixed Downlight
    • Product typeLED Downlight
Summer lights

Key Features

  • Colour: White, Frosted
  • Material: Polycarbonate
  • Wattage: 12W equivalent to 120W halogen.
  • Light Colour: Daylight (6000, 6500K).
  • Average Life Expectancy: 30,000 hours.
  • Guarantee: 5 years guarantee.
  • Dimmable: Non-Dimmable.
  • IP Rating: IP44, Class II
  • Fire Rating: No.
  • Dimensions:
    Overall - H 60 x W 145mm
    Cut Out - Dia 135mm

Description

The 12W New Lux LED Downlight (UGR19) presents a modern and compact design that with its integrated driver allows direct connection to the mains. The main elements such as the front ring, the heatsink and the reflector are made of high purity aluminum with the highest quality finishes.

Characteristics of the  12W New Lux LED Downlight (UGR19)

It features a light source of the LUMILEDS brand with SMD3030 technology that provides a performance output of 100 Lm/W. It emits high quality light, as indicated by its high colour rendering index, avoiding colour distortion, with a beam angle of 90º. This makes it ideal for product display. The IP44 factor indicates that it is specially protected against dust and splashes. Guaranteeing a lifespan of 30,000 working hours.

The 12W New Lux LED Downlight (UGR19) features a glare factor UGR<19 to ensure uniform and glare-free light, making it ideal for work areas such as offices, conference rooms, classrooms, libraries, etc.

Advantages of the 12W New Lux LED Downlight (UGR19)

Its installation is extremely simple because of its integrated driver and its light weight. It only requires a 135mm diameter cut-out on the surface to be installed.

Thanks to the performance of this dowlight can be used almost anywhere whether in stores, museums, shopping malls, hotels, supermarkets, restaurants, etc., although it can be used in various areas outside the commercial sector such as stairs, hallways, corridors ...or as a complement to the general lighting in offices, conference rooms, classrooms, libraries, etc.

At our online lighting store you will find the New Lux LED Downlight (UGR19) in different colour temperatures and different wattages, with all the confidence offered by CE and RoHS certificates along with the five-year warranty that we offer.
