Wattage 40 W
Voltage Range 220-240V AC
Type Of Dimming TRIAC
Power Factor 0.9
Wattage
40 W
Voltage Range
220-240V AC
Type Of Dimming
TRIAC
Power Factor
0.9
IP Rating
IP20
Dimensions
145 mm x 45 mm x 30 mm
Width
45 mm
Height
145 mm
Fitting Material
PC
Brand
Lyco
Dimmable
Yes

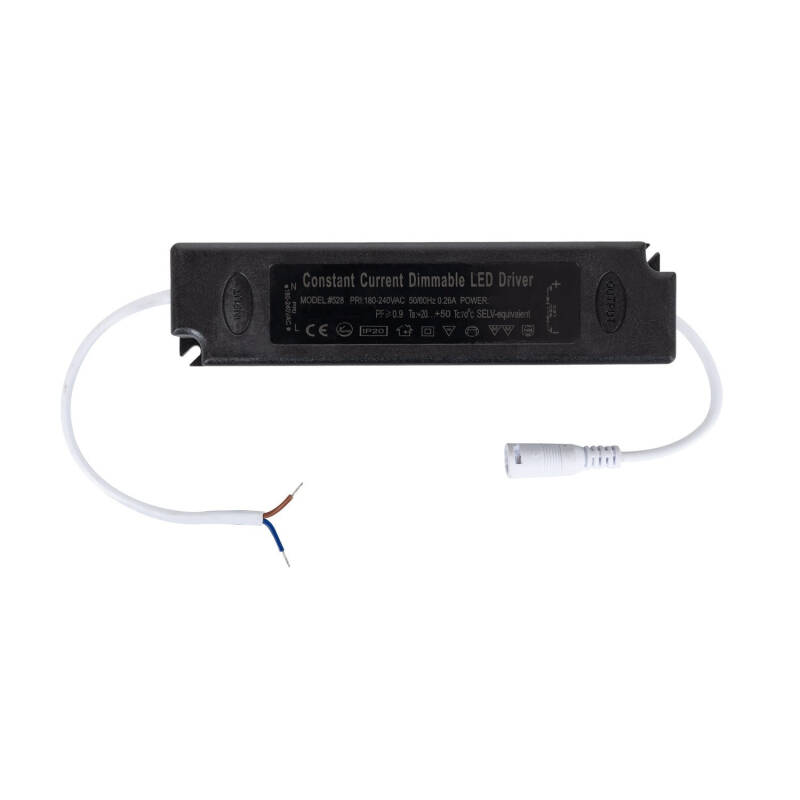

40W Dimmable Driver TRIAC 180-240V Output 36
Ref. Lyco: E11202
VAT not included £24.16
£28.99
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height145 mm
- Depth30 mm
- Width45 mm
Downloads
PDF Datasheet 598 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Type Of DimmingTRIAC
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage40 W
Product Data
- Product FormatLED Driver
- Product typeDriver
LED Features
- Power Factor0.9
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Driver Information
- Driver Intensity880 mA
- Driver Tension36 V - 55 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Materials and Finishes
- Fitting MaterialPC
Description
This Universal driver is specially designed for LED panels and recessed or surface mounted LED downlights because it incorporates a jack connector. An LED driver is responsible for transforming the alternating current from the mains into direct current capable of illuminating the LED chips. To know if a driver is going to work with our luminaire, PCB or panel you should consult the voltage and the output current of the driver.
Characteristics of the 40W 36-55V Output 180-240V 880mA TRIAC Dimmable Driver
This driver has a multi-voltage input. This means that it is able to withstand high and low line-voltage for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver constant voltage within a range allowing the same driver to be used for various applications with different current and voltage requirements. Once the driver is powered, the voltage will be automatically adjusted and the output voltage will be constant. The TRIAC dimmable driver must be used in conjunction with a TRIAC LED dimmer which will allow you to easily select the desired light intensity. Its power factor is very high, making it a very efficient driver.
