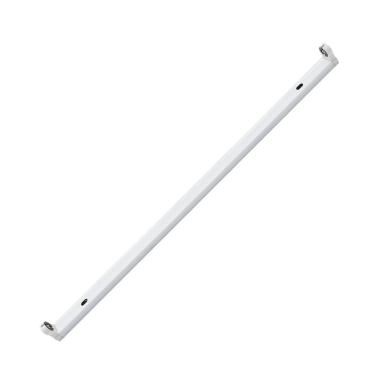

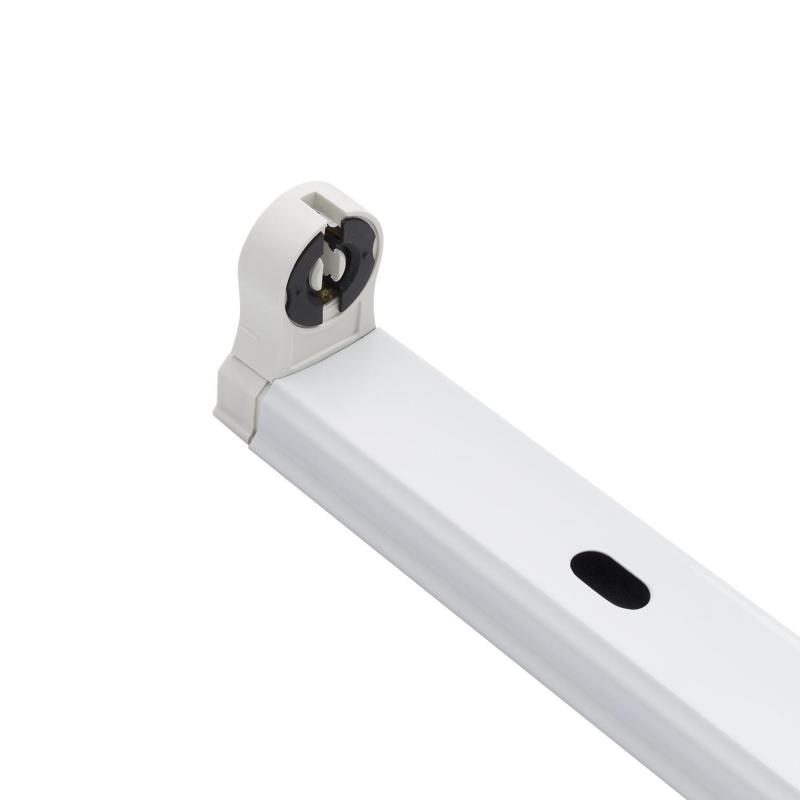

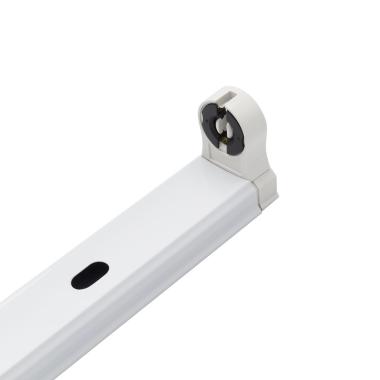

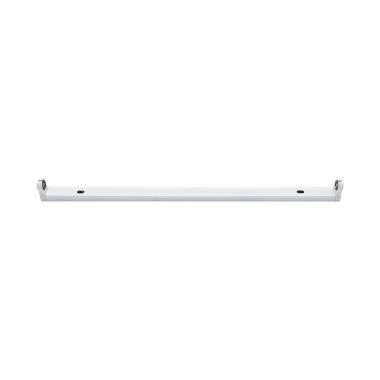

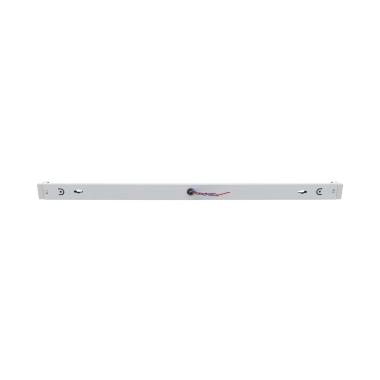

Lamp Holder for 1500mm T8 LED Tube
Ref. Lyco: E1208
Colour White
VAT not included £4.16
£4.99
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
24h Free Delivery on Orders Over £70
If you place your order today before 8:45 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 70.00 (incl. VAT).
Please note this delivery service is subject to stock availabilityFull conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height14 mm
- Depth1500 mm
- Tube Length150cm
- Width33 mm
Certificates and Stamps
Technical Specifications
Materials and Finishes
- ColourWhite
- Fitting MaterialAluminium
Electrical Features
- Frequency50-60 Hz
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Cap CodeT8
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
Product Information
- BrandLyco
- CertificatesCE, RoHS, VDE
- Guarantee5 years
- Product SeriesPolyBright
Product Data
- Product FormatLamp Holder
- Product typeTri-proof Accessories
Description
This lamp holder is designed for housing T8 LED Tubes with both single-side power and double-sided power. The lamp holder includes enough cable to provide the required pre-wiring. It's connected to the mains using Live and Neutral wires.
To power a one-side tubes, we'll have to keep in mind the serigraph the tube has at one end. This icon will indicate on which side we'll power the tube. We'll place the end of the tube that has a lamp holder icon, with red and brown cables. Then, we'll feed the lamp holder using the aforementioned wires (consult diagram).
To power double-sided tubes, we'll install the tube but we'll feed the power using the red and blue cables (consult diagram).
*To earth the installation, we'll have to join the earth wire to the lamp holder's frame.
