IP Rating IP55
Dimensions 85 mm x 85 mm x 45 mm
Width 85 mm
Height 85 mm
IP Rating
IP55
Dimensions
85 mm x 85 mm x 45 mm
Width
85 mm
Height
85 mm
IK Protection
IK07
Fitting Material
PC
Brand
Lyco

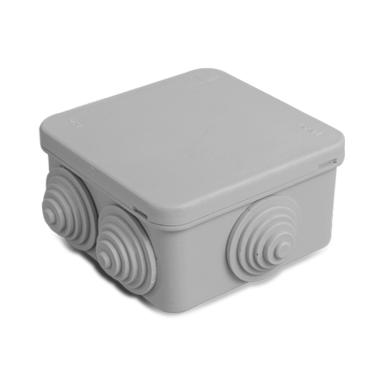

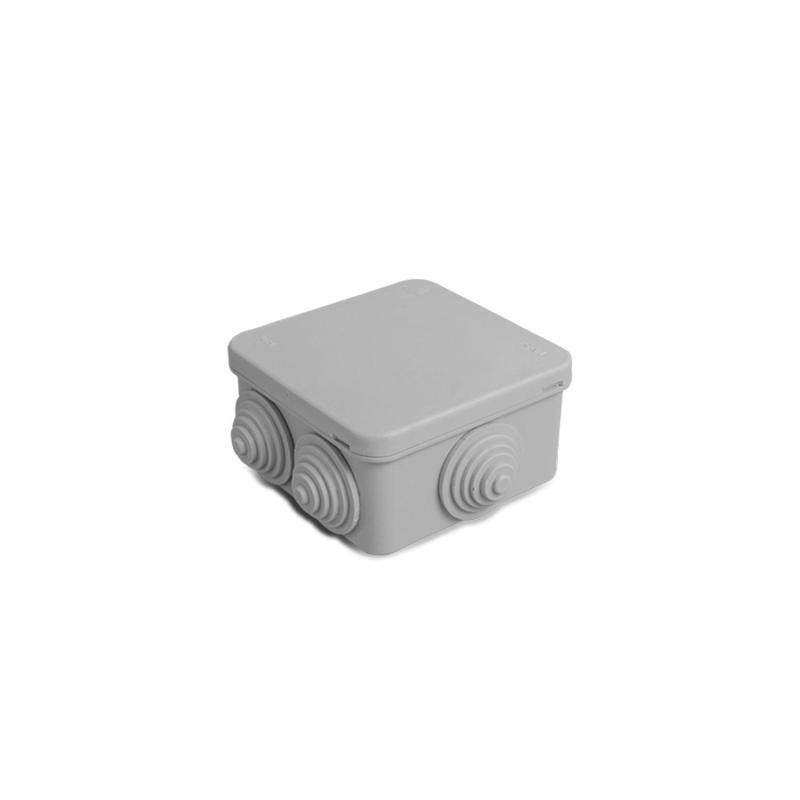

Watertight Junction and Derivation Box 85 x 85 x 45mm IP54
Ref. Lyco: E11066
EAN 13: 8445044011186
VAT not included £1.66
£1.99
Colour Grey
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

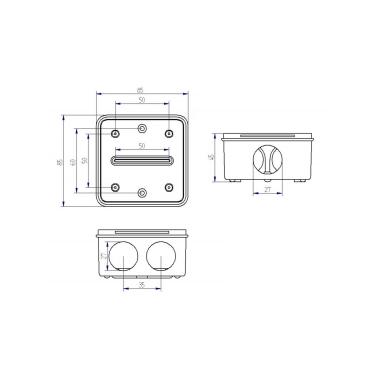

Dimensions
- Depth45 mm
- Height85 mm
- Width85 mm
Downloads
PDF Datasheet 4510_10595 EN
Certificates and Stamps
Technical Specifications
Mechanical Features
- IK ProtectionIK07Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationSurface
- IP RatingIP55The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesSerie Estanca
Product Data
- Product FormatAccessory
- Product typeJunction Boxes
Materials and Finishes
- ColourGrey
- Fitting MaterialPC
Description
This IP65 Waterproof Surface Junction Box 85x85x4mm with a pressure lid is perfect for installation in any sort of environment.
It features 7x cones with a maximum size of 25mm that allow us to make easy and safe connections. Made using UNE-EN 60670-1:2006 and UNE 20324:1993. This Waterproof Surface Junction Box 85x85x45mm with a pressure lid, and is designed as a practical and long-lasting element. It has IP55 Protection and is has an IK07 impact resistance. It's also flame-resistant (incandescent filament at 650º). 70ºC ball-pressure. Working temperature: -25ºC (+60ºC).
This Waterproof Surface Junction Box 85x85x45mm with a pressure lid is available here at LEDKIA, our online lighting shop, allows us to maintain all sorts of perfectly protected electrical derivations.
