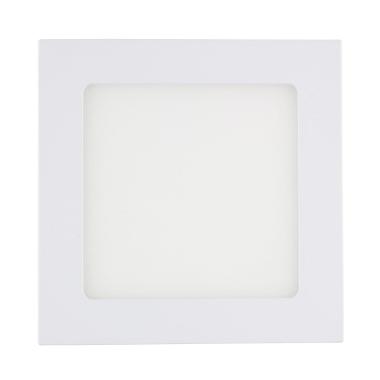

Image of UltraSlim Square 20W 5000K LED Downlight Cutout 215x215mm

UltraSlim Square 20W Cool Daylight 6000K LED Downlight Cutout 215x215mm - White

Download technical datasheet

Ref. Lyco: 63038

Colour Temperature Daylight 6000K

£9.49

40% Off

VAT not included £4.74

£5.69

Energetic efficiency
Product information sheet

IN STOCK - Delivered in 1 to 2 working days

5 reviews stars(1)

5 out of 5 stars

Reviews
    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • Want your items fast?

      Check our delivery cut-off times below:


      Mon – Thu: Order before 8:45 PM for 24/48h delivery.


      Friday: Order before 3:00 PM for 24/48h delivery.


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

Dimensions

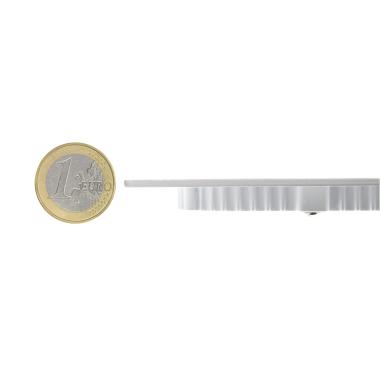

  • Height20 mm
  • Cut Out Dimensions215 mm x 215 mm
  • Depth235 mm
  • Width235 mm

Downloads

  • pdf file

    PDF Datasheet 401_738 EN

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • DimmableNo
    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Light SourceOSRAM SMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage85 V - 265 V
    • Replaceable Light SourceNo
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage20 W

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialAluminium
    • Type Of LensOpaal

  • LED Features

    • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
      Beam Angle120º
    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature6000K
    • Low-glare products offer more comfortable lighting, suitable for extended use.
      Glare FactorUGR <21
    • Light ColourDaylight
    • Lumen2000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency100 lm/W

  • Mechanical Features

    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalNo
    • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
      Fire RatedNo
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK05
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • ShapeSquare

  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years
    • Product SeriesSuperSlim

  • Product Data

    • Product FormatFixed Downlight
    • Product typeLED Downlight

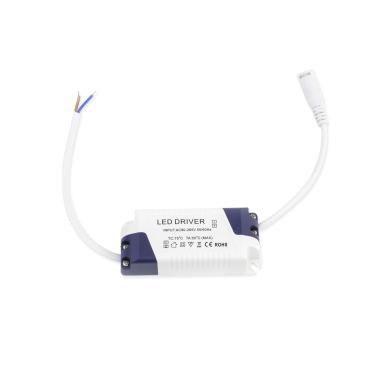

  • Driver Information

    • Driver Intensity500 mA
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension25 V-42 V
Outdoor Lights

Key Features

  • UltraSlim square LED panel in white finish with frosted diffuser. Designed for use in a wide range of commercial settings where recessed grid ceiling lighting is required
  • Colour: White, Frosted
  • Material: Aluminium, Polycarbonate
  • Wattage: 20W equivalent to 150W halogen.
  • Light Colour: Daylight (6000K).
  • Average Life Expectancy: 40,000 Hours hours.
  • Guarantee: 3 years guarantee.
  • Dimmable: Non-Dimmable.
  • IP Rating: IP20, Class II
  • Dimensions:
    Overall - H 20 x W 235 x D 235mm

Description

The 20W Square SuperSlim LED Downlight with 215x215 mm Cut Out  is defined by offering maximum energy efficiency with a minimal size. Characteristics of the LED 20W square SuperSlim panel This LED luminaire supports transitions in input voltage from 85V to 265V in alternating current. With performance comparable to that of a luminaire of up to 150W, it offers great savings in light consumption. Thanks to its aluminium heat sink, heat is excellently dissipated. The 20W Square SuperSlim LED Downlight with 215x215 mm Cut Out is designed for use in indoor spaces, but can operate in areas with a temperature range from -20ºC to 45ºC.
