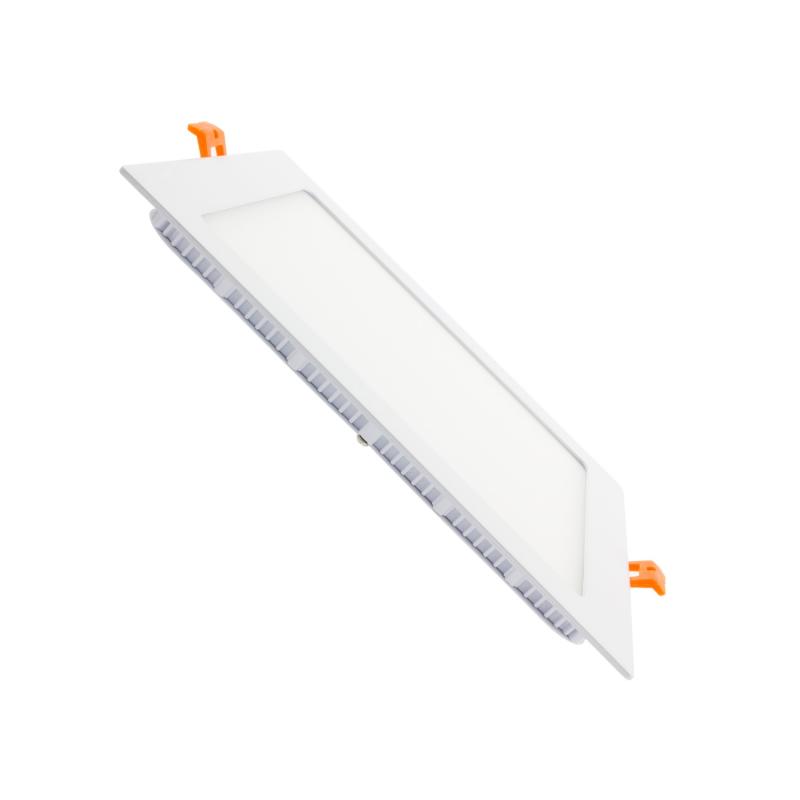

UltraSlim Square 20W Daylight 5000K LED Downlight Cutout 215x215mm - White
Ref. Lyco: E13123
Colour Temperature Daylight 5000K
(1)5 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height20 mm
- Cut Out Dimensions215 mm x 215 mm
- Depth235 mm
- Width235 mm
Downloads
PDF Datasheet 401_204954 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceOSRAM SMD2835
- Nominal Voltage85 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceNo
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage20 W
Materials and Finishes
- ColourWhite
- Fitting MaterialAluminium
- Type Of LensOpaal
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <21Low-glare products offer more comfortable lighting, suitable for extended use.
- Light ColourDaylight
- Luminous Efficiency100 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Mechanical Features
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeSquare
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesSuperSlim
Product Data
- Product FormatFixed Downlight
- Product typeLED Downlight
Driver Information
- Driver Intensity500 mA
- Driver Tension25 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Key Features
- Colour: White, Frosted
- Material: Aluminium, Polycarbonate
- Wattage: 20W
- Light Colour: Daylight (5000K).
- Average Life Expectancy: 40,000 Hours hours.
- Guarantee: 3 years guarantee.
- Dimmable: Non-Dimmable.
- IP Rating: IP20, Class II
- Dimensions:
Overall - H 20 x W 235mm
