Wattage 24 W
Voltage Range 220-240V AC
Lumen 2400 lm
Cut Out Dimensions Ø275 mm
Wattage
24 W
Voltage Range
220-240V AC
Lumen
2400 lm
Cut Out Dimensions
Ø275 mm
Diameter
290 mm
Glare Factor
UGR <21
IP Rating
IP20
Battery Operated
No
Dimensions
20 mm x Ø290 mm
Height
20 mm
IK Protection
IK05
Luminous Efficiency
100 lm/W

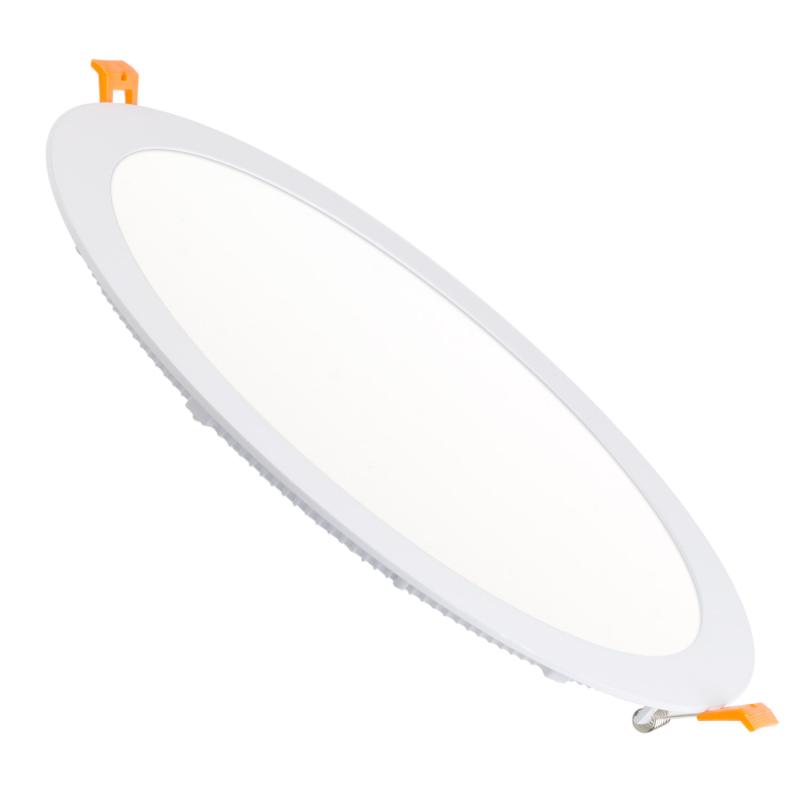

UltraSlim Round 24W Cool White LED Downlight Cutout 280mm - White
Ref. Lyco: E1756
Ref. Stock: 1169
(1)5 out of 5 stars
Premium range
£19.99VAT not included £6.66
£7.99
Colour Temperature Cool White 4000K
In Stock, Delivered in 8 to 14 working days
(1)5 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height20 mm
- Diameter290 mm
- Cut Out DimensionsØ275 mm
Downloads
PDF Datasheet 400_1169 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceOSRAM SMD2835
- Nominal Voltage85 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceNo
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage24 W
Materials and Finishes
- ColourWhite
- Fitting MaterialAluminium
- IncludesDriver
- Type Of LensOpaal
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <21Low-glare products offer more comfortable lighting, suitable for extended use.
- Light ColourCool White
- Lumen2400 lm
- Luminous Efficiency100 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Mechanical Features
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeCircular
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesSuperSlim
Product Data
- Product FormatFixed Downlight
- Product typeLED Downlight
Driver Information
- Driver Intensity550 mA
- Driver Tension25 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Description
The Round 24W UltraSlim LED Panel incorporates 2835 SMD LEDs that have excellent performance and energy efficiency. It provides an impressive 2,000 lumens that allow us to reduce consumption by up to 80% compared to traditional lighting.
The installation of this type of LED lighting element is very simple. All we have to do is drill a hole in the surface where it will be embedded, leaving a 280mm diameter hole.
Uses of the Round 24W UltraSlim LED Panel
As it has a very wide beam opening angle, it is used as a general lighting device in interior spaces. Its resistance and durability allow it to be used outside the domestic environment, where long periods of lighting are required.
Enjoying quality lighting at an excellent price has never been easier. Buy now the Round 24W UltraSlim LED Panel available in various colour temperatures to choose from.
