Wattage 3 W
Voltage Range 220-240V AC
Lumen 200 lm
Cut Out Dimensions 246 mm x 84 mm
Wattage
3 W
Voltage Range
220-240V AC
Lumen
200 lm
Cut Out Dimensions
246 mm x 84 mm
Number of LEDs
6
IP Rating
IP20
Battery Operated
Yes
Dimensions
40 mm x 106 mm x 265 mm
Width
106 mm
Height
40 mm
Battery Capacity
600 mAh
Autonomy
3 h
Daylight 3W Maintained/Non-Maintained LED Emergency Bulkhead with Ceiling Kit - White
Ref. Lyco: E1683
Premium range
£23.99VAT not included £16.66
£19.99
Wattage 3 W
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Width106 mm
- Cut Out Dimensions246 mm x 84 mm
- Depth265 mm
- Height40 mm
Downloads
PDF Datasheet 34170_72393 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceSMD5730
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage3 W
Mechanical Features
- InstallationRecessed, Surface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Battery Information
- Autonomy3 hBattery life of the luminaire at full charge, without wear, and at medium light level.
- Battery Capacity600 mAh
- Battery Voltage3.6 V
- Number Of Batteries1
- Type Of BatteryNi-Cd
LED Features
- Colour Temperature6000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Light ColourDaylight
- Lumen200 lm
- Number of LEDs6
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesBulk
Product Data
- Product FormatBulkhead
- Product typeEmergency Lights
Materials and Finishes
- ColourWhite
- Fitting MaterialABS Plastic
Emergency Lighting Information
- Emergency Power3 W
Description
The 3W LED emergency light with ceiling kit offers path lighting when there is a power cut.
LED emergency lights are a key element for the security of any building. With the lumens offered by this luminaire there is more than enough light provided for a safe evacuation, even if there is a power outage and natural light is not available.

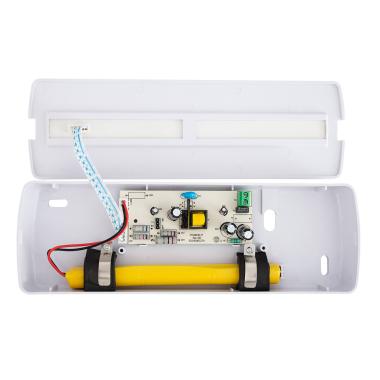

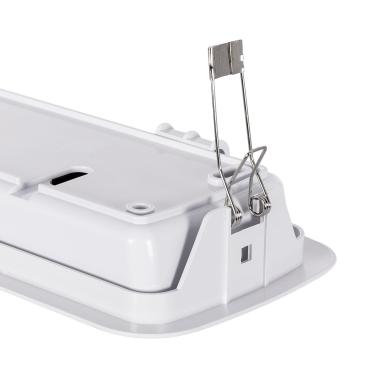

It features 6 integrated SMD5730 LEDs with great efficiency and durability. The 3W LED emergency light includes a ceiling kit for recessed installation with great ease. It includes a 3.6V 0.6Ah NiCd battery that provides up to 3 hours of autonomy. It has a power indicator (green) and a charge indicator (red).
The LED emergency light allows both permanent and non-permanent lighting. This emergency light is pre-assembled as a non-permanent light. By modifying the position of the PCB connector you can select the operation mode of this emergency light.
Whatever happens, don't stay in the dark with the 3W LED emergency light and ceiling kit from LEDKIA, our online lighting store.
* NO permanent light with permanent light option.
