Wattage 18 W
Voltage Range 220-240V AC
Lumen 1800 lm
Cut Out Dimensions 205 mm x 205 mm
Wattage
18 W
Voltage Range
220-240V AC
Lumen
1800 lm
Cut Out Dimensions
205 mm x 205 mm
Glare Factor
UGR <21
IP Rating
IP20
Battery Operated
No
Dimensions
20 mm x 220 mm x 220 mm
Width
220 mm
Height
20 mm
IK Protection
IK05
Luminous Efficiency
100 lm/W

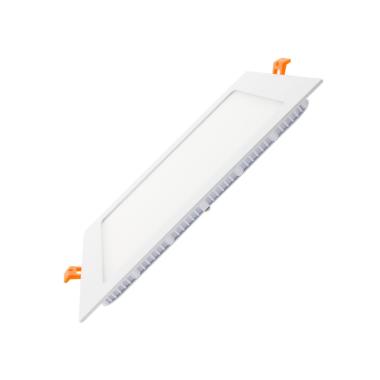

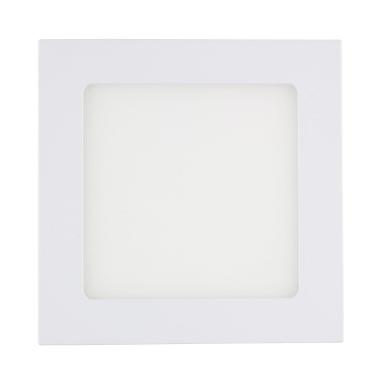

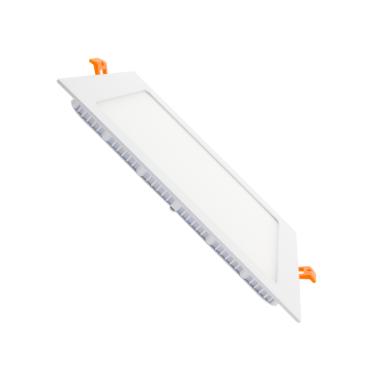

UltraSlim Square 18W Cool White LED Downlight Cutout 205x205mm - White
Ref. Lyco: E1772
Ref. Stock: 461
VAT not included £5.83
£7.00
Colour Temperature Cool White 4000K
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height20 mm
- Cut Out Dimensions205 mm x 205 mm
- Depth220 mm
- Width220 mm
Downloads
PDF Datasheet 222_461 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceOSRAM SMD2835
- Nominal Voltage170 V - 265 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Replaceable Light SourceNo
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage18 W
Materials and Finishes
- ColourWhite
- Fitting MaterialPC, Aluminium
- IncludesDriver
- Type Of LensOpaal
LED Features
- Beam Angle120ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <21Low-glare products offer more comfortable lighting, suitable for extended use.
- Light ColourCool White
- Lumen1800 lm
- Luminous Efficiency100 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
Mechanical Features
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- IK ProtectionIK05Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- InstallationRecessed
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeSquare
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesSuperSlim
Product Data
- Product FormatFixed Downlight
- Product typeLED Downlight
Driver Information
- Driver Intensity400 mA
- Driver Tension30 V-38 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
Description
The 18W Square SuperSlim LED Downlight with 205x205 mm Cut-Out is extremely thin and has an innovative, modern design.
Features of the 18W Square SuperSlim LED Downlight with 205x205 mm Cut-Out
Its 2835 SMD LEDs offer a brightness of 1400lm, which is equivalent to 130W of halogen lighting. The light it emits is distributed at an angle of 120º which makes it perfect as a general lighting source. It works with a voltage of 220-240V AC, but is prepared to withstand variations between 85-265V AC.

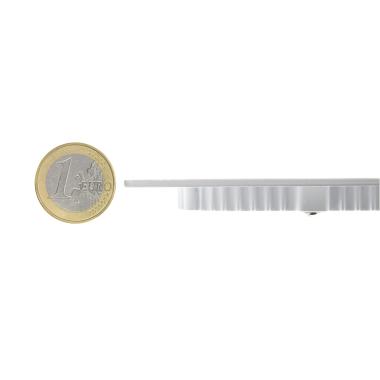

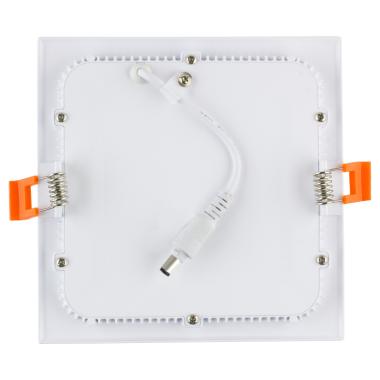

The 18W Square SuperSlim LED Downlight with 205x205 mm Cut-Out has an aluminium dissipater included which contributes to the minimum heat emission from this LED downlight. Furthermore, being so thin, it can be installed in false ceilings even where larger luminaires could not be used.
The LED Panels at our online LED lighting shop have a life span of 30,000 hours. Sign up now for energy efficiency with Ledkia.
