Diameter 24 mm
IP Rating IP68
Dimensions 65 mm x Ø24 mm
Height 65 mm
Diameter
24 mm
IP Rating
IP68
Dimensions
65 mm x Ø24 mm
Height
65 mm
Brand
Lyco
Current Intensity
24 A
Working Temperature
-40 °C~+105 °C
Cable Connector 3 Contacts Type T 0.5-2.5mm² IP68
Ref. Lyco: E10902
VAT not included £7.91
£9.49
Colour Black
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Diameter24 mm
- Height65 mm
Downloads
PDF Datasheet 20779_41650 EN
Certificates and Stamps
Technical Specifications
Mechanical Features
- IP RatingIP68The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- Working Temperature-40 °C~+105 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Data
- Product FormatConnectors
- Product typeConnectors
Electrical Features
- Current Intensity24 A
- Maximum Voltage400 V
Product Information
- BrandLyco
- CertificatesCE, RoHS, TÜV
- Guarantee3 years
Materials and Finishes
- ColourBlack
Description

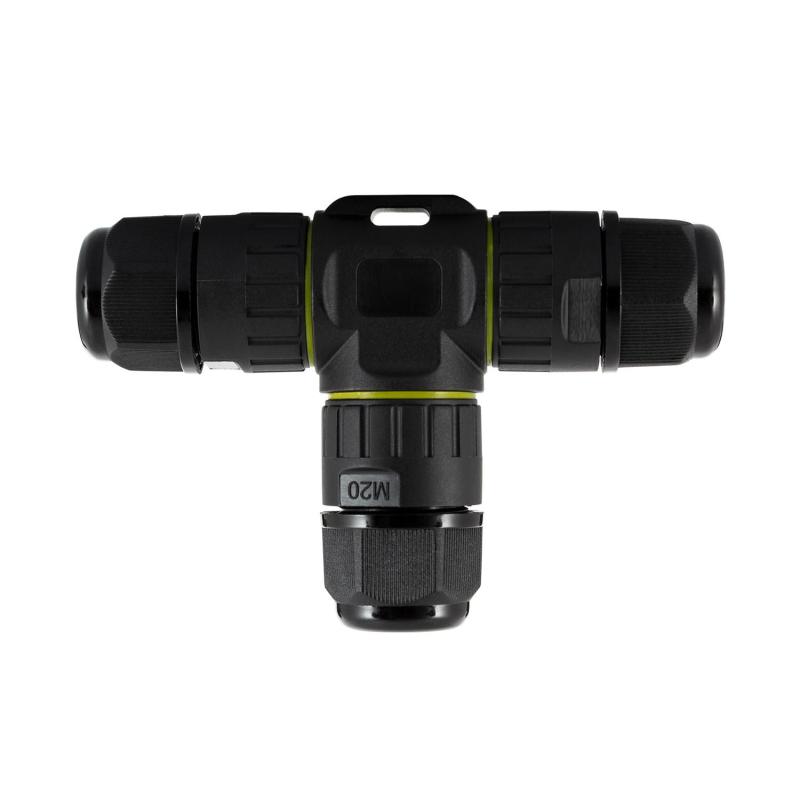

This Waterproof T Type Connector Cable 3 Contacts 0.5-2.5 mm² IP68 is optimal for splicing or connecting electrical wiring in those areas where conditions require a high degree of sealing and resistance to dust, moisture and water.

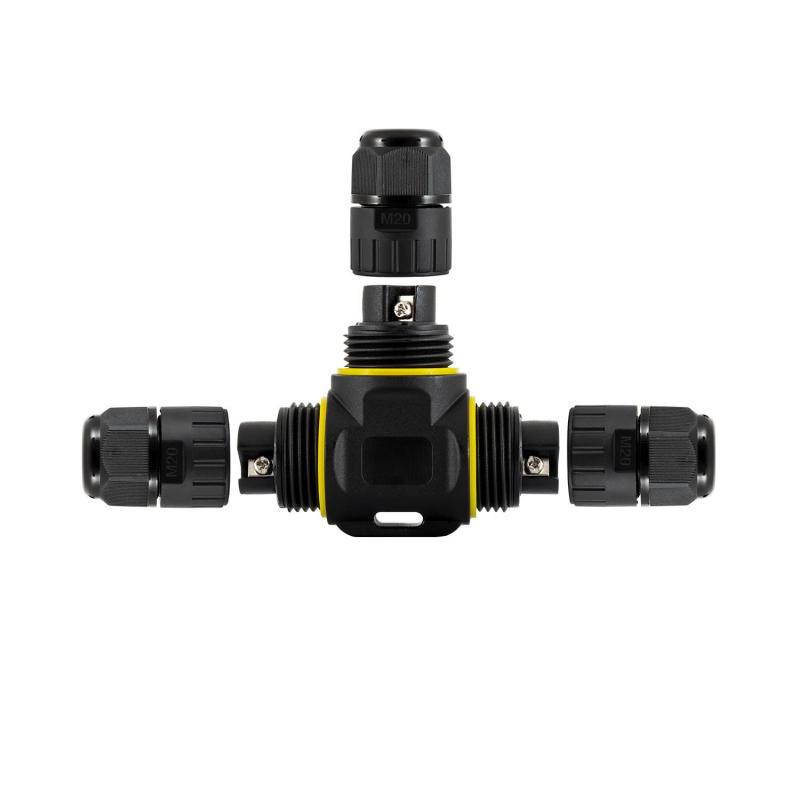

It has internal terminals for the connection of 3 phases (Live, Neutral and Earth), with the admissible cable sections ranging from 0.5 mm² to 2.5 mm².
This Connector permits a maximum of 24 A of Intensity and 400 V AC.
*The metric of the screw threads is 20mm
