CANOVA CCT 0-10V Low Bay 150Llm/W

Ref. Lyco: NLY0016845

Wattage 80 W

Colour Temperature Selectable (Cool - Daylight) 4000K - 5000K - 5700K

    VAT not included £108.33

    £130.00

    Energetic efficiency
    Product information sheet

    Currently out of stock - Back in Stock Soon

      30 Day Credit Terms

      • 30 Day Return

        Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


        For more information view our Returns policy.

      • Want your items fast?

        Check our delivery cut-off times below:


        Mon – Thu: Order before 8:45 PM for 24/48h delivery.


        Friday: Order before 3:00 PM for 24/48h delivery.


        Full conditions here: Delivery methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

      • Up to 5 year warranty

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.

    Dimensions

    • Height165 mm
    • Diameter321 mm

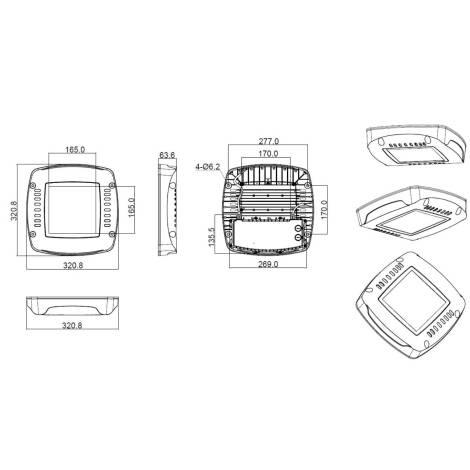

    Scheme image

    Downloads

    • pdf file

      Specifications_DriverSOSEN

    Certificates and Stamps

    CertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • DimmableYes
      • Electrical Insulation ClassI
      • Frequency50-60 Hz
      • Light SourceLUMILEDS SMD2835
      • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
        Nominal Voltage120 V - 277 V
      • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
        Overvoltage Protection6 kV
      • Type Of Dimming0-10 V
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC
      • Wattage80 W

    • Mechanical Features

      • Ability to move or rotate the spotlight to direct the light as desired.
        DirectionalNo
      • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
        IK ProtectionIK08
      • InstallationSurface
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP65
      • LocationOutdoor
      • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
        Optic120º
      • SupportSurface

    • Product Information

      • BrandLyco
      • CertificatesCE, RoHS, EMC
      • Guarantee5 years
      • Product SeriesCanopy

    • LED Features

      • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
        Colour Rendering Index70
      • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
        Colour Temperature4000K - 5000K - 5700K
      • Light ColourSelectable (Cool - Daylight)
      • Lumen12000 lm
      • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
        Luminous Efficiency150 lm/W
      • Number of LEDs360
      • Power Factor0.9

    • Product Data

      • Product FormatLow Bay Lighting
      • Product typeIndustrial Highbays

    • Materials and Finishes

      • ColourWhite
      • Fitting MaterialDie Cast Aluminium, Glass
      • Includessafety cable, Driver

    • Driver Information

      • Driver Intensity0.19 A - 0.75 A
      • Driver Power34.2 W-150 W
      • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
        Driver Tension180 V - 300 V
      • Type Of Driver0-10V
    Outdoor Lights

    Key Features

    LED canopy luminaire designed for petrol station forecourts and covered outdoor areas, delivering 12,000 lumens at 80 W with high luminous efficacy of 150 lm/W. Features selectable colour temperatures of 4000K, 5000K, and 5700K, providing neutral to cool daylight options suitable for industrial environments. The luminaire incorporates 360 LUMILEDS SMD2835 LEDs with a colour rendering index (CRI) of 70, ensuring adequate colour fidelity for safety and operational tasks. Optics provide a wide 120° beam angle for uniform illumination, minimising shadows and enhancing visibility. Constructed from robust die-cast aluminium with glass components, it offers IP65 ingress protection and IK08 impact resistance, ensuring durability and reliability in harsh outdoor conditions. Equipped with a SOSEN 0-10V dimmable driver, supporting input voltages from 180 V to 300 V and delivering driver power between 34.2 W and 150 W, with replaceable driver for ease of maintenance. The product operates reliably within an ambient temperature range of -20 °C to +45 °C and includes overvoltage protection up to 6 kV. Designed for surface mounting with ceiling U-bracket installation, it is engineered for continuous operation with encapsulation and thermal management optimised for industrial applications. Certified to CE, EMC, and RoHS standards, this LED canopy light ensures high performance, energy efficiency, and long service life of up to 100,000 hours, making it ideal for demanding professional environments requiring robust, efficient, and consistent lighting solutions.
