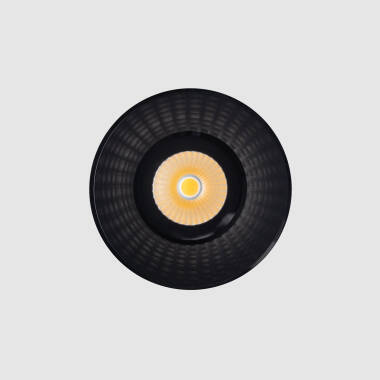

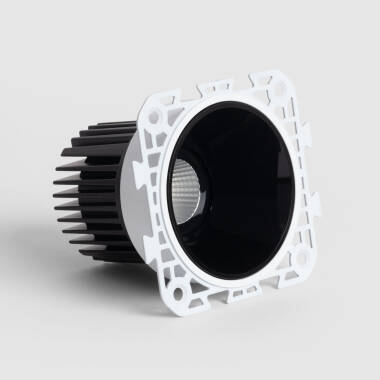

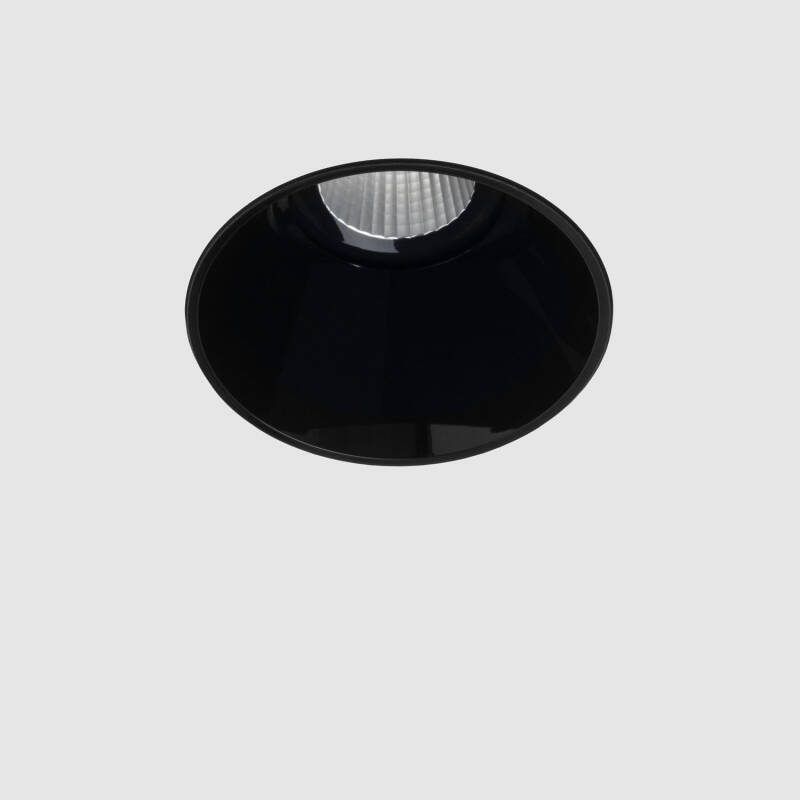

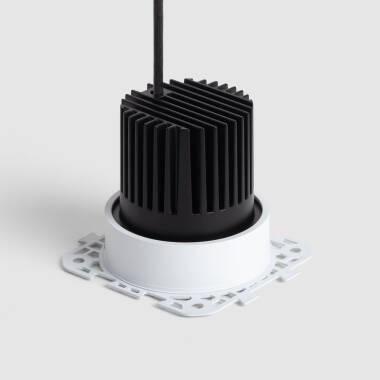

ECLIPSE L LED Downlight Ø68 mm Cut Out 10W Warm White 3000K Standard Black
Ref. Lyco: NLY0016360
Installation type Integrated
Colour Black
Wattage 10 W
Colour Temperature 3000K
Type Of Driver Standard
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

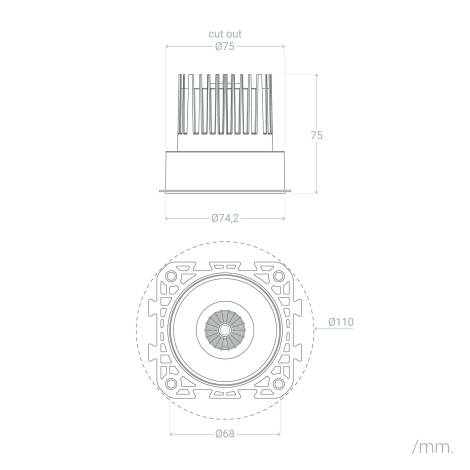

Dimensions
- Diameter74.2 mm
- Height75 mm
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableNo
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Light SourceCITILED COB
- No. Of Lights1
- Replaceable Light SourceYes
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage10 W
Product Information
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
- Product SeriesEclipse
LED Features
- Beam Angle38ºMeasures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
- Colour Rendering Index97Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature3000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Glare FactorUGR <3Low-glare products offer more comfortable lighting, suitable for extended use.
- Light ColourWarm White
- Lumen890 lm
- Luminous Efficiency84 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Power Factor0.96
Product Data
- Product FormatFixed Downlight
- Product typeLED Downlight
Mechanical Features
- DirectionalNoAbility to move or rotate the spotlight to direct the light as desired.
- Fire RatedNoIndicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
- InstallationIntegrated, False ceiling
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- ShapeCircular
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium
- IncludesDriver
Driver Information
- Driver Intensity300 mA
- Driver Power12.6 W
- Driver Tension25 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of DriverStandard
