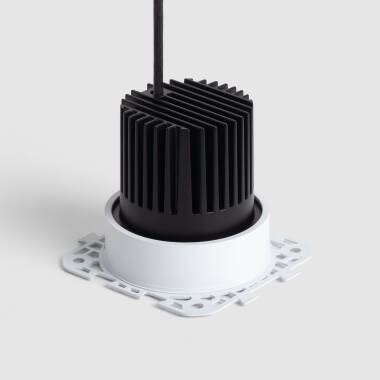

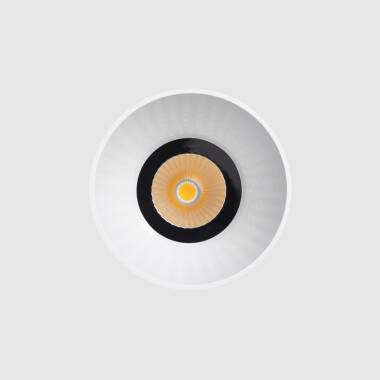

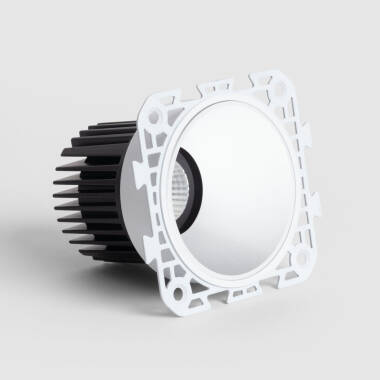

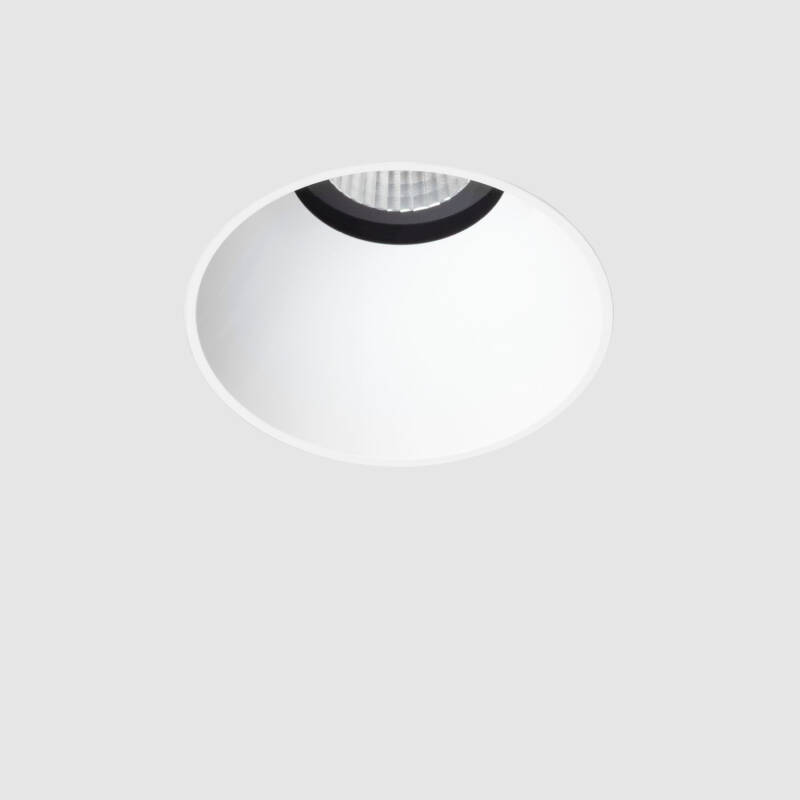

ECLIPSE L LED Downlight Ø68 mm Cut Out Warm White 3000K Standard 10W White

Ref. Lyco: NLY0016389

Installation type Integrated

Colour White

Wattage 10 W

Colour Temperature 3000K

Type Of Driver Standard

    VAT not included £66.66

    £79.99

    Energetic efficiency
    Product information sheet

    IN STOCK - Delivered in 1 to 2 working days

      30 Day Credit Terms

      • 30 Day Return

        Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


        For more information view our Returns policy.

      • Want your items fast?

        Check our delivery cut-off times below:


        Mon – Thu: Order before 8:45 PM for 24/48h delivery.


        Friday: Order before 3:00 PM for 24/48h delivery.


        Full conditions here: Delivery methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

      • Up to 5 year warranty

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.

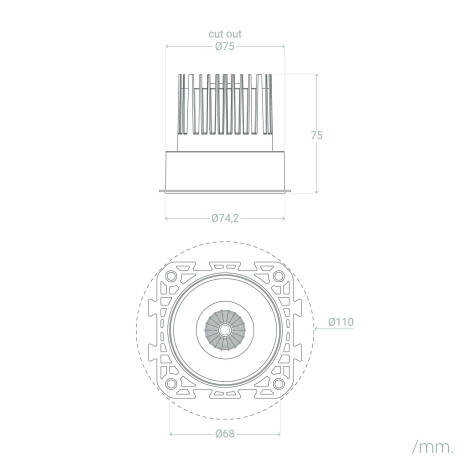

    Dimensions

    • Diameter74.2 mm
    • Height75 mm
    Scheme image

    Certificates and Stamps

    CertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • DimmableNo
      • Electrical Insulation ClassII
      • Frequency50-60 Hz
      • Light SourceCITILED COB
      • No. Of Lights1
      • Replaceable Light SourceYes
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC
      • Wattage10 W

    • Product Information

      • CertificatesCE, RoHS, UKCA
      • Guarantee3 years
      • Product SeriesEclipse

    • LED Features

      • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
        Beam Angle38º
      • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
        Colour Rendering Index97
      • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
        Colour Temperature3000K
      • Low-glare products offer more comfortable lighting, suitable for extended use.
        Glare FactorUGR <3
      • Light ColourWarm White
      • Lumen890 lm
      • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
        Luminous Efficiency84 lm/W
      • Power Factor0.96

    • Product Data

      • Product FormatFixed Downlight
      • Product typeLED Downlight

    • Mechanical Features

      • Ability to move or rotate the spotlight to direct the light as desired.
        DirectionalNo
      • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
        Fire RatedNo
      • InstallationIntegrated, False ceiling
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP20
      • LocationIndoor
      • ShapeCircular

    • Materials and Finishes

      • ColourWhite
      • Fitting MaterialAluminium
      • IncludesDriver

    • Driver Information

      • Driver Intensity300 mA
      • Driver Power12.6 W
      • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
        Driver Tension25 V-42 V
      • Type Of DriverStandard
    Outdoor Lights

    Key Features

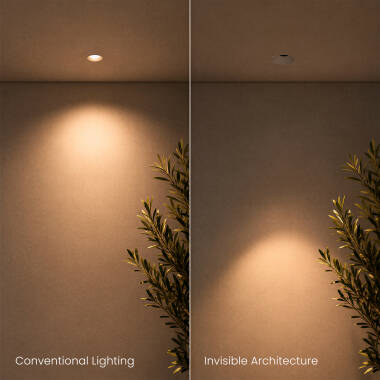

    ECLIPSE L LED Downlight features a 10W power consumption with a warm white 3000K colour temperature, delivering 890 lumens at a high luminous efficiency of 84 lm/W. It has a compact design with dimensions of 75 mm height and 74.2 mm diameter, and a cut-out size of Ø68 mm. The fitting is made of aluminium with a circular shape and includes a standard driver (model LF-GIF013YS) with a voltage range of 220-240V AC and a power factor of 0.96. The downlight offers excellent visual comfort with a glare factor of UGR <3 and a high colour rendering index of 97. It is designed for indoor use, suitable for false ceiling integrated installation, and comes with an IP20 rating. The product is non-dimmable, not directional, and is part of the Eclipse series featuring Darklight technology for advanced optical control that eliminates direct visibility of the light source. It includes CE, RoHS, and UKCA certifications and has a 3-year guarantee.
