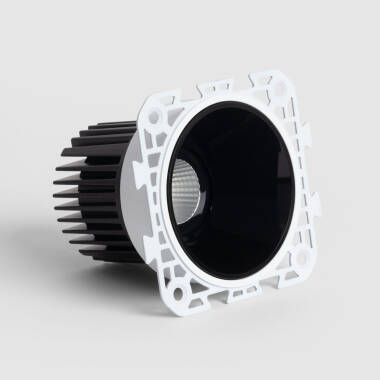

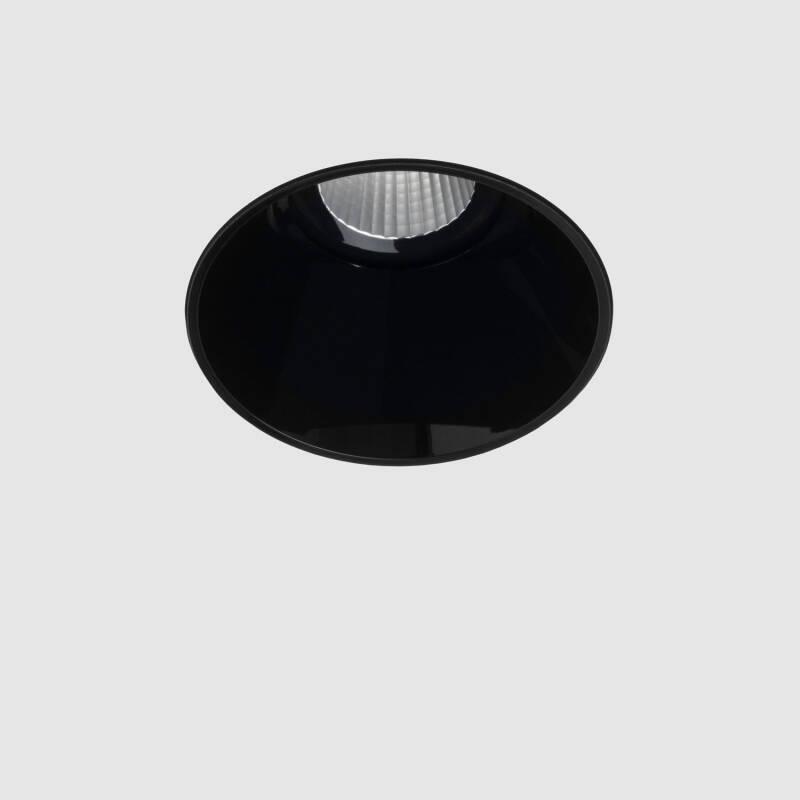

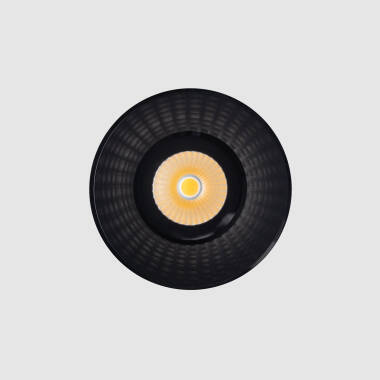

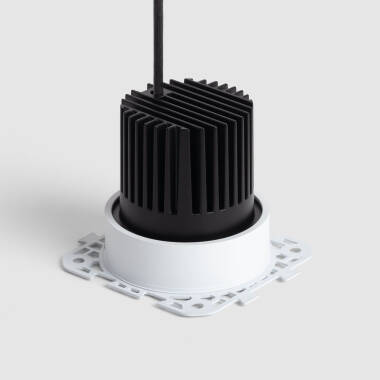

Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
Image of ECLIPSE L LED Downlight Ø68 mm Cut Out
Image of ECLIPSE L LED Downlight Ø68 mm Cut Out

ECLIPSE L LED Downlight Ø68 mm Cut Out Warm White 2700K Standard 10W Black Circular

Ref. Lyco: NLY0016366

Installation type Integrated

Colour Black

Wattage 10 W

Colour Temperature 2700K

Type Of Driver Standard

    VAT not included £66.66

    £79.99

    Energetic efficiency
    Product information sheet

    Delivered in 8 to 14 working days

      30 Day Credit Terms

      • 30 Day Return

        Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


        For more information view our Returns policy.

      • Want your items fast?

        Check our delivery cut-off times below:


        Mon – Thu: Order before 8:45 PM for 24/48h delivery.


        Friday: Order before 3:00 PM for 24/48h delivery.


        Full conditions here: Delivery methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

      • Up to 5 year warranty

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.

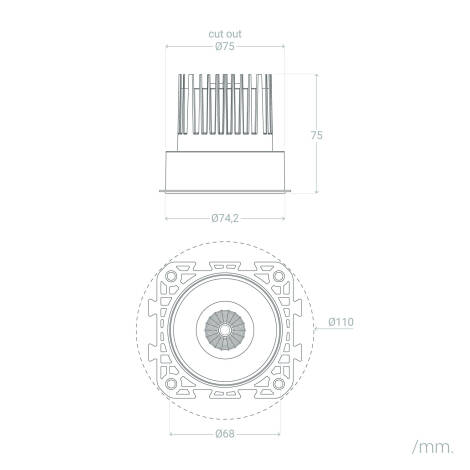

    Dimensions

    • Diameter74.2 mm
    • Height75 mm
    Scheme image

    Certificates and Stamps

    CertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • DimmableNo
      • Electrical Insulation ClassII
      • Frequency50-60 Hz
      • Light SourceCITILED COB
      • No. Of Lights1
      • Replaceable Light SourceYes
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC
      • Wattage10 W

    • Product Information

      • CertificatesCE, RoHS, UKCA
      • Guarantee3 years
      • Product SeriesEclipse

    • LED Features

      • Measures in degrees how light spreads from the source. A wide angle covers more area, while a narrow one is ideal for highlighting details.
        Beam Angle38º
      • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
        Colour Rendering Index97
      • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
        Colour Temperature2700K
      • Low-glare products offer more comfortable lighting, suitable for extended use.
        Glare FactorUGR <3
      • Light ColourWarm White
      • Lumen890 lm
      • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
        Luminous Efficiency84 lm/W
      • Power Factor0.96

    • Product Data

      • Product FormatFixed Downlight
      • Product typeLED Downlight

    • Mechanical Features

      • Ability to move or rotate the spotlight to direct the light as desired.
        DirectionalNo
      • Indicates whether the product or its materials are fire-resistant, enhancing safety in high-temperature or flame-risk areas.
        Fire RatedNo
      • InstallationIntegrated, False ceiling
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP20
      • LocationIndoor
      • ShapeCircular

    • Materials and Finishes

      • ColourBlack
      • Fitting MaterialAluminium
      • IncludesDriver

    • Driver Information

      • Driver Intensity300 mA
      • Driver Power12.6 W
      • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
        Driver Tension25 V-42 V
      • Type Of DriverStandard
    Outdoor Lights

    Key Features

    - 10W LED downlight with a 68 mm cut-out diameter - Warm white light at 2700K colour temperature - High luminous efficiency of 84 lumens per watt, delivering 890 lumens - Circular aluminium fitting with a diameter of 74.2 mm and height of 75 mm - Equipped with CITILED COB light source for superior light quality - Glare factor UGR <3 for excellent visual comfort - Electrical insulation class II and IP20 rating suitable for indoor use - Includes a standard driver (model LF-GIF013YS) with 25-42V operating voltage - Non-dimmable fixed downlight designed for integrated false ceiling installation - Part of the Eclipse range featuring Darklight technology for glare-free lighting - Colour rendering index (CRI) of 97 for accurate colour representation - Certified with CE, RoHS, and UKCA marks ensuring quality and safety - 3-year guarantee and compatible with 220-240V AC mains supply - Ideal for commercial and hospitality environments such as offices, hotels, and retail spaces
