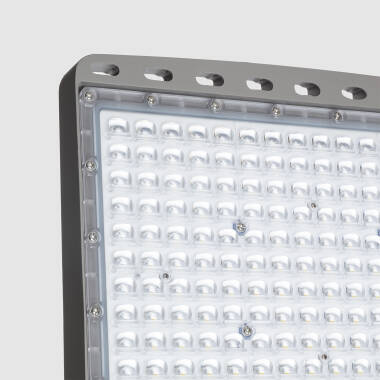

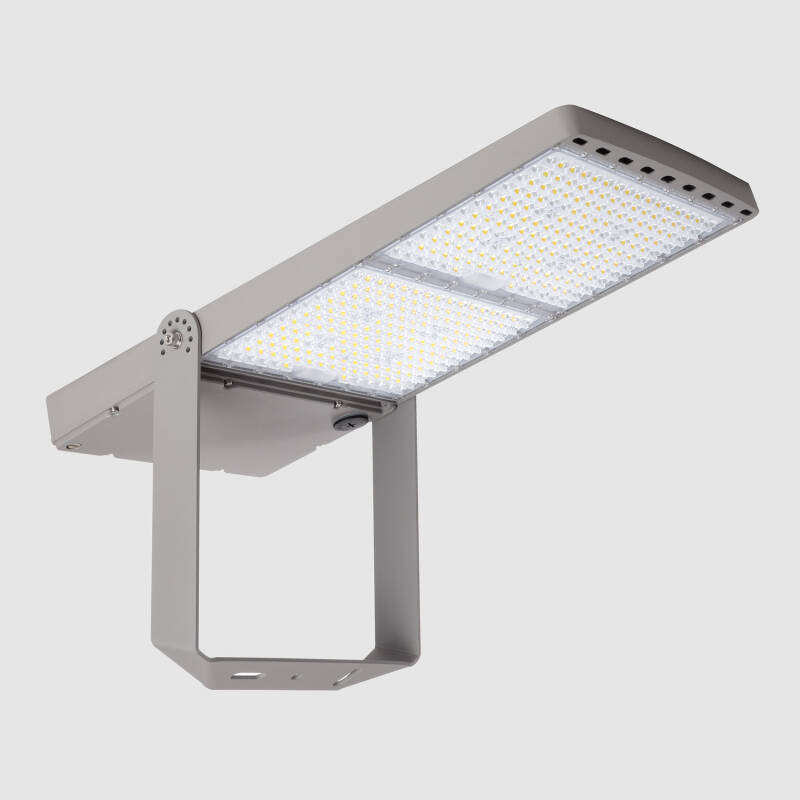

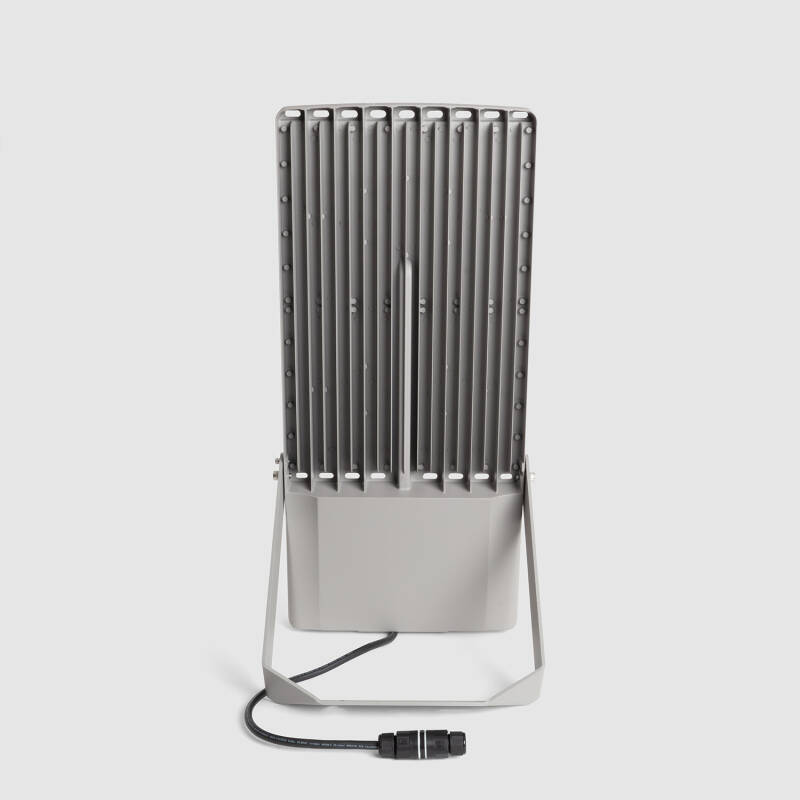

Area Pro LED IP66 Floodlight 2 Module 500W-80000lm 5000K 0-10V Dimmable Type 3 S1 130x60

Ref. Lyco: NLY0015603

Wattage 500 W

Colour Temperature 5000K

    Optic Type 3 S1 130x60

      Light Colour Daylight

        VAT not included £316.67

        £380.00

        Currently out of stock - Back in Stock Soon

          30 Day Credit Terms

          • 30 Day Return

            Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


            For more information view our Returns policy.

          • Want your items fast?

            Check our delivery cut-off times below:


            Mon – Thu: Order before 8:45 PM for 24/48h delivery.


            Friday: Order before 3:00 PM for 24/48h delivery.


            Full conditions here: Delivery methods.

          • 100% secure payments

            payment method image 1

            payment method image 2

            At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

          • Up to 5 year warranty

            Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


            You will find the exact product warranty in the technical details.

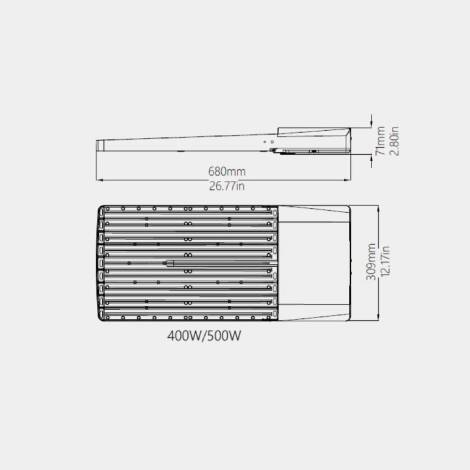

        Dimensions

        • Width309 mm
        • Cable Length50 cm
        • Height680 mm
        • Depth71 mm
        Scheme image

        Downloads

        • pdf file

          Pyros II Instruction Manual Use

        Certificates and Stamps

        CertificateCertificateCertificateCertificateCertificate

        Technical Specifications

        • Electrical Features

          • DimmableYes
          • Electrical Insulation ClassI
          • Frequency50-60 Hz
          • Light SourceLUMILEDS SMD5050
          • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
            Nominal Voltage100 V - 277 V
          • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
            Overvoltage Protection10 kV
          • Type Of Dimming0-10 V
          • Voltage level required for the product to function correctly.
            Voltage Range220-240V AC
          • Wattage500 W

        • Mechanical Features

          • InstallationSurface
          • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
            IP RatingIP66
          • LocationOutdoor
          • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
            OpticType 3 S1 130x60

        • Product Information

          • CertificatesCE, RoHS, CB, UL, UKCA
          • Guarantee5 years
          • Product SeriesPyros II

        • Product Data

          • Product FormatStandard Floodlight
          • Product typeFloodlights

        • LED Features

          • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
            Colour Rendering Index70
          • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
            Colour Temperature5000K
          • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
            LED Performance175 lm/W
          • Light ColourDaylight
          • Lumen80000 lm
          • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
            Luminous Efficiency160 lm/W
          • Number of LEDs272
          • Power Factor0.95

        • Materials and Finishes

          • ColourGrey
          • Fitting MaterialDie Cast Aluminium

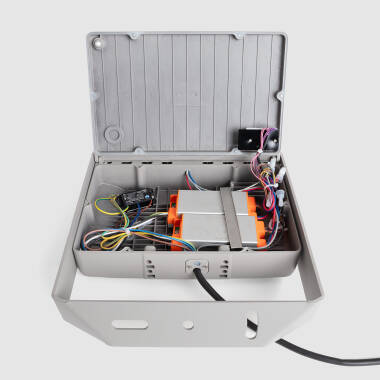

          • IncludesBracket, Quick Connector, Driver

        • Driver Information

          • Driver Intensity1600 mA
          • Driver Power50 W-500 W
          • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
            Driver Tension100 V - 480 V
          • Type Of Driver0-10V
        Outdoor Lights

        Key Features

        High-performance 500W LED floodlight with 80,000 lumens output and 5000K daylight colour temperature. Features IP66 weatherproof rating and IK08 impact resistance, making it ideal for demanding outdoor environments. Equipped with 272 LUMILEDS SMD5050 LEDs and a Type 3 S1 (130°x60°) optic for uniform light distribution. Includes a dimmable 0-10V INVENTRONICS driver with replaceable driver functionality. Constructed from durable die-cast aluminium with a grey finish (RAL 9006). Suitable for industrial, urban, logistics, and sports lighting applications. Comes with bracket, quick connector, and driver included. Offers a luminous efficiency of 160 lm/W, power factor of 0.95, and overvoltage protection up to 10 kV. Operating temperature range from -40°C to +45°C and a lifespan of 50,000 hours. Certified to CB, CE, RoHS, UKCA, and UL standards.
