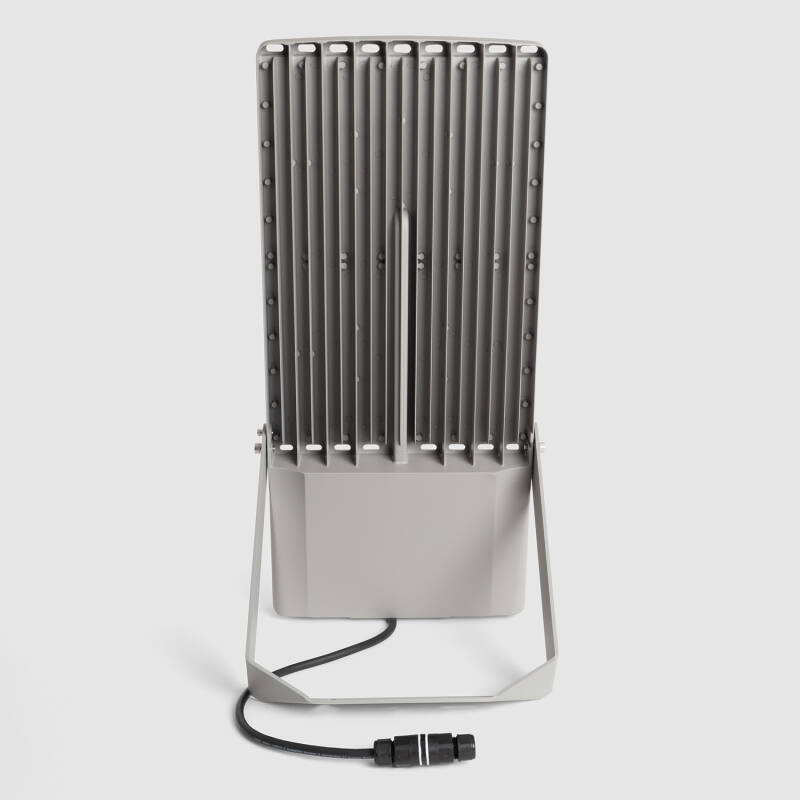

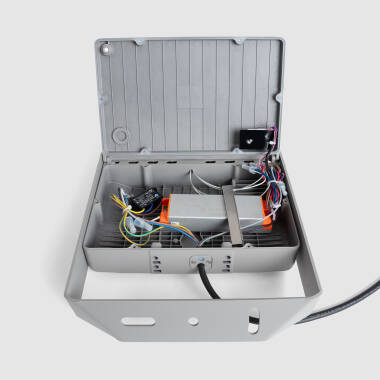

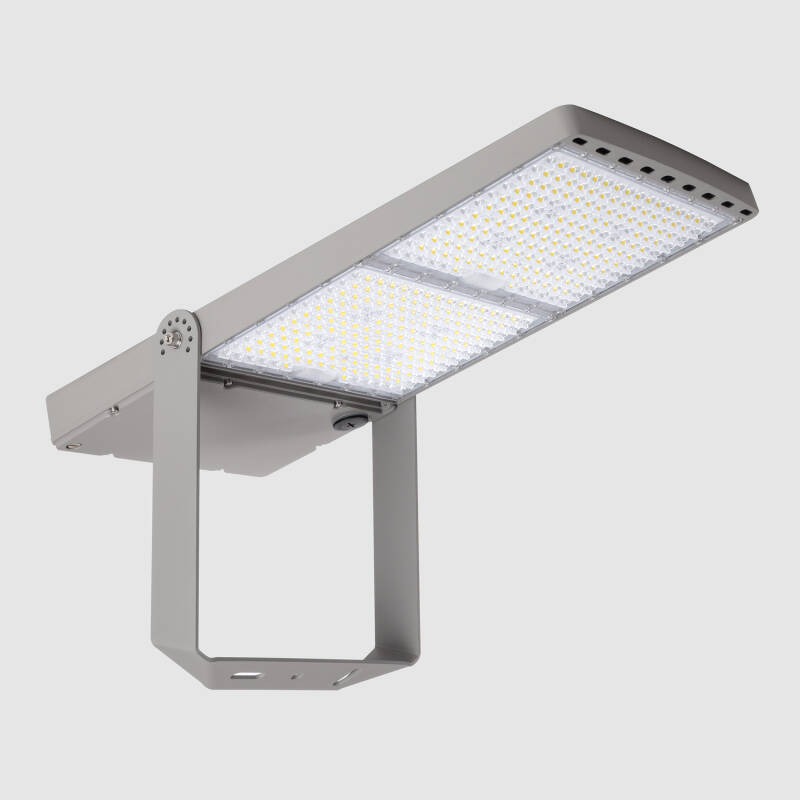

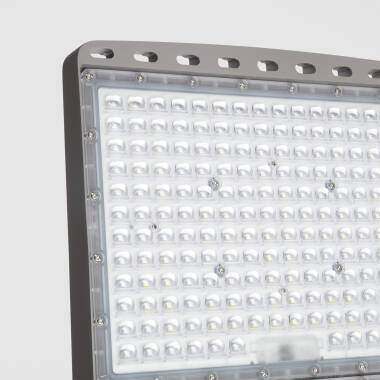

Image of Area Pro LED IP66 Floodlight 2 Module
Image of Area Pro LED IP66 Floodlight 2 Module
Image of Area Pro LED IP66 Floodlight 2 Module
Image of Area Pro LED IP66 Floodlight 2 Module
Image of Area Pro LED IP66 Floodlight 2 Module

Area Pro LED IP66 Floodlight 2 Module 300W-48000lm 5000K 0-10V Dimmable Type 3 S1 130x60

Ref. Lyco: NLY0015601

Wattage 300 W

Colour Temperature 5000K

    Optic Type 3 S1 130x60

      Light Colour Daylight

        VAT not included £233.33

        £280.00

        Energetic efficiency
        Product information sheet

        Currently out of stock - Back in Stock Soon

          30 Day Credit Terms

          • 30 Day Return

            Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


            For more information view our Returns policy.

          • Want your items fast?

            Check our delivery cut-off times below:


            Mon – Thu: Order before 8:45 PM for 24/48h delivery.


            Friday: Order before 3:00 PM for 24/48h delivery.


            Full conditions here: Delivery methods.

          • 100% secure payments

            payment method image 1

            payment method image 2

            At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

          • Up to 5 year warranty

            Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


            You will find the exact product warranty in the technical details.

        Dimensions

        • Width310 mm
        • Height421 mm
        • Cable Length50 cm
        • Depth69 mm

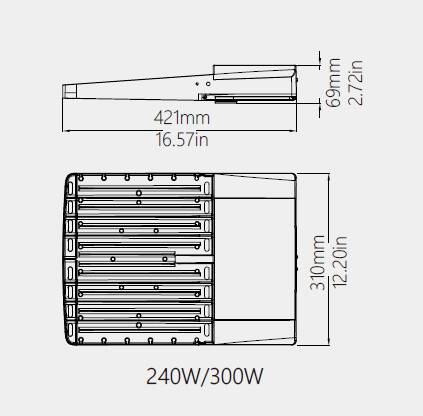

        Scheme image

        Downloads

        • pdf file

          Pyros II Instruction Manual Use

        Certificates and Stamps

        CertificateCertificateCertificateCertificateCertificate

        Technical Specifications

        • Electrical Features

          • DimmableYes
          • Electrical Insulation ClassI
          • Frequency50-60 Hz
          • Light SourceLUMILEDS SMD5050
          • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
            Nominal Voltage100 V - 277 V
          • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
            Overvoltage Protection10 kV
          • Type Of Dimming0-10 V
          • Voltage level required for the product to function correctly.
            Voltage Range220-240V AC
          • Wattage300 W

        • Mechanical Features

          • InstallationSurface
          • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
            IP RatingIP66
          • LocationOutdoor
          • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
            OpticType 3 S1 130x60

        • Product Information

          • CertificatesCE, RoHS, CB, UL, UKCA
          • Guarantee5 years
          • Product SeriesPyros II

        • Product Data

          • Product FormatStandard Floodlight
          • Product typeFloodlights

        • LED Features

          • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
            Colour Rendering Index70
          • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
            Colour Temperature5000K
          • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
            LED Performance175 lm/W
          • Light ColourDaylight
          • Lumen48000 lm
          • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
            Luminous Efficiency160 lm/W
          • Number of LEDs176
          • Power Factor0.95

        • Materials and Finishes

          • ColourGrey
          • Fitting MaterialDie Cast Aluminium
          • IncludesBracket, Quick Connector, Driver

        • Driver Information

          • Driver Intensity1600 mA
          • Driver Power50 W-500 W
          • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
            Driver Tension100 V - 480 V
          • Type Of Driver0-10V
        Outdoor Lights

        Key Features

        300W LED floodlight with IP66 rating, delivering 48,000 lumens at 5000K daylight colour temperature. Features 176 LUMILEDS SMD5050 LEDs with a luminous efficiency of 160 lm/W and a colour rendering index of 70. Equipped with a dimmable 0-10V INVENTRONICS driver, replaceable driver, and Type 3 S1 (130x60°) optics for uniform light distribution. Robust die-cast aluminium housing with IK08 impact protection, suitable for demanding outdoor environments. Includes bracket, quick connector, and driver. Operating temperature range from -40°C to +45°C. Certified to CB, CE, RoHS, UKCA, and UL standards. Ideal for industrial, urban, logistics, and sports lighting applications.
