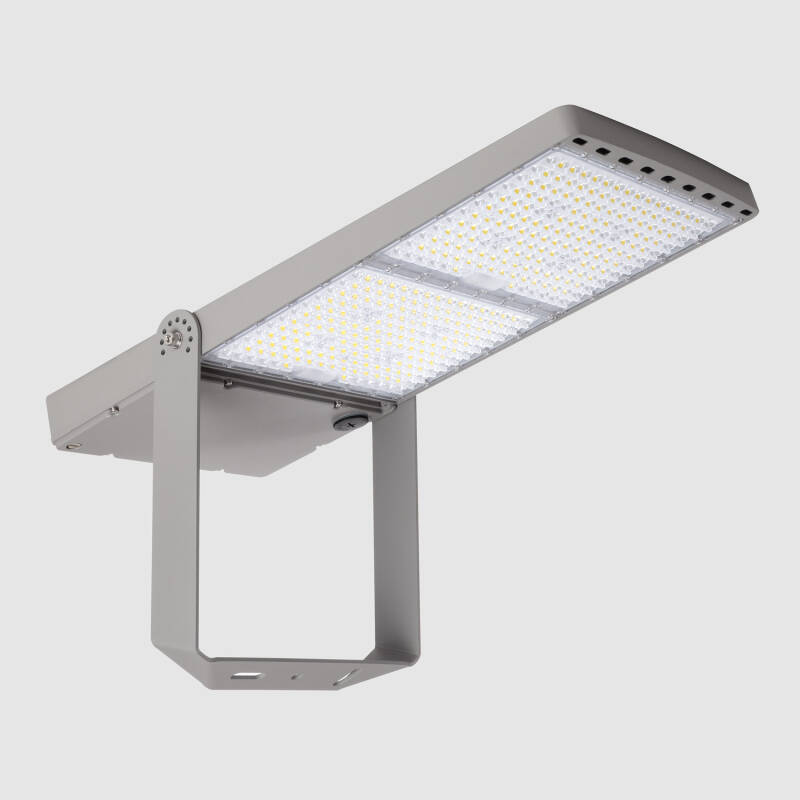

Area Pro LED IP66 Floodlight 2 Module 400W-64000lm 5000K 0-10V Dimmable Type 3 S1 130x60
Ref. Lyco: NLY0015602
Wattage 400 W
Colour Temperature 5000K
Optic Type 3 S1 130x60
Light Colour Daylight
VAT not included £300.00
£360.00
Currently out of stock - Back in Stock Soon
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

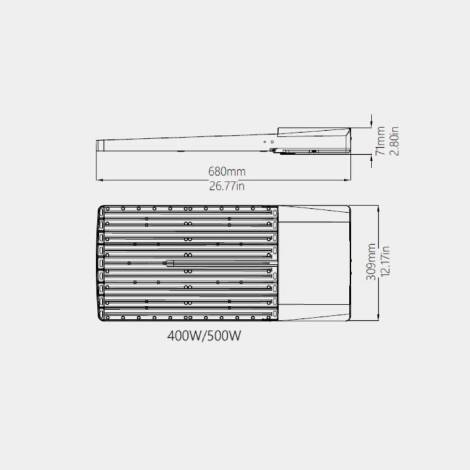

Dimensions
- Width309 mm
- Cable Length50 cm
- Height680 mm
- Depth71 mm
Downloads
Pyros II Instruction Manual Use
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD5050
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Overvoltage Protection10 kVProduct's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage400 W
Mechanical Features
- InstallationSurface
- IP RatingIP66The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor
- OpticType 3 S1 130x60Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
Product Information
- CertificatesCE, RoHS, CB, UL, UKCA
- Guarantee5 years
- Product SeriesPyros II
Product Data
- Product FormatStandard Floodlight
- Product typeFloodlights
LED Features
- Colour Rendering Index70Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature5000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- LED Performance175 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourDaylight
- Lumen64000 lm
- Luminous Efficiency160 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs272
- Power Factor0.95
Materials and Finishes
- ColourGrey
- Fitting MaterialDie Cast Aluminium

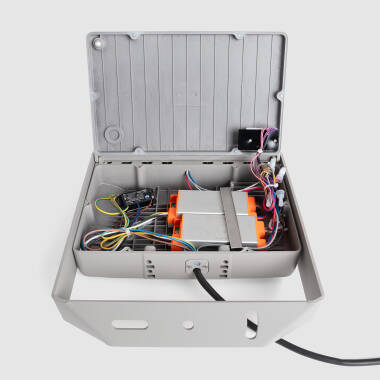

- IncludesBracket, Quick Connector, Driver
Driver Information
- Driver Intensity1600 mA
- Driver Power50 W-500 W
- Driver Tension100 V - 480 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver0-10V
