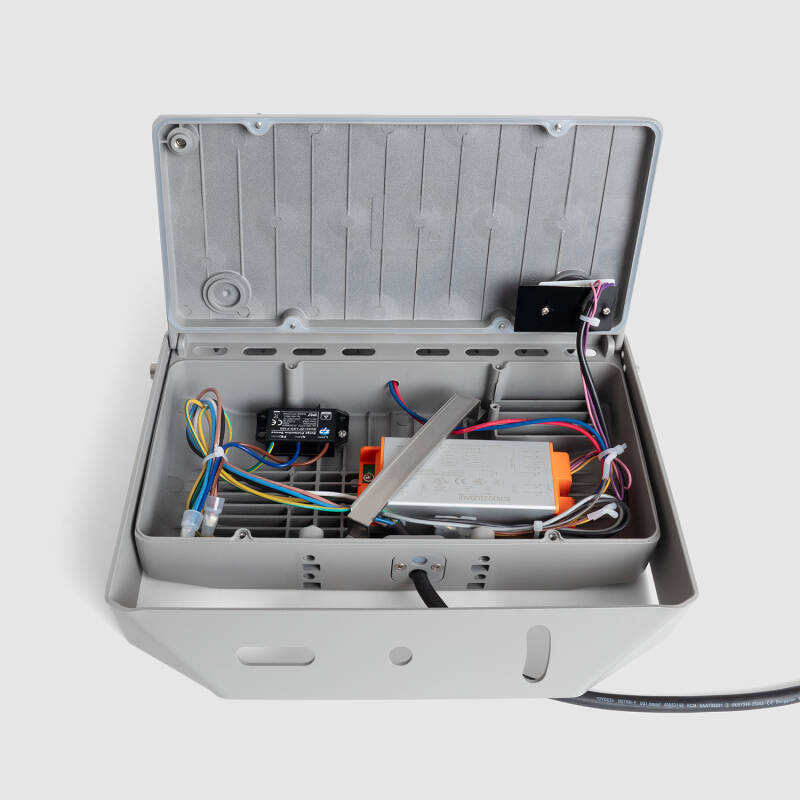

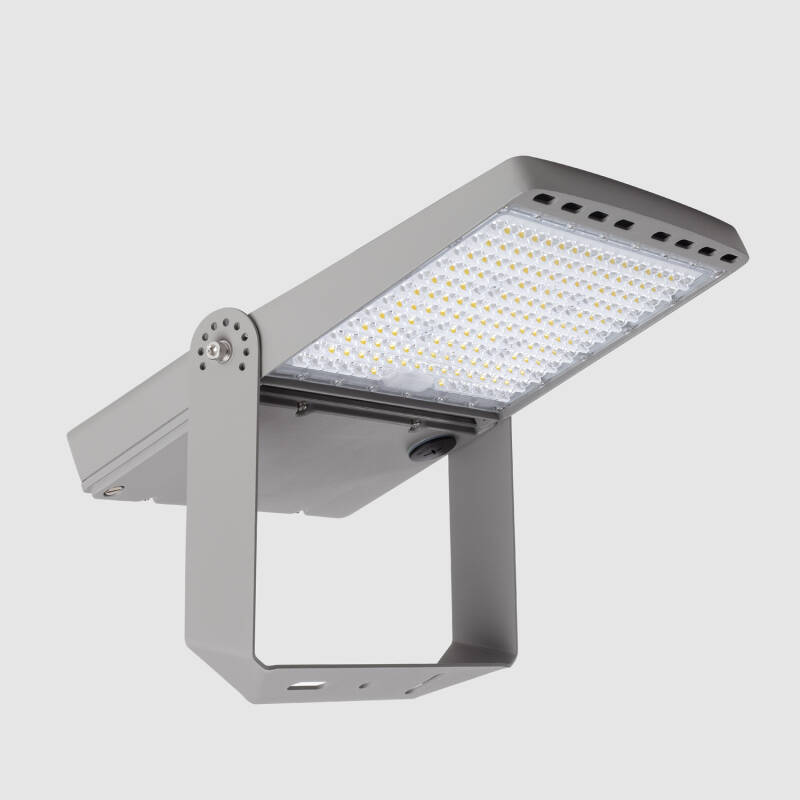

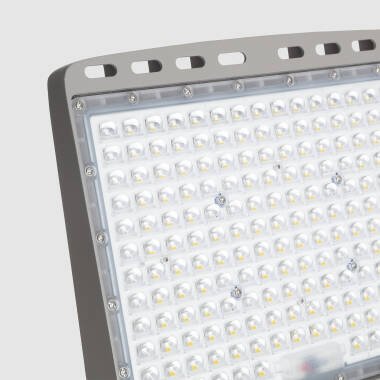

Area Pro LED IP66 Floodlight 1 Module 200W-32000lm 5000K 0-10V Dimmable Type 3 S1 130x60

Ref. Lyco: NLY0015599

Wattage 200 W

Colour Temperature 5000K

    Optic Type 3 S1 130x60

      Light Colour Daylight

        VAT not included £150.00

        £180.00

        Energetic efficiency
        Product information sheet

        Currently out of stock - Back in Stock Soon

          30 Day Credit Terms
          • 30 Day Return

            Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


            For more information view our Returns policy.

          • Want your items fast?

            Check our delivery cut-off times below:


            Mon – Thu: Order before 8:45 PM for 24/48h delivery.


            Friday: Order before 3:00 PM for 24/48h delivery.


            Full conditions here: Delivery methods.

          • 100% secure payments

            payment method image 1

            payment method image 2

            At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

          • Up to 5 year warranty

            Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


            You will find the exact product warranty in the technical details.

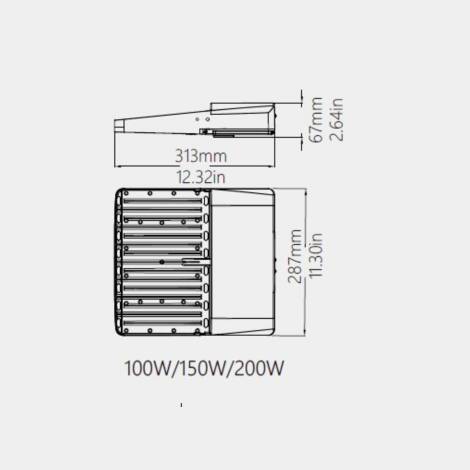

        Dimensions

        • Width287 mm
        • Height313 mm
        • Depth67 mm
        Scheme image

        Downloads

        • pdf file

          Inventronics 240 W Driver Manual

        • pdf file

          Pyros II Instruction Manual Use

        Certificates and Stamps

        CertificateCertificateCertificateCertificateCertificate

        Technical Specifications

        • Electrical Features

          • DimmableYes
          • Electrical Insulation ClassI
          • Frequency50-60 Hz
          • Light SourceLUMILEDS SMD5050
          • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
            Nominal Voltage100 V - 277 V
          • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
            Overvoltage Protection10 kV
          • Type Of Dimming0-10 V
          • Voltage level required for the product to function correctly.
            Voltage Range220-240V AC
          • Wattage200 W
        • Materials and Finishes

          • ColourGrey
          • Fitting MaterialDie Cast Aluminium
          • IncludesBracket, Quick Connector, Driver
          • Type Of LensType III
        • Mechanical Features

          • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
            IK ProtectionIK08
          • InstallationSurface
          • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
            IP RatingIP66
          • LocationOutdoor
          • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
            OpticType 3 S1 130x60
        • Product Information

          • CertificatesCE, RoHS, CB, UL, UKCA
          • Guarantee5 years
          • Product SeriesPyros II
        • Product Data

          • Product FormatStandard Floodlight
          • Product typeFloodlights
        • LED Features

          • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
            Colour Rendering Index70
          • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
            Colour Temperature5000K
          • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
            LED Performance175 lm/W
          • Light ColourDaylight
          • Lumen32000 lm
          • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
            Luminous Efficiency160 lm/W
          • Number of LEDs136
          • Power Factor0.95
        • Driver Information

          • Driver Intensity1100 mA
          • Driver Power240 W
          • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
            Driver Tension300 V
          • Type Of Driver0-10V
        Outdoor Lights

        Key Features

        - 200W power with 32,000 lumens output and 5000K daylight colour temperature - High luminous efficiency of 160 lm/W and LED performance of 175 lm/W - Equipped with 136 LUMILEDS SMD5050 LEDs and Type 3 S1 (130ºx60º) optics for uniform projection - Dimmable with 0-10V dimming capability using an INVENTRONICS driver for stable and adaptable lighting - Robust die-cast aluminium construction with IP66 and IK08 protection ratings for outdoor use - Includes bracket, quick connector, and driver; replaceable driver for easy maintenance - Suitable for demanding outdoor environments such as industrial sites, urban lighting, logistics areas, and sports centres - No flicker, power factor of 0.95, and overvoltage protection up to 10 kV - Operating temperature range from -40°C to +45°C - Certified with CB, CE, RoHS, UKCA, and UL standards - Compact dimensions: 313 mm (height) x 287 mm (width) x 67 mm (depth) and weight of 2.25 kg - Cable length of 0.5 m and nominal voltage range of 100-277V AC
