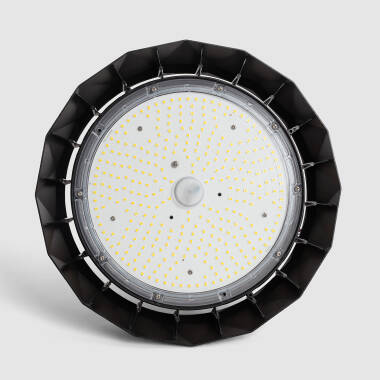

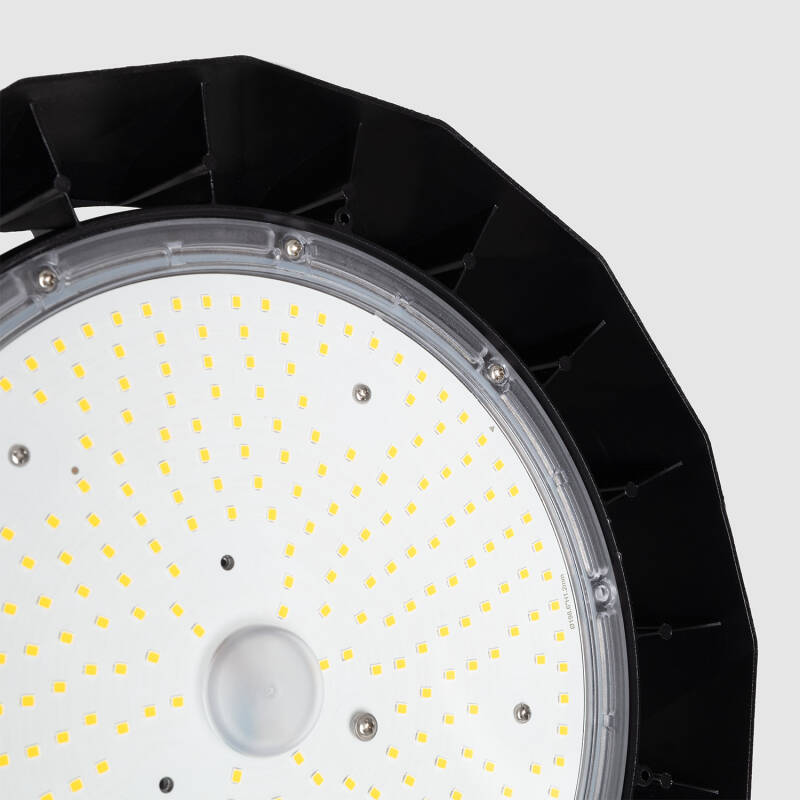

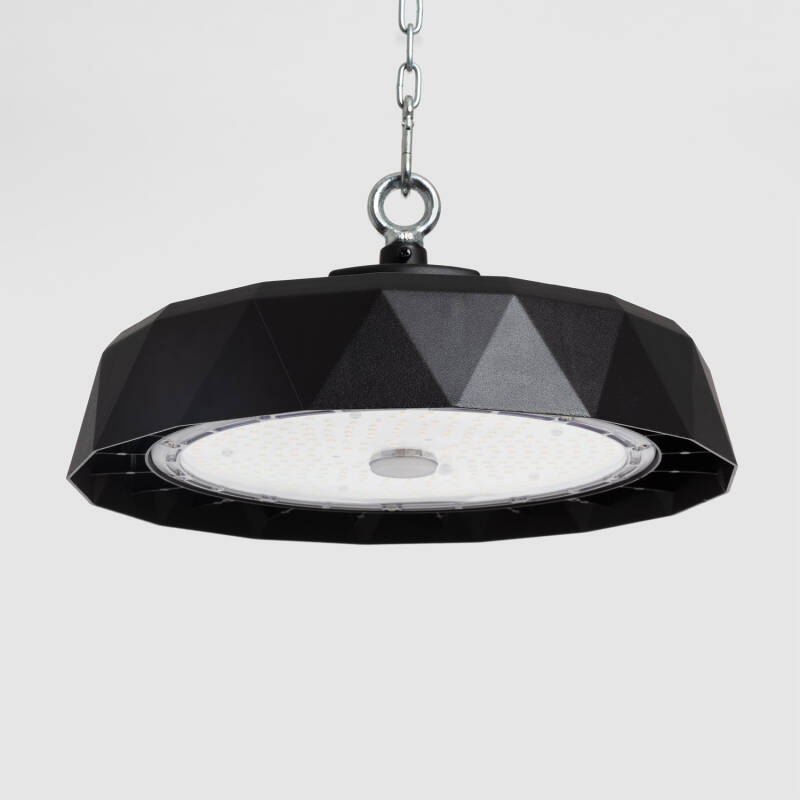

HBM EVO DALI High Bay 200Llm/W 100W-20000lm 90º 6000K

Ref. Lyco: NLY0013333

Ref. Stock: 359423

Wattage 100 W

Colour Temperature Daylight 6000K

Optic 90º

VAT not included £63.96

£76.75

Energetic efficiency
Product information sheet
    30 Day Credit Terms
    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • Want your items fast?

      Check our delivery cut-off times below:


      Mon – Thu: Order before 8:45 PM for 24/48h delivery.


      Friday: Order before 3:00 PM for 24/48h delivery.


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

Dimensions

  • Diameter300 mm
  • Depth305 mm
  • Width305 mm

Downloads

  • pdf file

    Sosen Driver Datasheet

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • DimmableYes
    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceLUMILEDS SMD2835
    • Nominal Voltage120 V - 277 V
    • Type Of DimmingDALI 2
    • Voltage Range220-240V AC
    • Wattage100 W
  • Mechanical Features

    • Coastal ResistantNo
    • IK ProtectionIK08
    • IP RatingIP65
    • LocationIndoor
    • Optic90º
    • Working Temperature-30 °C~+45 °C
  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, UKCA, ENEC
    • Guarantee7 years
    • Product SeriesHBM EVO
  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium
    • Not IncludedRemote
  • LED Features

    • Colour Rendering Index80
    • Colour Temperature6000K
    • Hours100.000 hours
    • Light ColourDaylight
    • Lumen20000 lm
    • Luminous Efficiency200 lm/W
    • Number of LEDs320
    • Power Factor0.95
  • Product Data

    • Product FormatHigh Bay Lighting
    • Product typeIndustrial Highbays
  • Driver Information

    • Driver Intensity400 mA - 600 mA
    • Driver Power120 W
    • Driver Tension180 V-260 V
    • Type Of DriverDALI
Outdoor Lights

Description

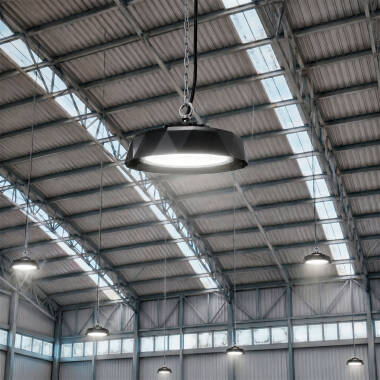

The Lyco HBM Evo High Bay DALI is a high-performance industrial lighting solution designed for demanding environments. It delivers exceptional luminous efficiency of 200 lm/W, ensuring superior brightness and energy savings. The fixture features robust IP65 ingress protection and IK08 impact resistance, making it suitable for harsh conditions and outdoor applications. Equipped with a high-quality LUMILEDS SMD2835 light source and an integrated driver supporting DALI and push dimming, it offers precise and reliable lighting control. The product achieves a Colour Rendering Index (CRI) of 80, providing accurate colour representation essential for professional settings. Constructed with a durable aluminium housing for optimal heat dissipation and mechanical strength, it guarantees a long operational lifespan of 100,000 hours. Designed to operate reliably within a temperature range of -30 °C to +45 °C, it ensures consistent performance in industrial units and warehouses with ceilings over 15 metres high, utilising narrow-angle optics for uniform illumination.
