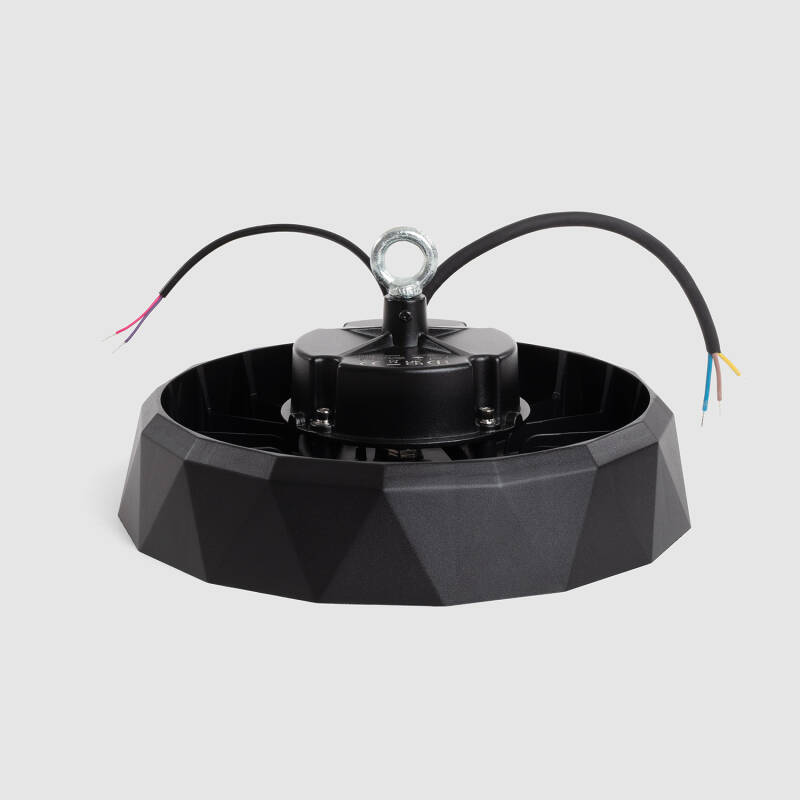

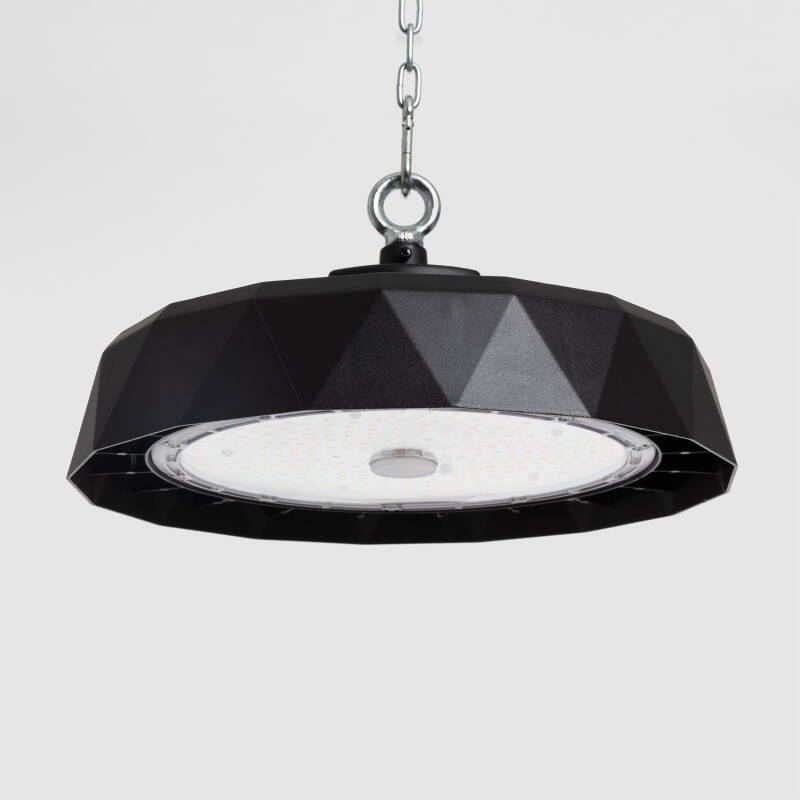

Image of Lyco HBM Evo High Bay DALI 200Llm/W 100,000hrs

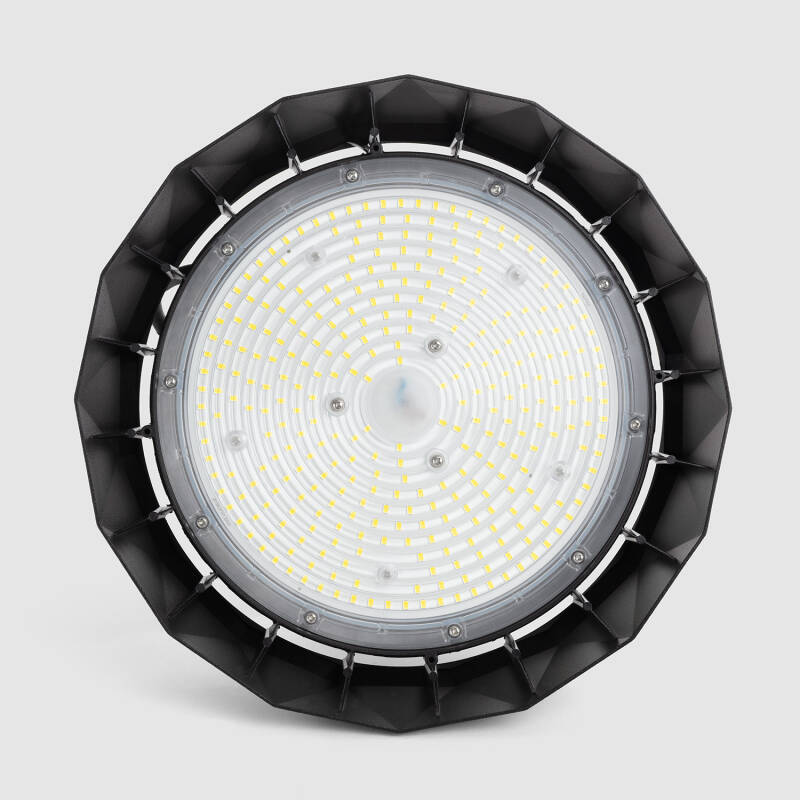

Image of Lyco HBM Evo High Bay DALI 200Llm/W 100,000hrs

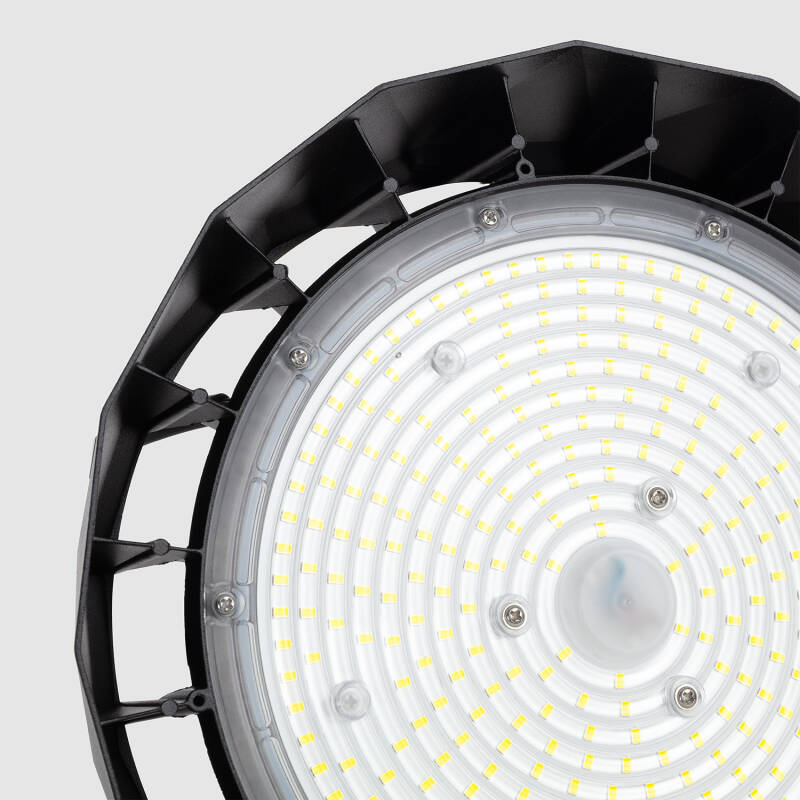

Image of Lyco HBM Evo High Bay DALI 200Llm/W 100,000hrs

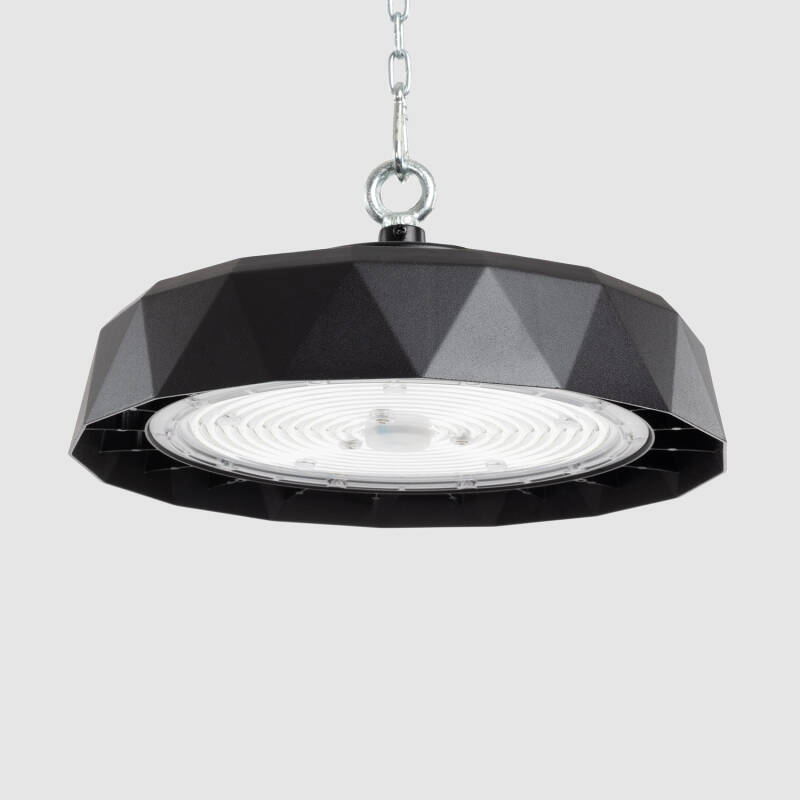

Image of Lyco HBM Evo High Bay DALI 200Llm/W 100,000hrs

200W-40,000lm 4000K 120º DALI Sensorless

Ref. Lyco: NLY0013342

Wattage 200 W

Colour Temperature Cool White 4000K

    Optic 120º

      VAT not included £71.24

      £85.49

      Energetic efficiency
      Product information sheet

      Delivered in 8 to 14 working days

        30 Day Credit Terms

        • 30 Day Return

          Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


          For more information view our Returns policy.

        • Want your items fast?

          Check our delivery cut-off times below:


          Mon – Thu: Order before 8:45 PM for 24/48h delivery.


          Friday: Order before 3:00 PM for 24/48h delivery.


          Full conditions here: Delivery methods.

        • 100% secure payments

          payment method image 1

          payment method image 2

          At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

        • Up to 5 year warranty

          Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


          You will find the exact product warranty in the technical details.

      Dimensions

      • Diameter300 mm

      Certificates and Stamps

      CertificateCertificateCertificateCertificate

      Technical Specifications

      • Electrical Features

        • DimmableYes
        • Electrical Insulation ClassI
        • Frequency50-60 Hz
        • Light SourceLUMILEDS SMD2835
        • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
          Nominal Voltage120 V - 277 V
        • Type Of DimmingDALI 2
        • Voltage level required for the product to function correctly.
          Voltage Range220-240V AC
        • Wattage200 W

      • Mechanical Features

        • Coastal ResistantNo
        • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
          IK ProtectionIK08
        • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
          IP RatingIP65
        • LocationIndoor
        • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
          Optic120º
        • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
          Working Temperature-30 °C~+45 °C

      • Product Information

        • BrandLyco
        • CertificatesCE, RoHS, UKCA, ENEC
        • Guarantee7 years
        • Product SeriesHBM EVO

      • Materials and Finishes

        • ColourBlack
        • Fitting MaterialAluminium
        • Not IncludedRemote

      • LED Features

        • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
          Colour Rendering Index80
        • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
          Colour Temperature4000K
        • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
          Hours100.000 hours
        • Light ColourCool White
        • Lumen40000 lm
        • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
          Luminous Efficiency200 lm/W
        • Number of LEDs600
        • Power Factor0.95

      • Product Data

        • Product FormatHigh Bay Lighting
        • Product typeIndustrial Highbays

      • Driver Information

        • Driver Intensity700 mA - 1000 mA
        • Driver Power200 W
        • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
          Driver Tension180 V-260 V
        • Type Of DriverDALI
      Outdoor Lights

      Key Features

      High-performance industrial high bay luminaire delivering 40,000 lumens at 200 W with exceptional luminous efficacy of 200 lm/W. Equipped with a robust SOSEN DALI driver supporting DALI 2 dimming, ensuring precise and reliable control. Features a 120º optic for uniform wide-area illumination, ideal for high-ceiling environments above 15 metres. Constructed from durable aluminium with an IP65 rating for superior protection against dust and water ingress, and IK08 impact resistance for enhanced mechanical robustness. Colour temperature is a neutral 4000K with a Colour Rendering Index (CRI) of 80, providing accurate colour representation in demanding industrial settings. Designed to operate reliably within a wide ambient temperature range of -20°C to +50°C, ensuring stable performance in harsh conditions. Includes a 7-year guarantee, underscoring its long lifespan and dependability for professional and industrial applications.

      Description

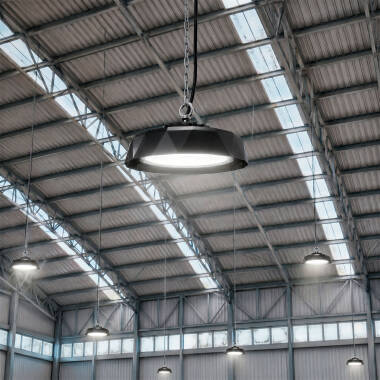

      The Lyco HBM Evo High Bay DALI variant delivers 40,000 lumens at 200 W with an exceptional luminous efficacy of 200 lm/W. It features a robust aluminium housing with IP65 ingress protection and IK08 impact resistance, ensuring reliable operation in harsh industrial environments. Equipped with a high-quality LUMILEDS SMD2835 light source and a SOSEN DALI driver supporting DALI 2 and push dimming, it offers precise and efficient lighting control. The luminaire provides a neutral 4000K colour temperature with a Colour Rendering Index (CRI) of 80 for accurate colour representation. Its integrated narrow 120º optic ensures uniform illumination, ideal for industrial units and warehouses with ceilings over 15 metres high. Designed for continuous operation within a temperature range of -30 °C to +45 °C, it guarantees outstanding performance and longevity with a rated lifespan of 100,000 hours, backed by a 7-year guarantee. This variant combines high efficiency, mechanical robustness, and advanced connectivity features tailored for demanding professional and industrial applications.
