Image of HBM EVO DALI High Bay 200Llm/W
Image of HBM EVO DALI High Bay 200Llm/W
Image of HBM EVO DALI High Bay 200Llm/W
Image of HBM EVO DALI High Bay 200Llm/W

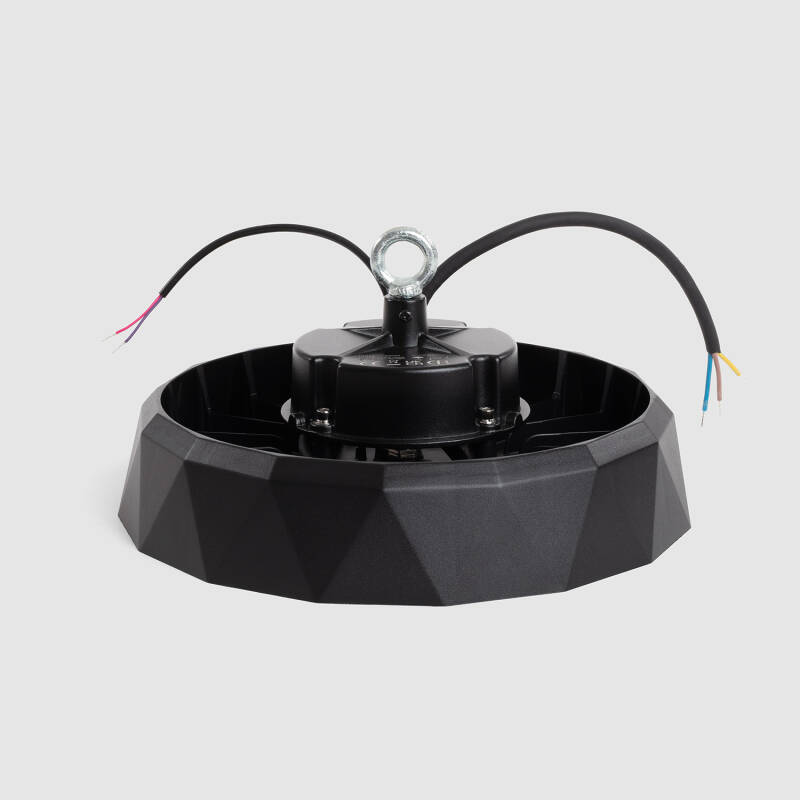

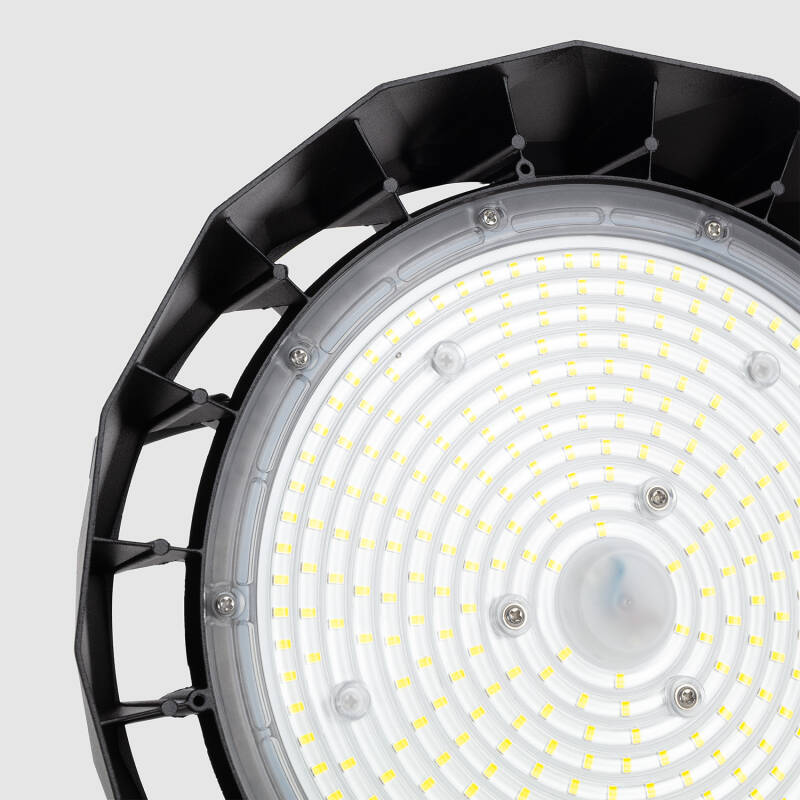

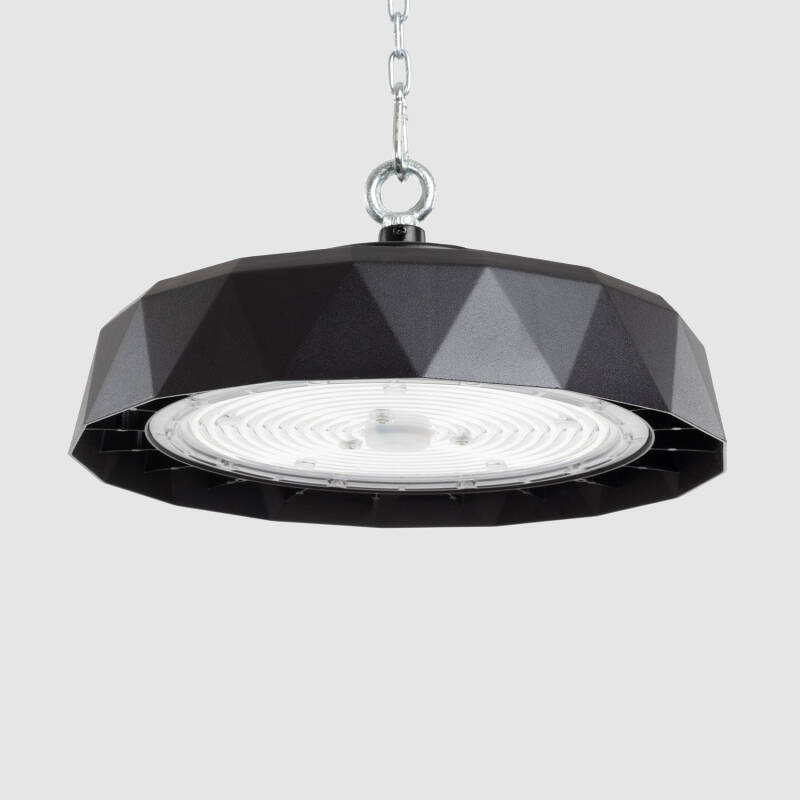

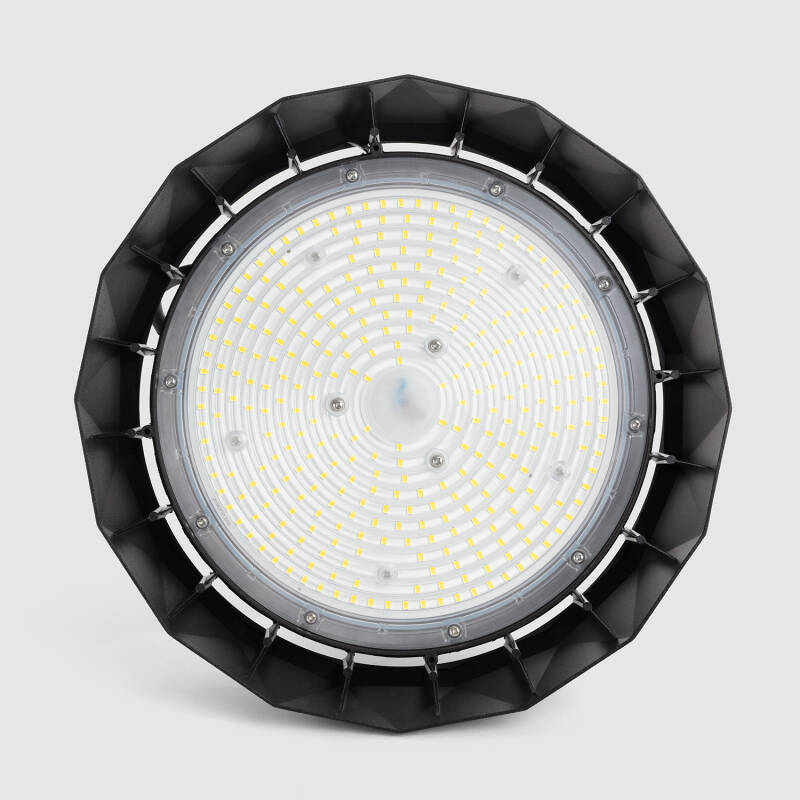

HBM EVO DALI High Bay 200Llm/W 150W-30000lm 90º 5000K

Ref. Lyco: NLY0013337

Wattage 150 W

Colour Temperature Daylight 5000K

Optic 90º

VAT not included £74.47

£89.37

Energetic efficiency
Product information sheet
    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • Want your items fast?

      Check our delivery cut-off times below:


      Mon – Thu: Order before 8:45 PM for 24/48h delivery.


      Friday: Order before 3:00 PM for 24/48h delivery.


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

Dimensions

  • Diameter300 mm
  • Depth305 mm
  • Width305 mm

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • DimmableYes
    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceLUMILEDS SMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage120 V - 277 V
    • Type Of DimmingDALI 2
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage150 W

  • Mechanical Features

    • Coastal ResistantNo
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK08
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP65
    • LocationIndoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-30 °C~+45 °C

  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, UKCA, ENEC
    • Guarantee7 years
    • Product SeriesHBM EVO

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium
    • Not IncludedRemote

  • LED Features

    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature5000K
    • Estimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
      Hours100.000 hours
    • Light ColourDaylight
    • Lumen30000 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency200 lm/W
    • Number of LEDs480
    • Power Factor0.95

  • Product Data

    • Product FormatHigh Bay Lighting
    • Product typeIndustrial Highbays

  • Driver Information

    • Driver Intensity520 mA - 750 mA
    • Driver Power150 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension180 V-260 V
    • Type Of DriverDALI
Outdoor Lights

Description

The Lyco HBM Evo High Bay DALI is a high-performance industrial lighting solution designed for demanding environments. It delivers exceptional luminous efficiency of 200 lm/W, ensuring superior brightness and energy savings. The fixture features robust IP65 ingress protection and IK08 impact resistance, making it suitable for harsh conditions and outdoor applications. Equipped with a high-quality LUMILEDS SMD2835 light source and an integrated driver supporting DALI and push dimming, it offers precise and reliable lighting control. The product achieves a Colour Rendering Index (CRI) of 80, providing accurate colour representation essential for professional settings. Constructed with a durable aluminium housing for optimal heat dissipation and mechanical strength, it guarantees a long operational lifespan of 100,000 hours. Designed to operate reliably within a temperature range of -30 °C to +45 °C, it ensures consistent performance in industrial units and warehouses with ceilings over 15 metres high, utilising narrow-angle optics for uniform illumination.
