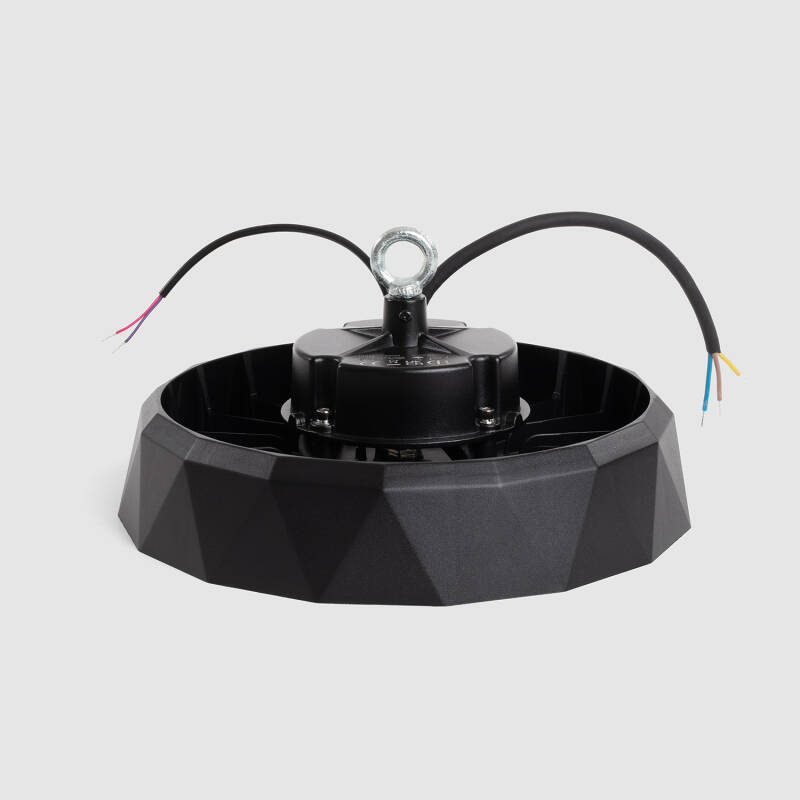

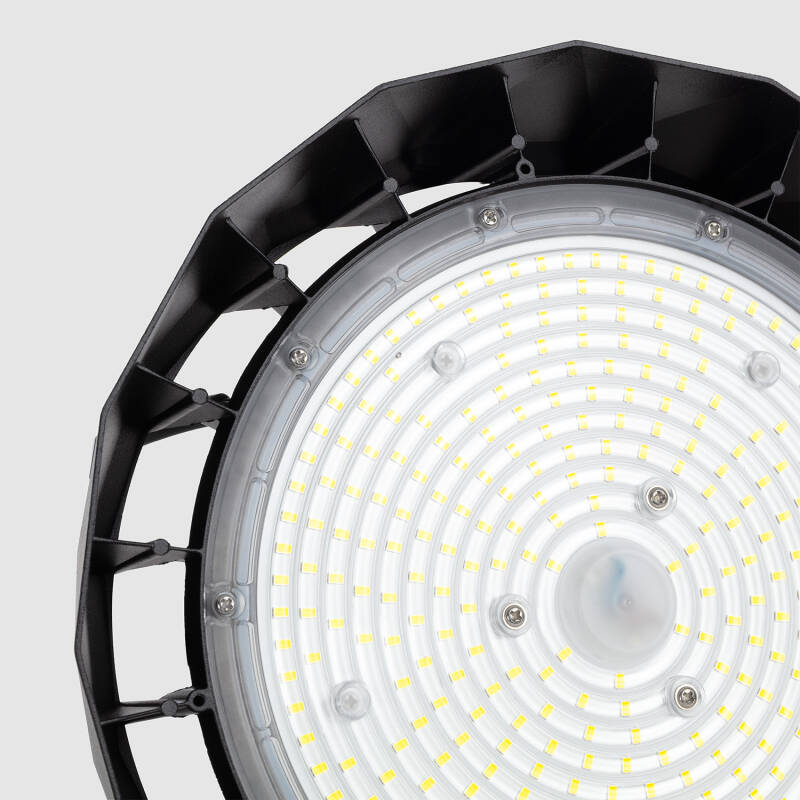

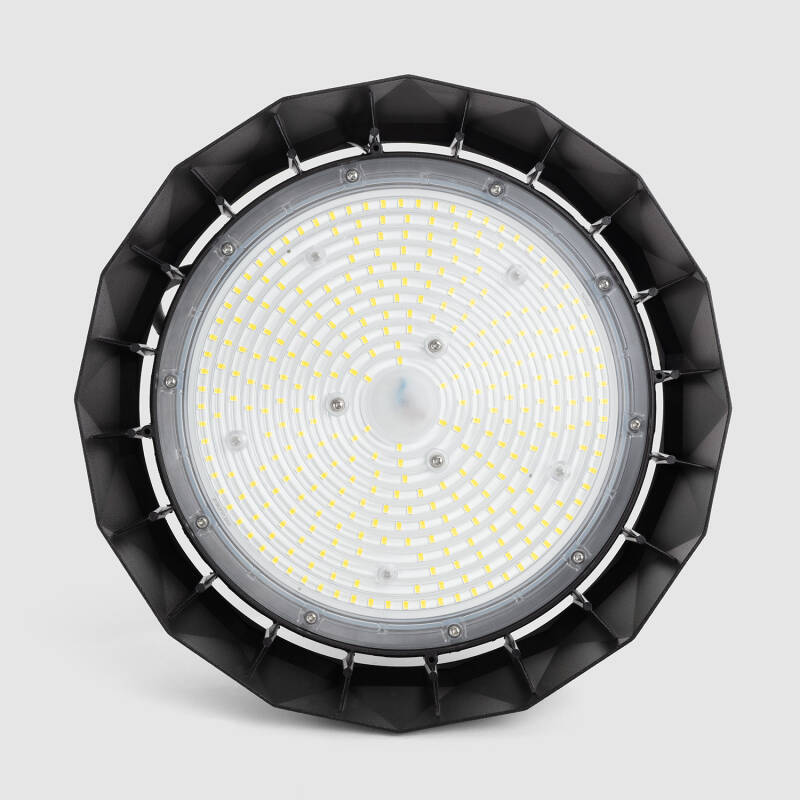

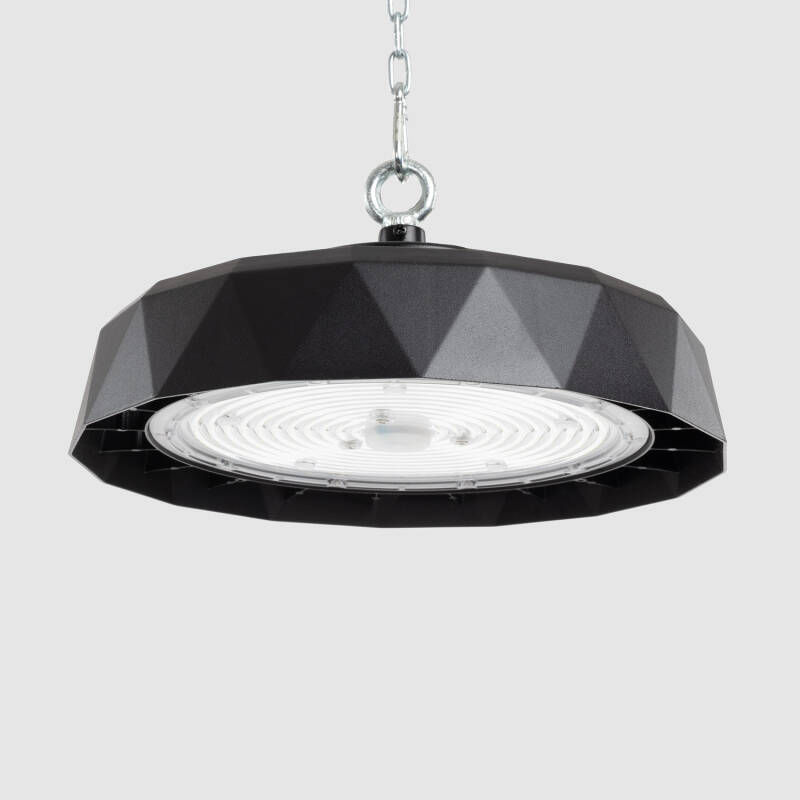

Lyco HBM Evo High Bay 100W-20,000lm 4000K 120º DALI Sensorless
Ref. Lyco: NLY0013330
Wattage 100 W
Colour Temperature Cool White 4000K
Optic 120º
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Diameter300 mm
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Nominal Voltage120 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of DimmingDALI 2
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage100 W
Mechanical Features
- Coastal ResistantNo
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Optic120ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Working Temperature-30 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA, ENEC
- Guarantee7 years
- Product SeriesHBM EVO
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium
- Not IncludedRemote
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- Hours100.000 hoursEstimated lifespan of the product before it loses performance. Based on optimal, non-continuous use, and measured in hours of operation under controlled conditions.
- Light ColourCool White
- Lumen20000 lm
- Luminous Efficiency200 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs320
- Power Factor0.95
Product Data
- Product FormatHigh Bay Lighting
- Product typeIndustrial Highbays
Driver Information
- Driver Intensity400 mA - 600 mA
- Driver Power120 W
- Driver Tension180 V-260 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of DriverDALI
Key Features
High-performance industrial LED high bay luminaire featuring a 100 W power rating and delivering 20,000 lumens with exceptional luminous efficacy of 200 lm/W. Equipped with a high-quality SOSEN DALI driver supporting DALI 2 dimming protocol, ensuring precise and reliable lighting control. The optic provides a 120º beam angle, optimised for uniform illumination in high-ceiling environments above 15 metres. The luminaire incorporates 320 LUMILEDS SMD2835 LEDs with a Colour Rendering Index (CRI) of 80, offering accurate colour representation suitable for professional industrial settings. Constructed from robust aluminium housing with an IP65 ingress protection rating and IK08 impact resistance, it guarantees durability and reliable operation in demanding outdoor and industrial environments. Operating temperature range from -30 °C to +45 °C ensures stable performance under harsh conditions. The system supports a power factor of 0.95 and voltage range of 220-240 V AC, with driver voltage between 180 V and 260 V. Designed for longevity with a lifespan of 100,000 hours and backed by a 7-year guarantee, this luminaire is engineered for sustained efficiency, resilience, and professional-grade illumination in industrial applications.
Description
High-performance industrial LED high bay luminaire delivering 20,000 lumens at 200 lm/W luminous efficacy with 100 W power consumption. Features a robust IP65 ingress protection and IK08 impact resistance for reliable operation in demanding and outdoor industrial environments. Equipped with 320 LUMILEDS SMD2835 LEDs and a SOSEN DALI driver supporting DALI 2 dimming protocol for precise and efficient lighting control. The optic provides a 120º beam angle optimised for uniform illumination in high-ceiling spaces above 15 metres. Constructed with a durable aluminium housing ensuring effective heat dissipation and mechanical strength. Offers a Colour Rendering Index (CRI) of 80 for accurate colour representation. Operates reliably within a temperature range of -30 °C to +45 °C, with a lifespan of 100,000 hours, engineered for sustained efficiency, resilience, and professional-grade performance in industrial and warehouse applications.
