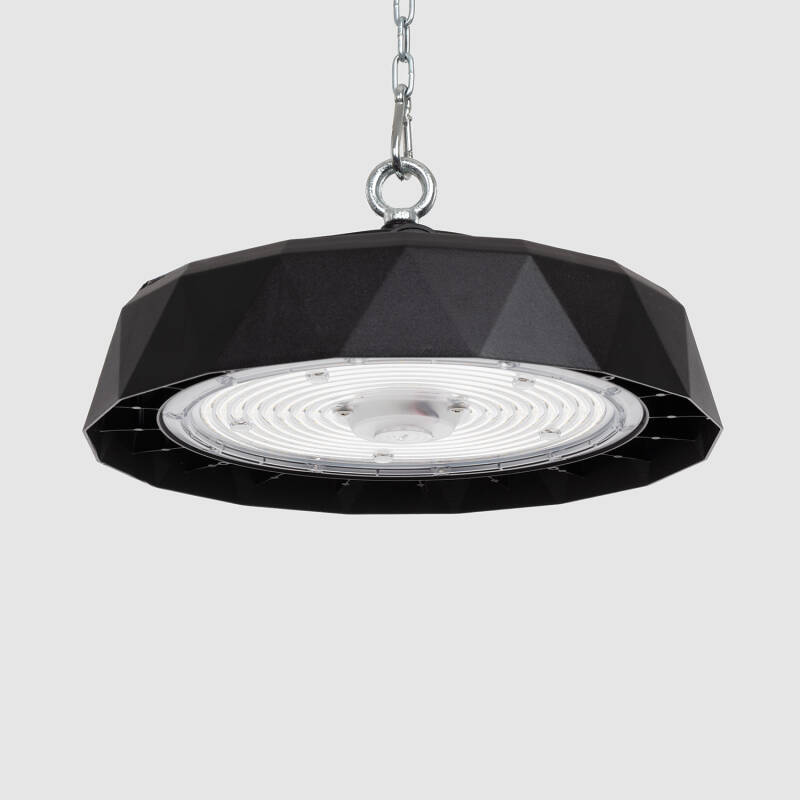

Image of Lyco HBM Evo High Bay

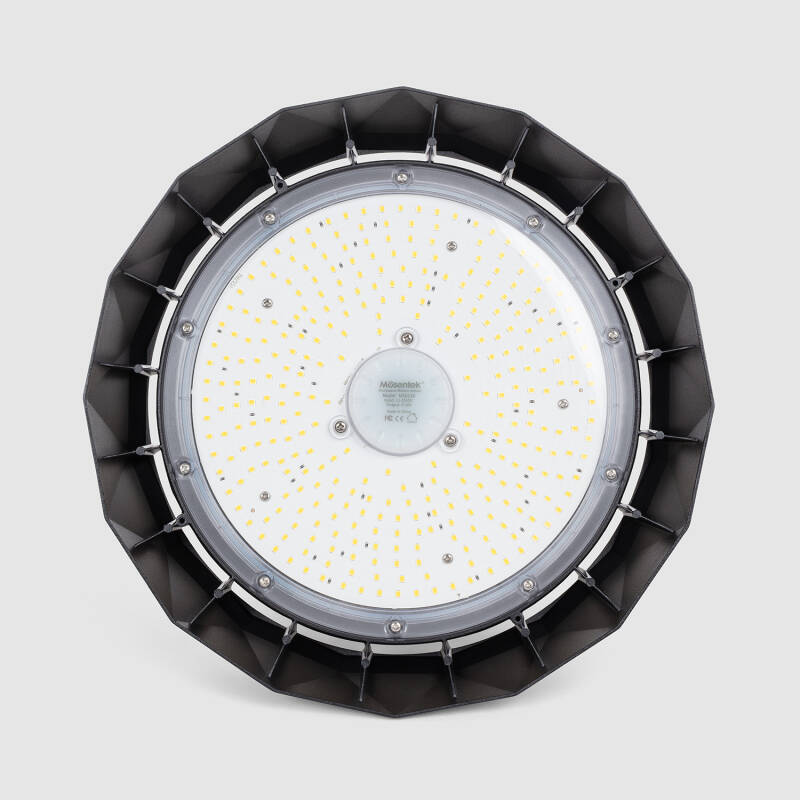

Image of Lyco HBM Evo High Bay

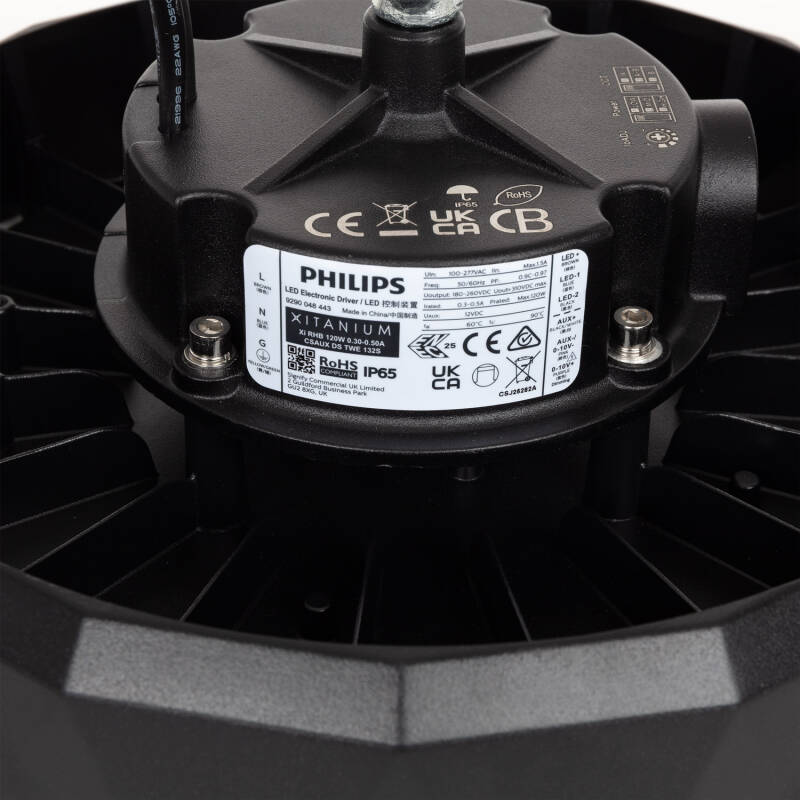

Image of Lyco HBM Evo High Bay

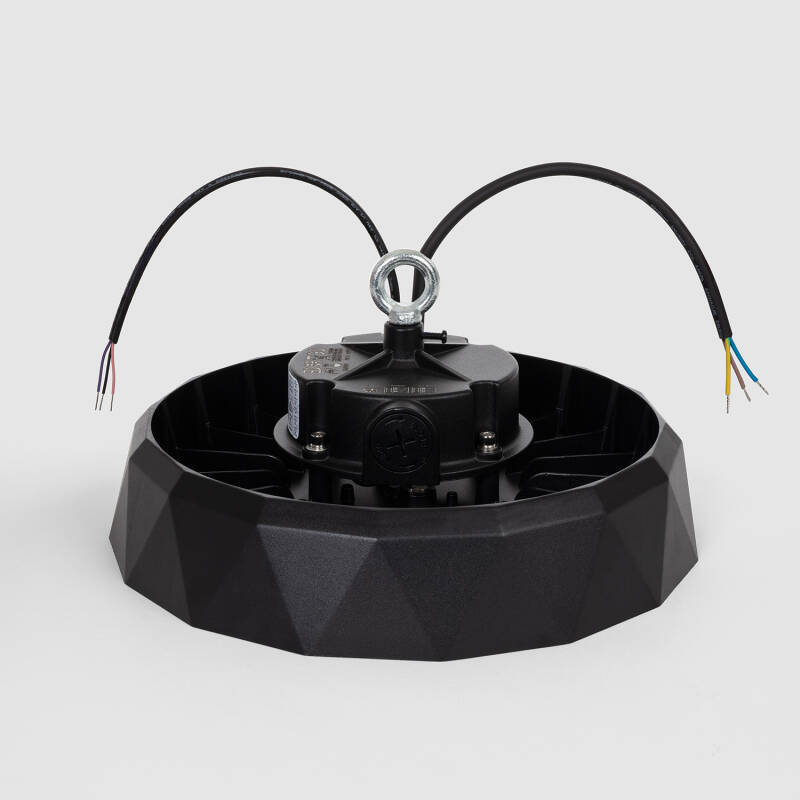

Image of Lyco HBM Evo High Bay

Lyco HBM Evo High Bay 200W-40,000lm 4000K 120º 0-10V MW Sensor

Download technical datasheet

Ref. Lyco: NLY0013320

Wattage 200 W

Sensor Type Radar Motion

Colour Temperature Cool White 4000K

    Optic 120º

      VAT not included £83.33

      £100.00

      Energetic efficiency
      Product information sheet

      Delivered in 8 to 14 working days

        30 Day Credit Terms

        • 30 Day Return

          Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


          For more information view our Returns policy.

        • Want your items fast?

          Check our delivery cut-off times below:


          Mon – Thu: Order before 8:45 PM for 24/48h delivery.


          Friday: Order before 3:00 PM for 24/48h delivery.


          Full conditions here: Delivery methods.

        • 100% secure payments

          payment method image 1

          payment method image 2

          At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

        • Up to 5 year warranty

          Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


          You will find the exact product warranty in the technical details.

      Dimensions

      • Diameter300 mm

      Downloads

      • pdf file

        PDF Datasheet 177517_359377 EN

      • pdf file

        ManualDriverPhilipsXitanium

      Certificates and Stamps

      CertificateCertificateCertificateCertificate

      Technical Specifications

      • Electrical Features

        • DimmableYes
        • Electrical Insulation ClassI
        • Frequency50-60 Hz
        • Light SourceLUMILEDS SMD2835
        • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
          Nominal Voltage120 V - 277 V
        • Sensitivity5 Lux~300 Lux
        • Type Of Dimming0-10 V
        • Voltage level required for the product to function correctly.
          Voltage Range220-240V AC
        • Wattage200 W

      • Mechanical Features

        • Coastal ResistantNo
        • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
          Detection Range30 °
        • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
          IK ProtectionIK08
        • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
          IP RatingIP65
        • LocationOutdoor, Indoor
        • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
          Optic120º
        • SensorRadar
        • Sensor TypeRadar Motion
        • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
          Working Temperature-30 °C~+45 °C

      • Product Information

        • CertificatesCE, RoHS, UKCA, ENEC
        • Guarantee7 years
        • Product SeriesHBM EVO

      • Materials and Finishes

        • ColourBlack
        • Fitting MaterialAluminium
        • Not IncludedRemote

      • LED Features

        • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
          Colour Rendering Index80
        • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
          Colour Temperature4000K
        • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
          LED Performance200 lm/W
        • Light ColourCool White
        • Lumen40000 lm
        • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
          Luminous Efficiency190 lm/W
        • Number of LEDs600
        • Power Factor0.95

      • Product Data

        • Product FormatHigh Bay Lighting
        • Product typeIndustrial Highbays

      • Driver Information

        • Driver Intensity500 mA - 830 mA
        • Driver Power200 W
        • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
          Driver Tension180 V-260 V
        • Type Of Driver0-10V
      Outdoor Lights

      Key Features

      High-performance industrial LED high bay luminaire delivering 40,000 lumens at 200W with exceptional luminous efficacy of 190 lm/W. Equipped with a PHILIPS Xitanium 0-10V dimmable driver ensuring precise and reliable power management. Features a 120º optic for uniform wide-angle illumination, ideal for high-ceiling environments above 15 metres. Robust aluminium construction with IP65 ingress protection and IK08 impact resistance guarantees durability and reliability in demanding indoor and outdoor industrial settings. Colour temperature fixed at 4000K (cool white) with a Colour Rendering Index (CRI) of 80, ensuring accurate colour perception. Integrated radar motion sensor with a 30° detection range enhances energy efficiency and operational control. Rated for continuous operation within a temperature range of -30°C to +45°C, supported by a 7-year warranty for long-term performance assurance.
