Lyco HBM Evo High Bay 150W-30,000lm 4000K 120º 0-10V MW Sensor

Ref. Lyco: NLY0013308

Wattage 150 W

Sensor Type Radar Motion

Colour Temperature Cool White 4000K

    Optic 120º

      VAT not included £74.99

      £89.99

      Energetic efficiency
      Product information sheet

      Delivered in 8 to 14 working days

        30 Day Credit Terms

        • 30 Day Return

          Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


          For more information view our Returns policy.

        • Want your items fast?

          Check our delivery cut-off times below:


          Mon – Thu: Order before 8:45 PM for 24/48h delivery.


          Friday: Order before 3:00 PM for 24/48h delivery.


          Full conditions here: Delivery methods.

        • 100% secure payments

          payment method image 1

          payment method image 2

          At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

        • Up to 5 year warranty

          Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


          You will find the exact product warranty in the technical details.

      Dimensions

      • Diameter300 mm

      Downloads

      • pdf file

        ManualDriverPhilipsXitanium

      Certificates and Stamps

      CertificateCertificateCertificateCertificate

      Technical Specifications

      • Electrical Features

        • DimmableYes
        • Electrical Insulation ClassI
        • Frequency50-60 Hz
        • Light SourceLUMILEDS SMD2835
        • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
          Nominal Voltage120 V - 277 V
        • Sensitivity5 Lux~300 Lux
        • Type Of Dimming0-10 V
        • Voltage level required for the product to function correctly.
          Voltage Range220-240V AC
        • Wattage150 W

      • Mechanical Features

        • Coastal ResistantNo
        • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
          Detection Range30 °
        • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
          IK ProtectionIK08
        • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
          IP RatingIP65
        • LocationOutdoor, Indoor
        • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
          Optic120º
        • SensorRadar
        • Sensor TypeRadar Motion
        • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
          Working Temperature-30 °C~+45 °C

      • Product Information

        • CertificatesCE, RoHS, UKCA, ENEC
        • Guarantee7 years
        • Product SeriesHBM EVO

      • Materials and Finishes

        • ColourBlack
        • Fitting MaterialAluminium
        • Not IncludedRemote

      • LED Features

        • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
          Colour Rendering Index80
        • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
          Colour Temperature4000K
        • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
          LED Performance200 lm/W
        • Light ColourCool White
        • Lumen30000 lm
        • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
          Luminous Efficiency190 lm/W
        • Number of LEDs480
        • Power Factor0.95

      • Product Data

        • Product FormatHigh Bay Lighting
        • Product typeIndustrial Highbays

      • Driver Information

        • Driver Intensity370 mA - 620 mA
        • Driver Power150 W
        • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
          Driver Tension180 V-260 V
        • Type Of Driver0-10V
      Outdoor Lights

      Key Features

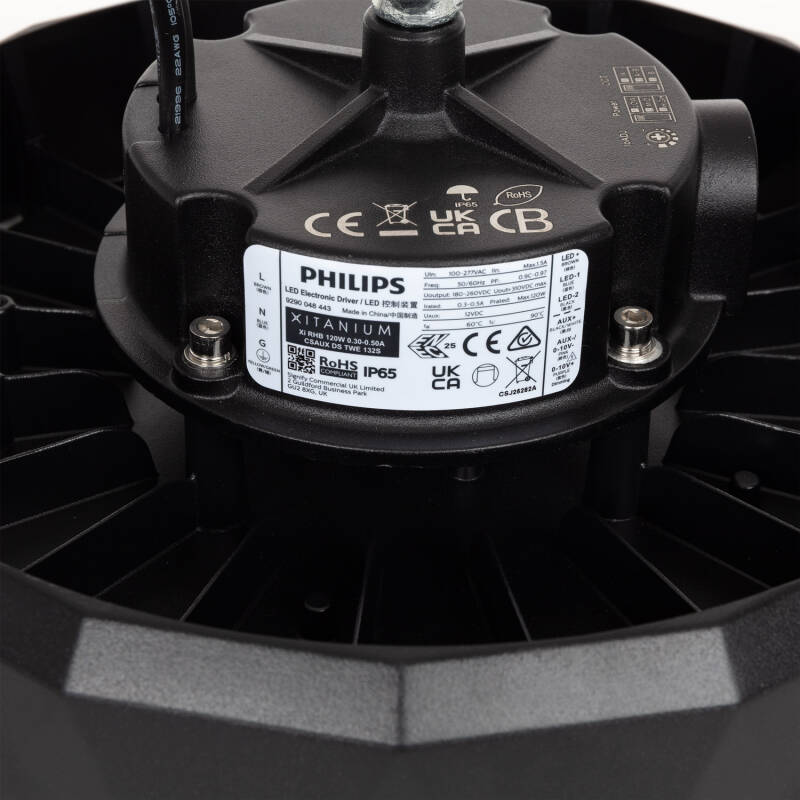

      High-performance industrial LED high bay luminaire designed for demanding production environments. Features a powerful 150 W PHILIPS Xitanium 0-10V dimmable driver ensuring reliable and efficient operation. Delivers 30,000 lumens with a luminous efficacy of 190 lm/W and a high LED performance of 200 lm/W using LUMILEDS SMD2835 LEDs. Provides uniform illumination with a wide 120º beam angle optimised for high-ceiling applications. Robust aluminium housing with IP65 ingress protection and IK08 impact resistance guarantees durability and protection against dust, water, and mechanical impacts. Colour temperature is a neutral 4000K with a Colour Rendering Index (CRI) of 80, suitable for accurate colour recognition in industrial settings. Integrated radar motion sensor enhances energy savings and operational efficiency. Suitable for indoor and outdoor use within an ambient temperature range of -20°C to +50°C, ensuring consistent performance in harsh conditions. Seven-year warranty underlines product reliability and longevity.
