Wattage 150 W
Voltage Range 220-240V AC
Lumen 30000 lm
Diameter 300 mm
Wattage
150 W
Voltage Range
220-240V AC
Lumen
30000 lm
Diameter
300 mm
Number of LEDs
480
Type Of Dimming
0-10 V
Power Factor
0.95
IP Rating
IP65
Battery Operated
No
Dimensions
148 mm x Ø300 mm
IK Protection
IK08
Luminous Efficiency
190 lm/W

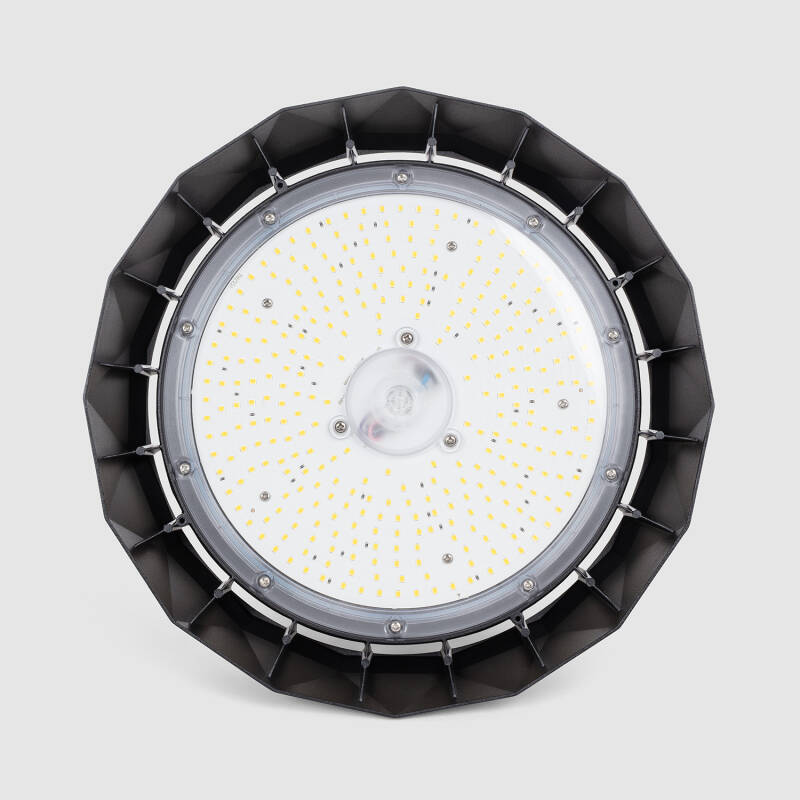

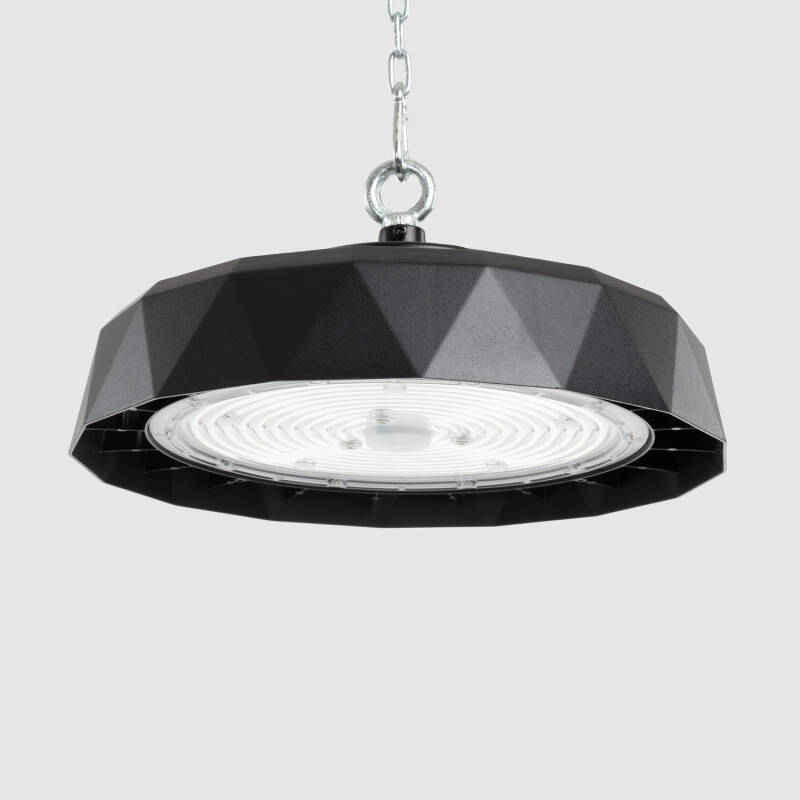

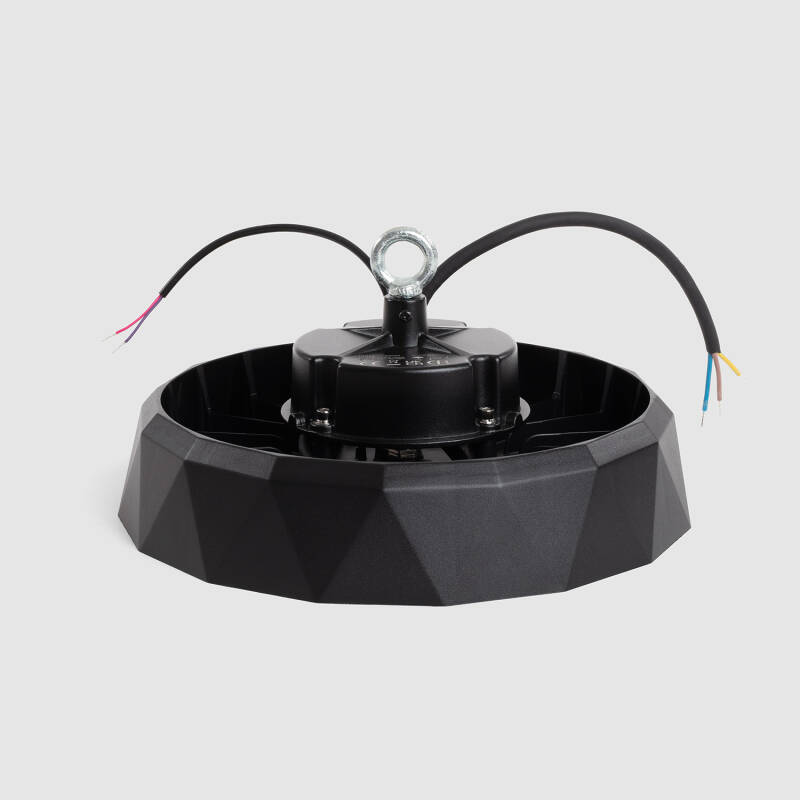

HBM EVO 0-10V High Bay 200Llm/W 150W-30,000lm 120º 4000K
Ref. Lyco: NLY0013307
Ref. Stock: 359242
Wattage 150 W
Colour Temperature Cool White 4000K
Optic 120º
Sensor Type Without sensor
In Stock, Delivered in 8 to 14 working days
VAT not included £62.91
£75.49
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Diameter300 mm
Downloads
ManualDriverPhilipsXitanium
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Light SourceLUMILEDS SMD2835
- Nominal Voltage120 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage150 W
Mechanical Features
- Coastal ResistantNo
- IK ProtectionIK08Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationOutdoor, Indoor
- Optic120ºType of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
- Sensor TypeWithout sensor
- Working Temperature-30 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA, ENEC
- Guarantee7 years
- Product SeriesHBM EVO
Materials and Finishes
- ColourBlack
- Fitting MaterialAluminium
- Not IncludedRemote
LED Features
- Colour Rendering Index80Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
- Colour Temperature4000KDefines the light tone, from warm white to cool white, measured in Kelvin (K).
- LED Performance200 lm/WEfficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
- Light ColourCool White
- Lumen30000 lm
- Luminous Efficiency190 lm/WRatio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
- Number of LEDs480
- Power Factor0.95
Product Data
- Product FormatHigh Bay Lighting
- Product typeIndustrial Highbays

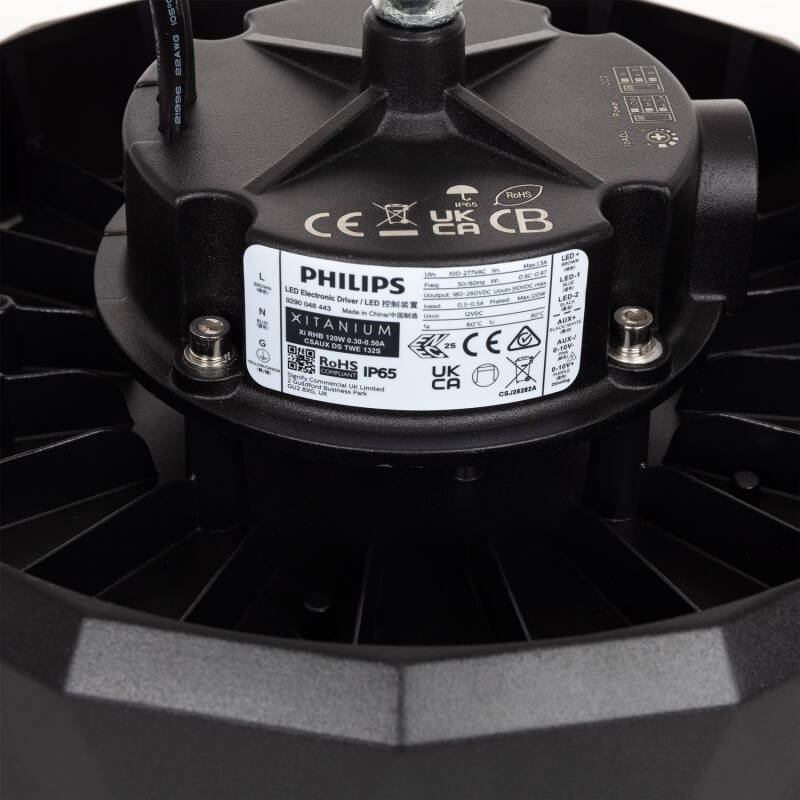

Driver Information
- Driver Intensity370 mA - 620 mA
- Driver Power150 W
- Driver Tension180 V-260 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver0-10V
