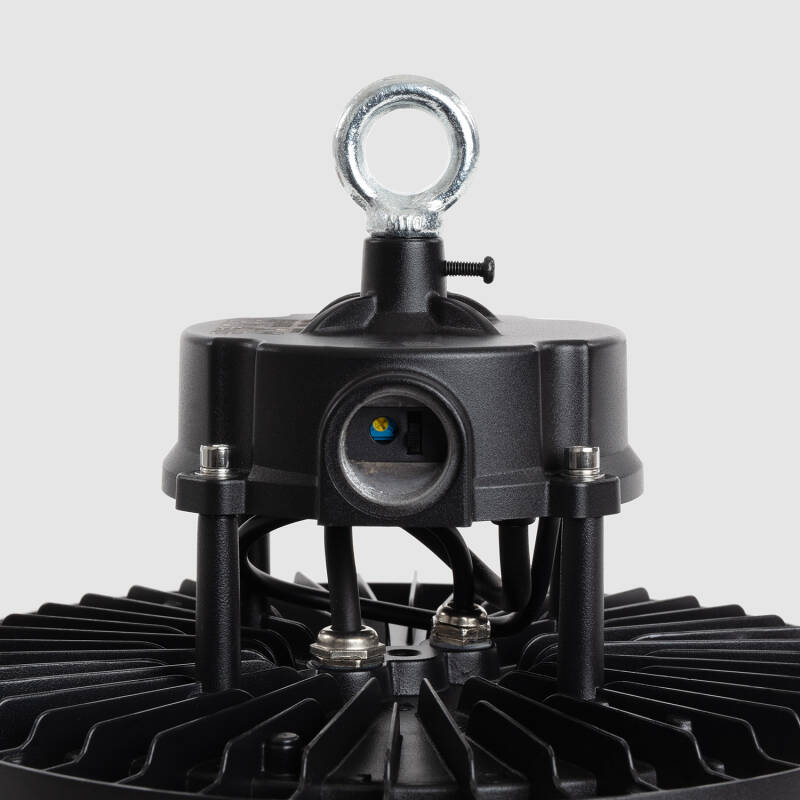

Image of HBD EVO 0-10V High Bay 170Llm/W 80,000hrs

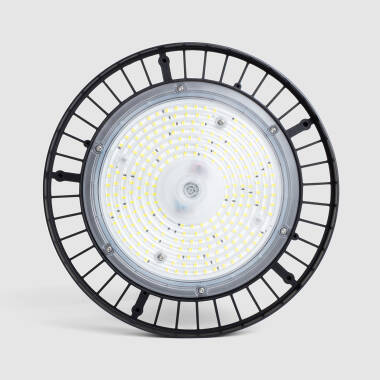

Image of HBD EVO 0-10V High Bay 170Llm/W 80,000hrs

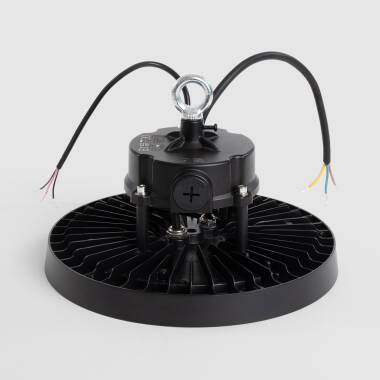

Image of HBD EVO 0-10V High Bay 170Llm/W 80,000hrs

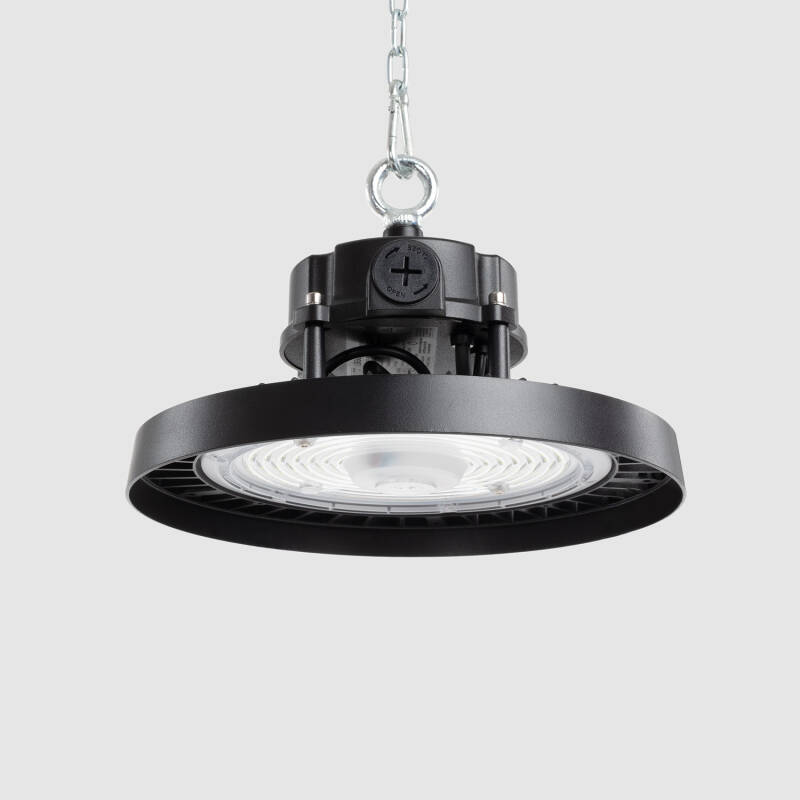

Image of HBD EVO 0-10V High Bay 170Llm/W 80,000hrs

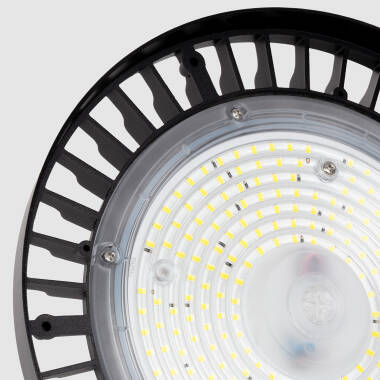

Image of HBD EVO 0-10V High Bay 170Llm/W 80,000hrs

HBD EVO 0-10V High Bay 170Llm/W 80,000hrs

Ref. Lyco: NLY0015986

HBM EVO 0-10V High Bay 200 Llm/W

Premium range

£65.50

Wattage 150 W

Colour Temperature Cool White 4000K

Optic 60º

Sensor Type Without sensor

    VAT not included £44.68

    £53.62

    Energetic efficiency
    Product information sheet

    IN STOCK - Delivered in 1 to 2 working days

      30 Day Credit Terms

      • 30 Day Return

        Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


        For more information view our Returns policy.

      • Want your items fast?

        Check our delivery cut-off times below:


        Mon – Thu: Order before 8:45 PM for 24/48h delivery.


        Friday: Order before 3:00 PM for 24/48h delivery.


        Full conditions here: Delivery methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

      • Up to 5 year warranty

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.

    Dimensions

    • Height180 mm
    • Diameter248 mm
    • Depth305 mm
    • Width305 mm

    Downloads

    • pdf file

      LIFUD Driver Datasheet

    Certificates and Stamps

    CertificateCertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • DimmableYes
      • Electrical Insulation ClassI
      • Frequency50-60 Hz
      • Light SourceLUMILEDS SMD2835
      • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
        Nominal Voltage220 V - 240 V
      • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
        Overvoltage Protection6 kV
      • Type Of Dimming0-10 V
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC
      • Wattage150 W

    • Mechanical Features

      • Coastal ResistantNo
      • Ability to move or rotate the spotlight to direct the light as desired.
        DirectionalNo
      • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
        IK ProtectionIK08
      • InstallationPendant
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP65
      • LocationOutdoor
      • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
        Optic60º
      • Sensor TypeWithout sensor

    • Product Information

      • BrandLyco
      • CertificatesCE, RoHS, UKCA, ENEC
      • Guarantee5 years
      • Product SeriesHBD EVO

    • Materials and Finishes

      • ColourBlack
      • Fitting MaterialAluminium
      • IncludesDriver LIFUD
      • Not IncludedRemote

    • LED Features

      • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
        Colour Rendering Index80
      • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
        Colour Temperature4000K
      • Light ColourCool White
      • Lumen25500 lm
      • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
        Luminous Efficiency170 lm/W
      • Number of LEDs240
      • Power Factor0.95

    • Product Data

      • Product FormatHigh Bay Lighting
      • Product typeIndustrial Highbays

    • Driver Information

      • Driver Intensity370 mA - 620 mA
      • Driver Power150 W
      • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
        Driver Tension180 V-260 V
      • Type Of DriverLIFUD 0-10V dimmable NO flicker
