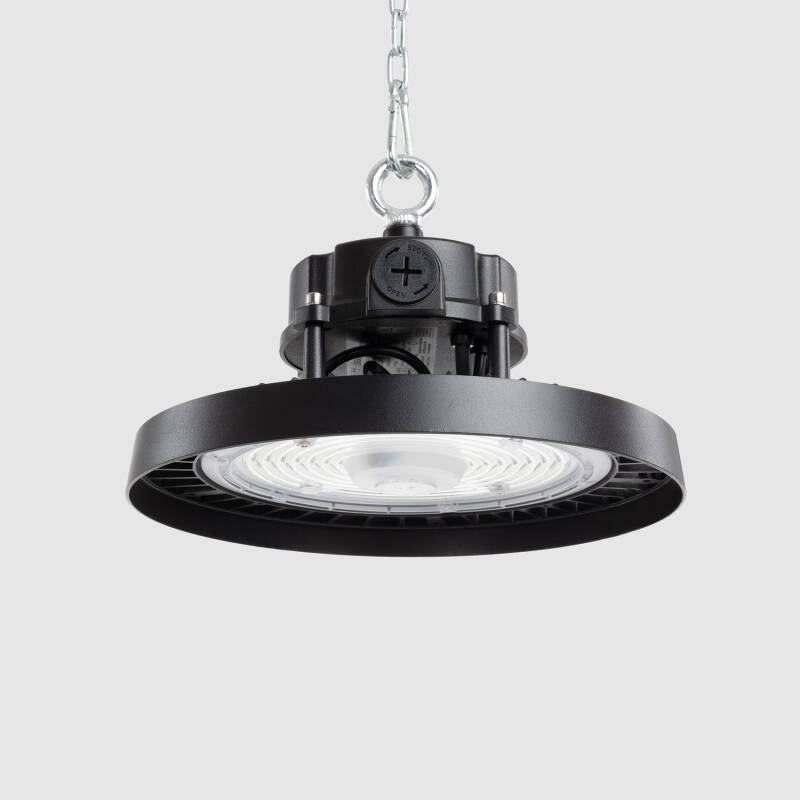

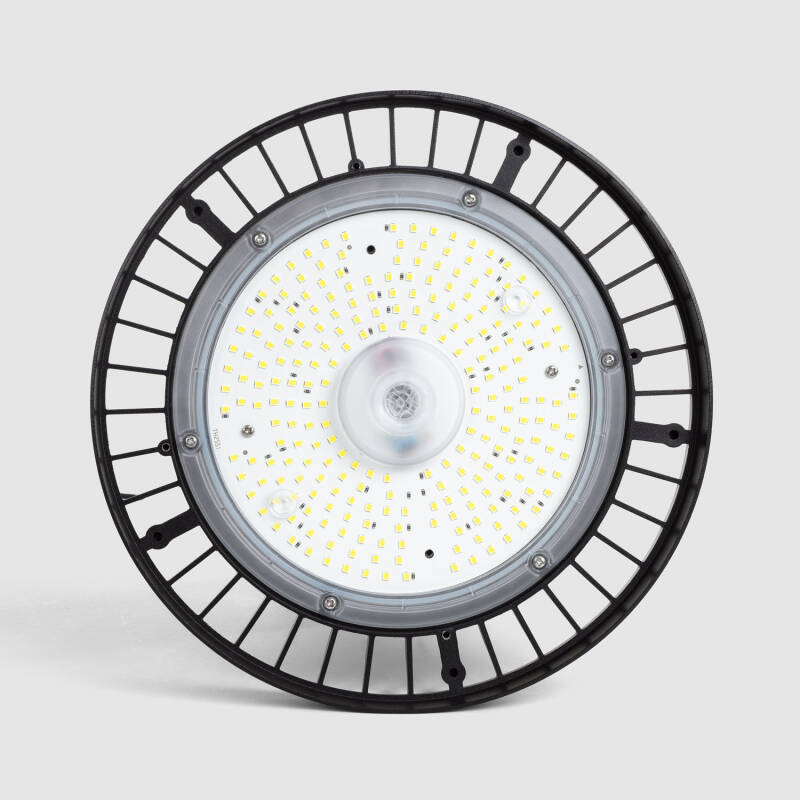

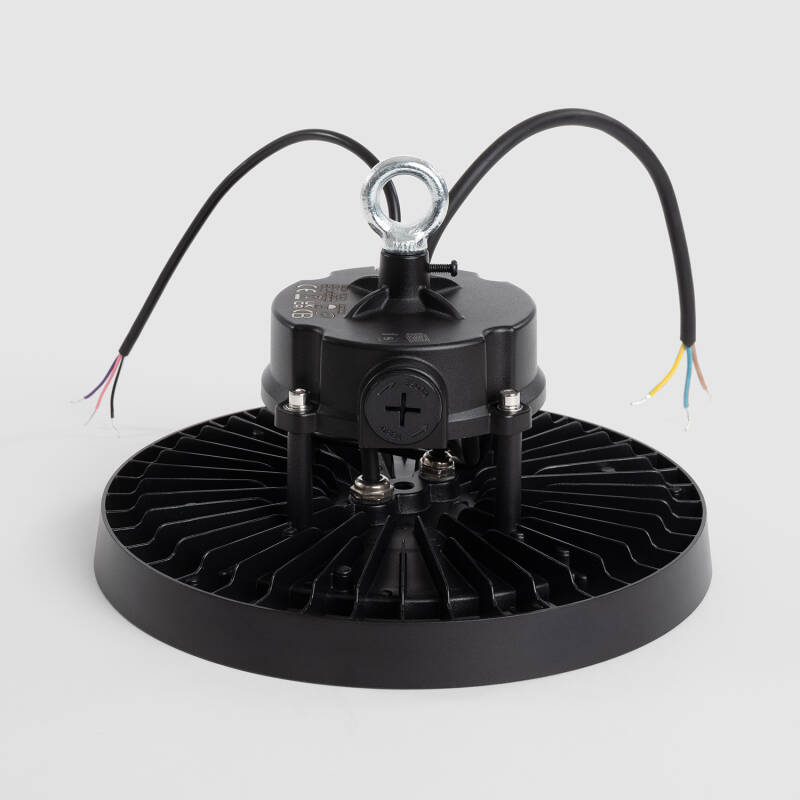

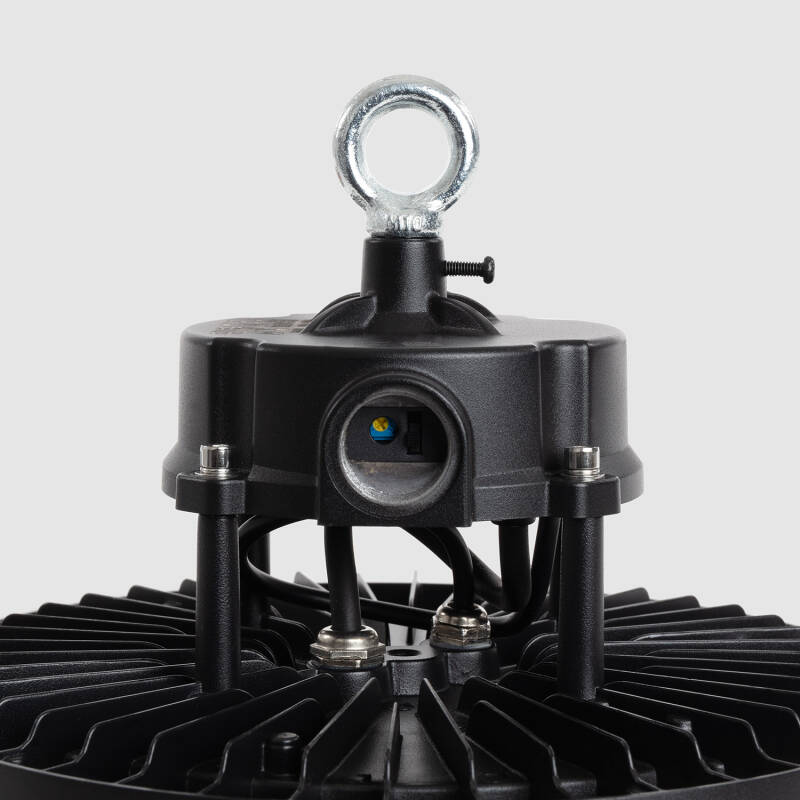

HBD EVO 0-10V High Bay 170Llm/W 80,000hrs

Ref. Lyco: NLY0013263

HBM EVO 0-10V High Bay 200 Llm/W

Premium range

£65.50

Wattage 100 W

Colour Temperature Daylight 5000K

Optic 120º

Sensor Type Without sensor

    VAT not included £46.24

    £55.49

    Energetic efficiency
    Product information sheet

    Delivered in 8 to 14 working days

      30 Day Credit Terms

      • 30 Day Return

        Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


        For more information view our Returns policy.

      • Want your items fast?

        Check our delivery cut-off times below:


        Mon – Thu: Order before 8:45 PM for 24/48h delivery.


        Friday: Order before 3:00 PM for 24/48h delivery.


        Full conditions here: Delivery methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

      • Up to 5 year warranty

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.

    Dimensions

    • Height180 mm
    • Diameter248 mm

    Downloads

    • pdf file

      LIFUD Driver Datasheet

    Certificates and Stamps

    CertificateCertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • DimmableYes
      • Electrical Insulation ClassI
      • Frequency50-60 Hz
      • Light SourceLUMILEDS SMD2835
      • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
        Nominal Voltage220 V - 240 V
      • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
        Overvoltage Protection6 kV
      • Type Of Dimming0-10 V
      • Voltage level required for the product to function correctly.
        Voltage Range220-240V AC
      • Wattage100 W

    • Mechanical Features

      • Coastal ResistantNo
      • Ability to move or rotate the spotlight to direct the light as desired.
        DirectionalNo
      • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
        IK ProtectionIK08
      • InstallationPendant
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP65
      • LocationOutdoor
      • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
        Optic120º
      • Sensor TypeWithout sensor

    • Product Information

      • BrandLyco
      • CertificatesCE, RoHS, UKCA, ENEC
      • Guarantee5 years
      • Product SeriesHBD EVO

    • Materials and Finishes

      • ColourBlack
      • Fitting MaterialAluminium
      • IncludesDriver LIFUD
      • Not IncludedRemote

    • LED Features

      • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
        Colour Rendering Index80
      • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
        Colour Temperature5000K
      • Light ColourDaylight
      • Lumen17000 lm
      • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
        Luminous Efficiency170 lm/W
      • Number of LEDs195
      • Power Factor0.95

    • Product Data

      • Product FormatHigh Bay Lighting
      • Product typeIndustrial Highbays

    • Driver Information

      • Driver Intensity300 mA-500 mA
      • Driver Power120 W
      • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
        Driver Tension180 V-260 V
      • Type Of DriverLIFUD 0-10V dimmable NO flicker
    Outdoor Lights

    Key Features

    High-performance Envirolight HBD Evo High Bay luminaire designed for demanding industrial environments. Features a robust aluminium housing with IP65 and IK08 protection ratings, ensuring resistance to dust, moisture, and mechanical impact. Equipped with 195 LUMILEDS SMD2835 LEDs delivering up to 17,000 lumens at 5000K daylight colour temperature, with a luminous efficacy of 170 lm/W. The optic provides a wide 120º beam angle for optimal area illumination. Integrated LIFUD LF-FHB120YD driver supports 0-10V dimming with no flicker, operating within a voltage range of 180-260V and a power factor of 0.95. The driver is replaceable, enhancing maintenance flexibility. The product is rated for continuous operation in ambient temperatures from -40°C to +50°C and includes overvoltage protection up to 6 kV. Colour rendering index (CRI) of 80 ensures accurate colour perception. Ideal for outdoor industrial applications requiring reliable, efficient, and durable high bay lighting solutions.
