Image of HBD/HBM Evo Sensor Zigbee
Image of HBD/HBM Evo Sensor Zigbee
Image of HBD/HBM Evo Sensor Zigbee
Image of HBD/HBM Evo Sensor Zigbee

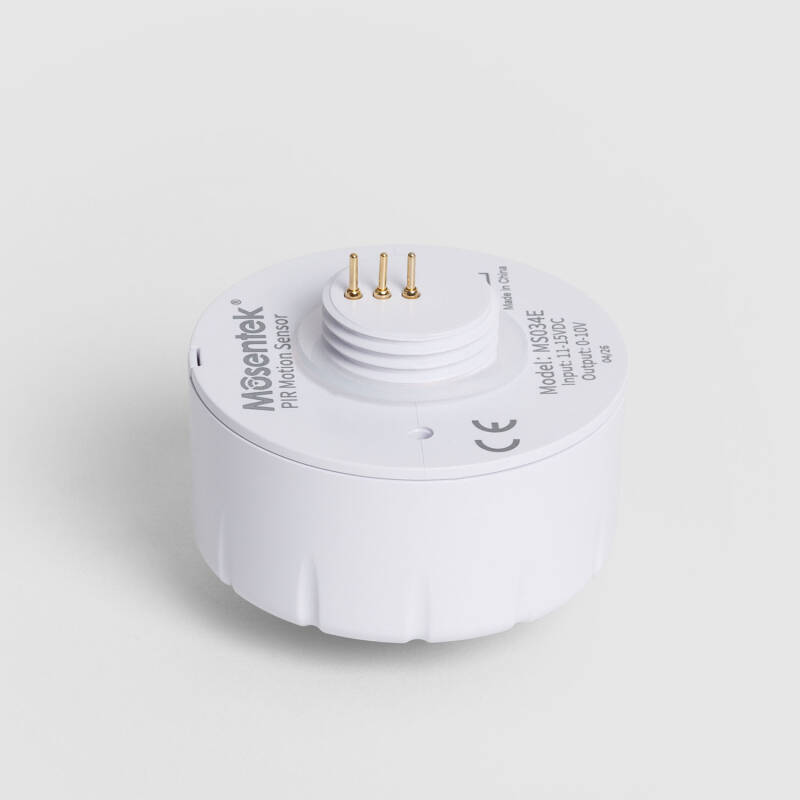

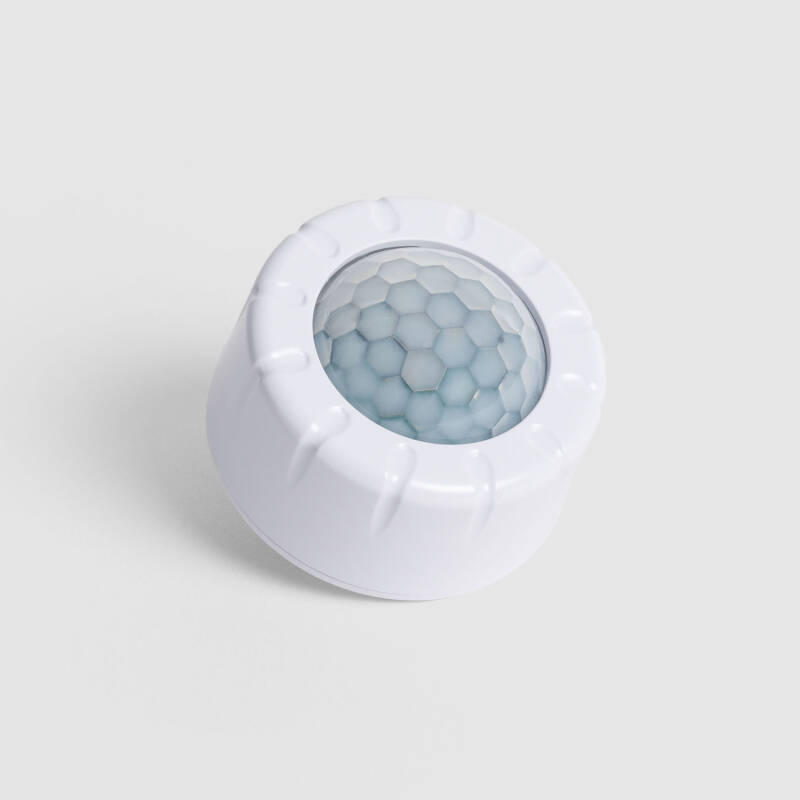

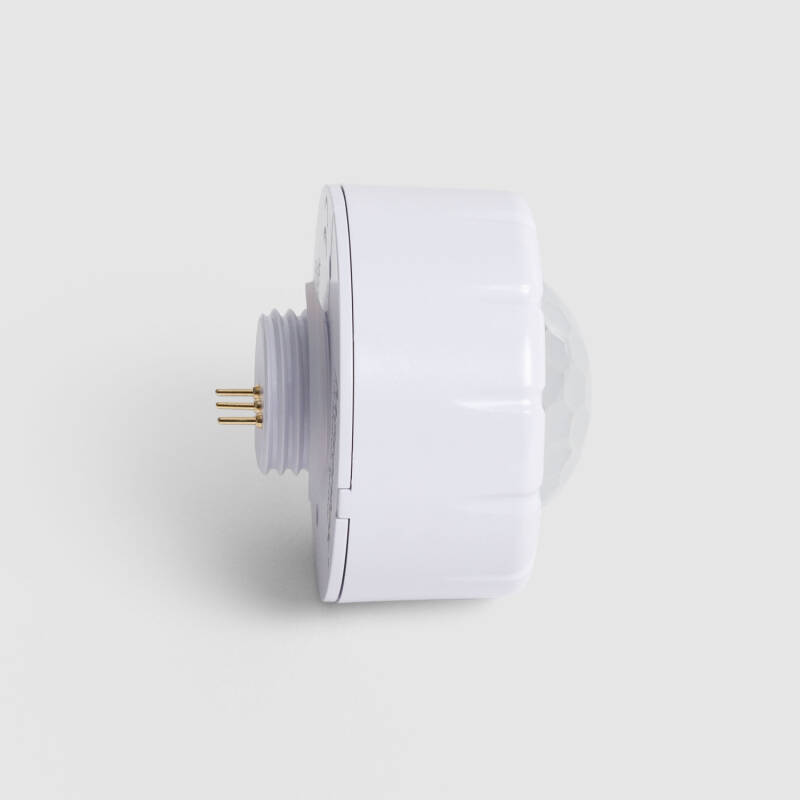

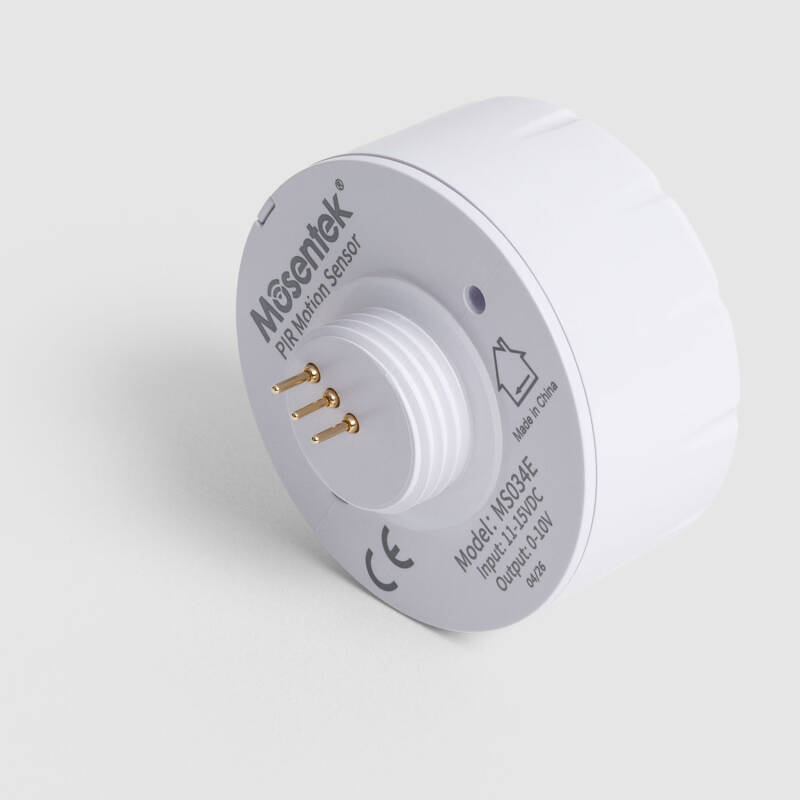

HBD/HBM Evo Sensor Zigbee - PIR Sensor

Ref. Lyco: NLY0015923

Sensor Type PIR Motion

    VAT not included £12.91

    £15.49

    Currently out of stock - Back in Stock Soon

      30 Day Credit Terms

      • 30 Day Return

        Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


        For more information view our Returns policy.

      • Want your items fast?

        Check our delivery cut-off times below:


        Mon – Thu: Order before 8:45 PM for 24/48h delivery.


        Friday: Order before 3:00 PM for 24/48h delivery.


        Full conditions here: Delivery methods.

      • 100% secure payments

        payment method image 1

        payment method image 2

        At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

      • Up to 5 year warranty

        Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


        You will find the exact product warranty in the technical details.

    Dimensions

    • Height28 mm
    • Diameter49 mm

    Downloads

    • pdf file

      Radar Sensor Instruction Manual 17600-356377

    • pdf file

      PIR Sensor Instruction Manual 176002-363086

    • pdf file

      Bluetooth Radar Sensor Manual 176002-362859

    • pdf file

      Bluetooth PIR Sensor Instruction Manual 176002-362865

    • pdf file

      PIR Sensor + Zigbee Instruction Manual 176002-362862

    Certificates and Stamps

    CertificateCertificateCertificateCertificate

    Technical Specifications

    • Electrical Features

      • Replaceable Light SourceNo
      • Sensitivity5 Lux~300 Lux
      • Voltage level required for the product to function correctly.
        Voltage Range12V DC

    • Mechanical Features

      • Coastal ResistantNo
      • InstallationSurface
      • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
        IP RatingIP65
      • LocationOutdoor, Indoor
      • SensorPIR
      • Sensor TypePIR Motion

    • Product Information

      • CertificatesCE, RoHS, UKCA, ERP
      • Guarantee5 years
      • Product SeriesHBM EVO

    • Product Data

      • Product FormatAccessory
      • Product typeIndustrial Highbays

    • Materials and Finishes

      • ColourTranslucent White
      • Fitting MaterialPC
    Outdoor Lights

    Key Features

    - Operating voltage: 12V DC - Protection rating: IP65, suitable for both indoor and outdoor environments - Sensor type: PIR motion detection with sensitivity range from 5 Lux to 300 Lux - Installation: Surface mounting compatible with industrial highbay lighting - Connectivity: Zigbee protocol integration for intelligent control systems and Industry 4.0 platform compatibility - Maximum installation height: 12 metres - Detection range: 4 to 8 metres - Material: Durable polycarbonate (PC) housing in translucent white finish - Certifications: CE, ERP, RoHS, UKCA compliant, ensuring adherence to safety and environmental standards - Warranty: 5 years guarantee for reliable long-term operation - Designed for dimmable highbay LED luminaires, enabling efficient energy management and secure electrical installation.
