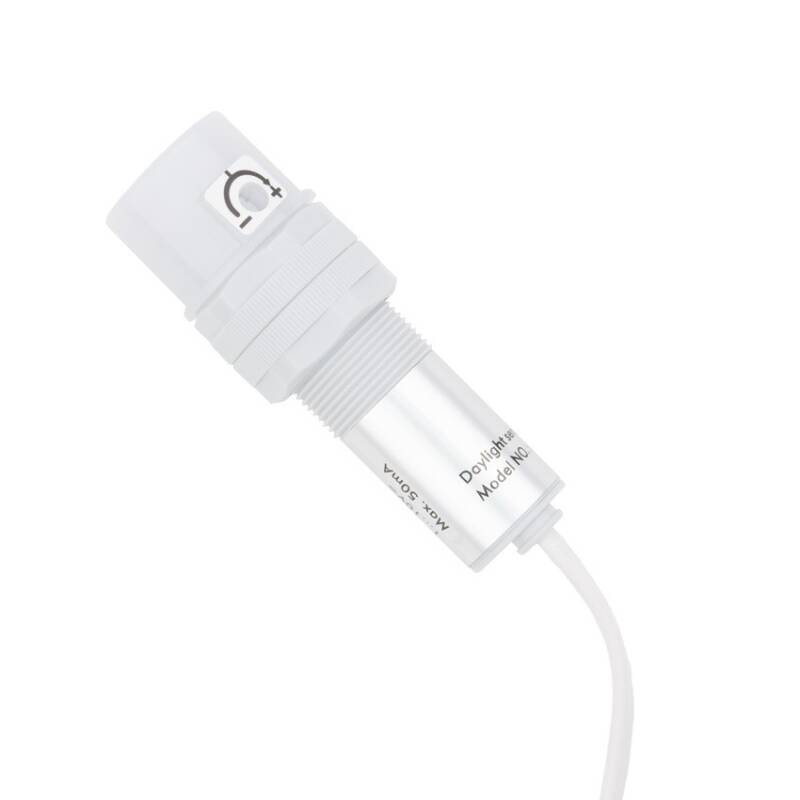

Image of 1-10V Photoelectric / Twilight Sensor

1-10V Photoelectric / Twilight Sensor

Ref. Lyco: E1625

VAT not included £12.91

£15.49

Delivered in 8 to 14 working days

    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • 24h Free Delivery on Orders Over £70

      If you place your order today before 8:45 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 70.00 (incl. VAT).

      Please note this delivery service is subject to stock availability



      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

Dimensions

  • Diameter25 mm
  • Height60 mm
  • Cable Length800 mm
  • Cut Out DimensionsØ17 mm

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Mechanical Features

    • Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
      Detection Range160 °
    • InstallationRecessed
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • SensorDusk to Dawn
    • Sensor TypeDaylight

  • Product Data

    • Product FormatDusk to Dawn
    • Product typeSensors

  • Electrical Features

    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC

  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, UKCA
    • Guarantee3 years

  • Materials and Finishes

    • Fitting MaterialPC
Summer lights

Description

The 1-10V Photoelectric/Twilight Sensor has a 360° detection area and a 1-100% adjustment range.

This twilight sensor is compatible with luminaires equipped with 1-10V dimmable drivers. Its gradual operating mode increases and decreases the light from the luminaires with respect to the predefined ambient light level (it has a controller to modify its behaviour with respect to the ambient light). Therefore, the 1-10V photoelectric/creep sensor increases the intensity of the luminaires when the ambient light decreases and conversely, if the ambient light increases, the sensor reduces the intensity of the luminaires, always allowing adequate lighting in an efficient manner.

This type of devices allows us to optimize the efficiency of the lighting system to the maximum, since we take advantage of the natural light available at any moment. A very interesting option is to combine the photoelectric/crepuscular sensor 1-10V with a presence detector to completely automate the operation of the luminaire.

This product includes 70cm of wiring, and its installation can be either recessed or surface mounted.

* Compatible with adjustable 1-10V drivers
