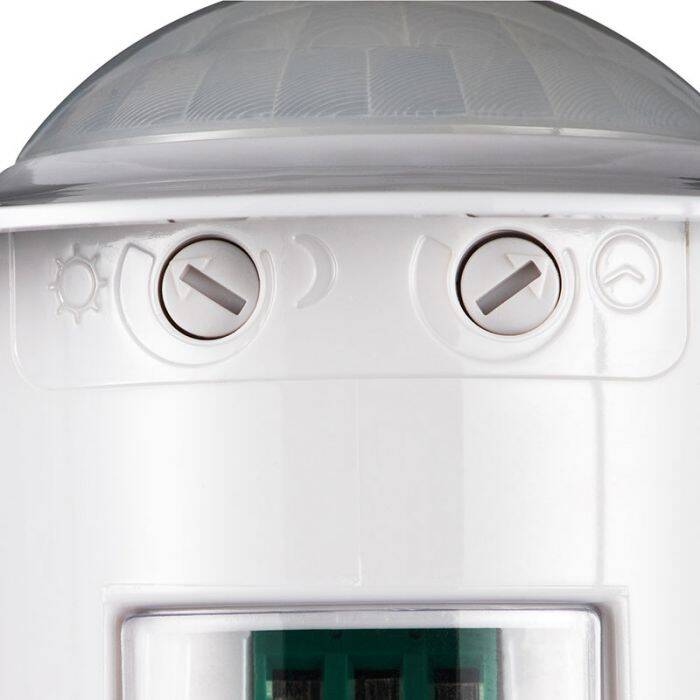

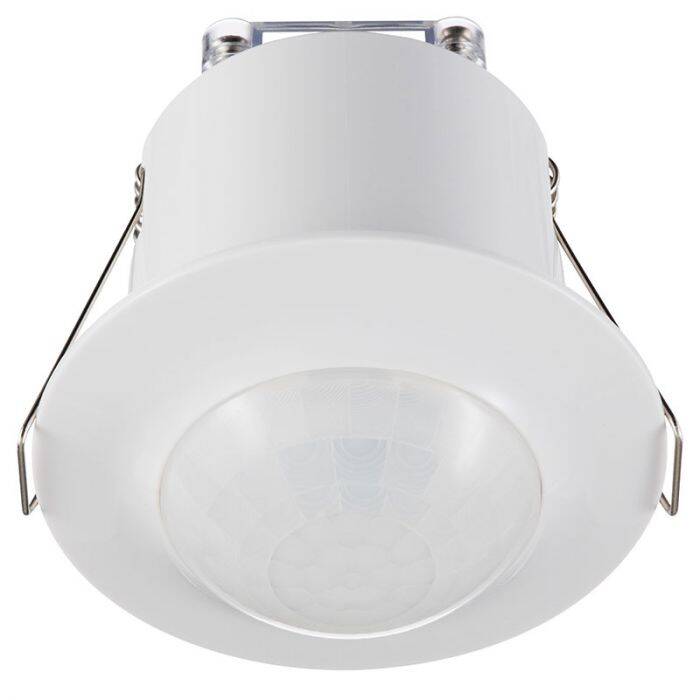

Timeguard Suretime 200W LED PIR Sensor
Ref. Lyco: 83342
Colour White
£25.00
VAT not included £9.83
£11.80
IN STOCK - Delivered in 1 to 2 working days
(1)5 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Cut Out Dimensions60mm
- Depth76 mm
- Width82 mm
Downloads
PDF Datasheet 163902_337824 EN
Technical Specifications
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Mechanical Features
- IP RatingIP44The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
Product Information
- BrandSmiths Timeguard
- Guarantee2 years
Materials and Finishes
- ColourWhite
Key Features
- Recessed PIR sensor, with up to 8 metre and 360° detection range
- 8 metre detection range achieved when mounted at 2.5 metre
- Lux level before activation adjustable between 10 - 1000
- Will switch up to 1,000W incandescent and 200W on all other technologies (incl LED)
- Time on adjustable between 3 seconds and 18 minutes
- Can be over-ridden to have light permanently on for max 6 hours
- Up to 5 units can be wired in parallel. Total load must not exceed the max of one unit
- IP44 rated
- Size: H 76 x Dia 82mm Cut out - Dia 60mm
