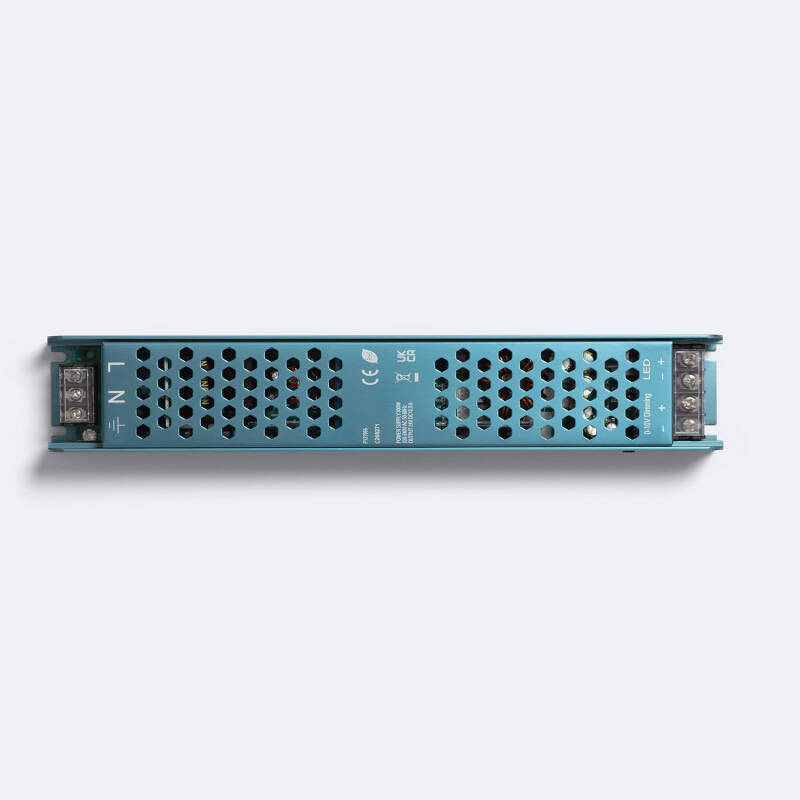

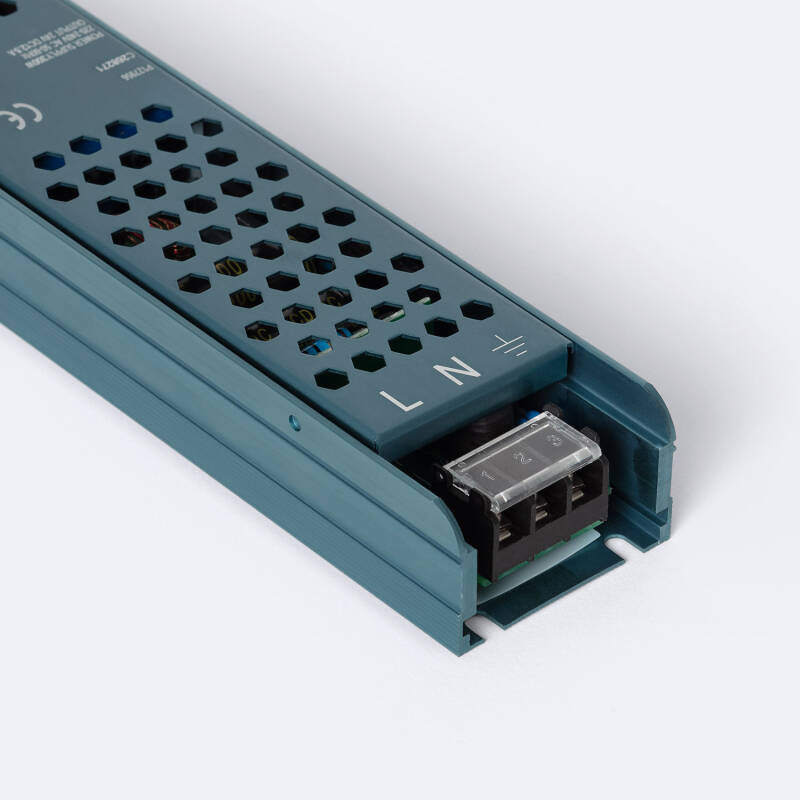

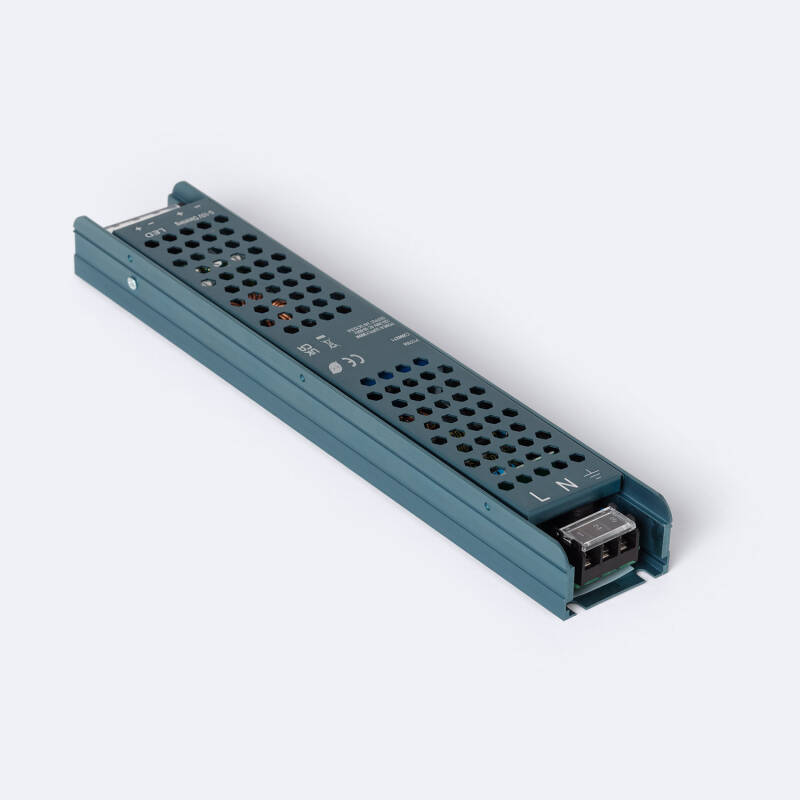

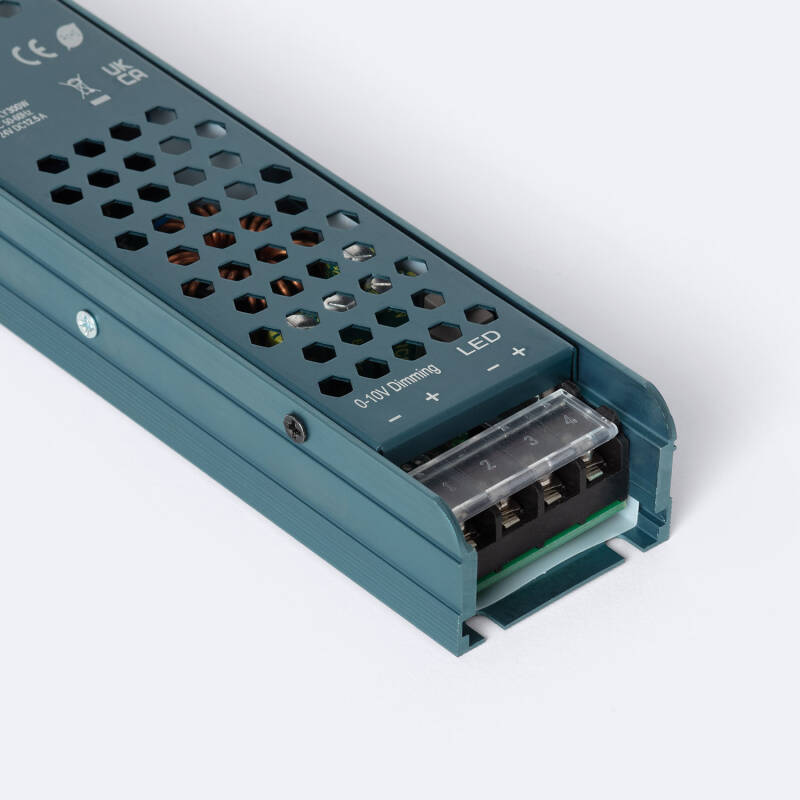

Image of 0-10V + TRIAC Mains Dimmable Driver
Image of 0-10V + TRIAC Mains Dimmable Driver
Image of 0-10V + TRIAC Mains Dimmable Driver
Image of 0-10V + TRIAC Mains Dimmable Driver

IP20 24VDC 300W 12500mA 31x 49x232 mm

Ref. Lyco: NLY0005701

Wattage 300 W

VAT not included £41.66

£49.99

Delivered in 8 to 14 working days

    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • Want your items fast?

      Check our delivery cut-off times below:


      Mon – Thu: Order before 8:45 PM for 24/48h delivery.


      Friday: Order before 3:00 PM for 24/48h delivery.


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

Dimensions

  • Depth232 mm
  • Height31 mm
  • Width49 mm

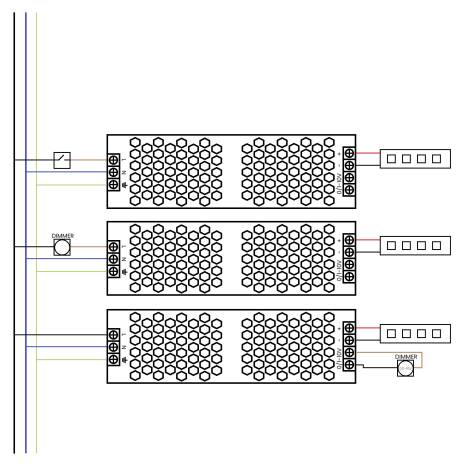

Scheme image

Certificates and Stamps

CertificateCertificate

Technical Specifications

  • Electrical Features

    • Current Intensity12.5 A
    • DimmableYes
    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 265 V
    • It is the amount of voltage the product delivers to its components, such as LEDs or connected devices, for operation. This value is crucial to ensure safe and efficient operation.
      Output Voltage24V DC
    • Type Of Dimming0-10 V, TRIAC
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage300 W

  • Product Data

    • Product FormatLED Driver
    • Product typePower supplies

  • LED Features

    • Power Factor0.95

  • Materials and Finishes

    • ColourBlack
    • Fitting MaterialAluminium

  • Mechanical Features

    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor

  • Product Information

    • CertificatesCE, RoHS
    • Guarantee3 years
Outdoor Lights

Key Features

- 0-10V and TRIAC mains dimmable driver - 300 W power output - Compact dimensions: 31 mm (height) x 49 mm (width) x 232 mm (depth) - Suitable for indoor use with IP20 protection rating - High power factor of 0.95 for efficient energy use - Voltage range: 100 V to 265 V nominal, 220-240V AC frequency - Output voltage: 24V DC - Electrical insulation class I - Ambient working temperature range from -20 °C to +50 °C - Manufactured from aluminium for durability - Certified with CE and RoHS standards - Includes 3-year guarantee - Compatible with both 0-10 V and TRIAC dimming types - Designed for LED driver applications
