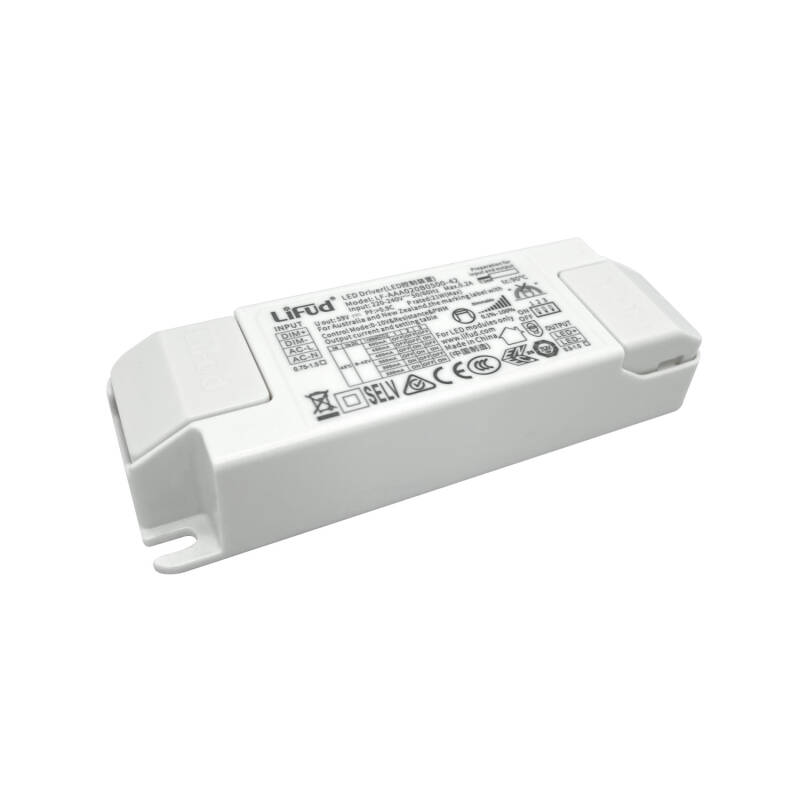

21W Dimmable LIFUD Driver 1-10V 220-240V Output 9-42V 250-500mA LF-AAA020B0500

Ref. Lyco: E1966

VAT not included £13.74

£16.49

IN STOCK - Delivered in 1 to 2 working days

Buy more, pay less

  • +5 Units: £15.67 / unit

  • For more amounts

    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • 24h Free Delivery on Orders Over £70

      If you place your order today before 8:45 pm, delivery within 24/48h (working days).


      Shipping is free on purchases over £ 70.00 (incl. VAT).

      Please note this delivery service is subject to stock availability



      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

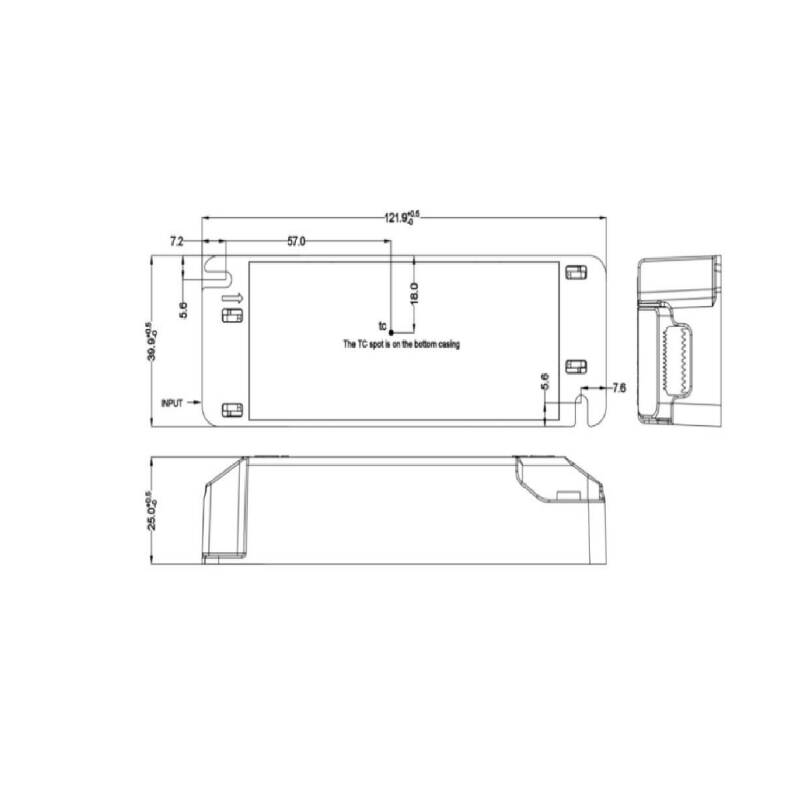

Dimensions

  • Depth122 mm
  • Height25 mm
  • Width40 mm

Certificates and Stamps

CertificateCertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • DimmableYes
    • Electrical Insulation ClassII
    • Frequency50-60 Hz
    • Type Of Dimming1-10 V
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage21 W

  • Mechanical Features

    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
      Working Temperature-20 °C~+40 °C

  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, TÜV, ENEC
    • Guarantee5 years
    • Product SeriesAAAXXXB

  • Product Data

    • Product FormatLED Driver
    • Product typeDriver

  • LED Features

    • Power Factor0.93

  • Driver Information

    • Driver Intensity250 mA-500 mA
    • Driver Power21 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension9 V-42 V

  • Materials and Finishes

    • Fitting MaterialPC
Summer lights

Description

Driver of the prestigious company LIFUD specially designed for any application because at its exit it does not incorporate any connector. An LED driver is responsible for transforming the alternating current of the mains into direct current suitable for the LED chips to shine. To find out if a driver will work with our luminaire, PCB or panel we will have to check the voltage and output current of the driver.

Features of the 18W 27-42V Output 100-277V 500mA Flicker-Free 1-10V Dimmable LIFUD Driver LF-GDE023YF

This Driver has multi-voltage input. This means that it is able to withstand ups and downs of the line voltage for a short period of time without suffering damage. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the use of the same driver for various applications with different current and voltage requirements. Once the driver is powered, the voltage will be adjusted automatically and the voltage to the output will be constant. The 1-10V Dimmable driver should be used in conjunction with a 1-10V LED dimmer that will allow us to easily select the desired light intensity. Its power factor is very high, making it a very efficient driver.
