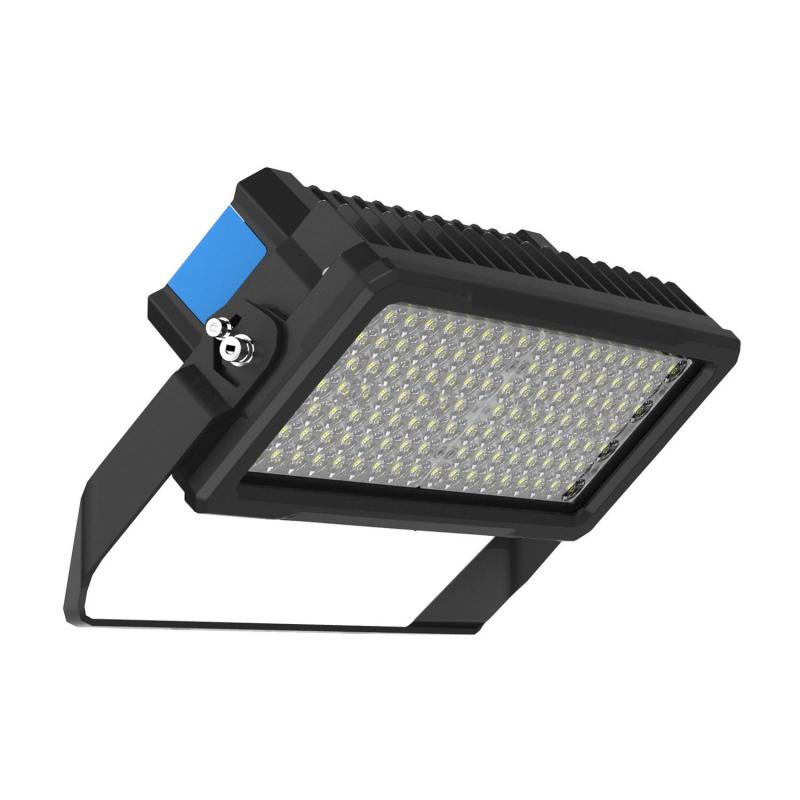

Sports Pro IP66 Floodlight 1 Module 300W-48000lm 5000K 1-10V 150x60º

Technical Specifications

• Electrical Features

  • DimmableYes
  • Electrical Insulation ClassI
  • Frequency50-60 Hz
  • Light SourceLUMILEDS 3030
  • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
    Nominal Voltage100 V - 277 V
  • Product's ability to withstand voltage spikes or electrical overloads, protecting internal components from potential damage due to current fluctuations.
    Overvoltage Protection10 kV
  • Replaceable Light SourceYes
  • Type Of Dimming1-10 V
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Wattage300 W

• Mechanical Features

  • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
    IK ProtectionIK08
  • InstallationSurface
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP66
  • LocationOutdoor, Indoor
  • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
    OpticAsymmetrical 150ºx60º

• Product Information

  • CertificatesCE, RoHS, UKCA
  • Guarantee7 years
  • Product SeriesStadium PRO-I

• LED Features

  • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
    Colour Rendering Index80
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature5000K
  • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
    LED Performance170 lm/W
  • Light ColourDaylight
  • Lumen45000 lm
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency150 lm/W
  • Power Factor0.95

• Product Data

  • Product FormatStandard Floodlight
  • Product typeFloodlights

• Materials and Finishes

  • ColourBlack
  • Fitting MaterialSteel, Aluminium, Glass, PC
  • IncludesDriver

• Driver Information

  • Driver Intensity7600 mA
  • Driver Power456 W
  • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
    Driver Tension21 V-60 V
