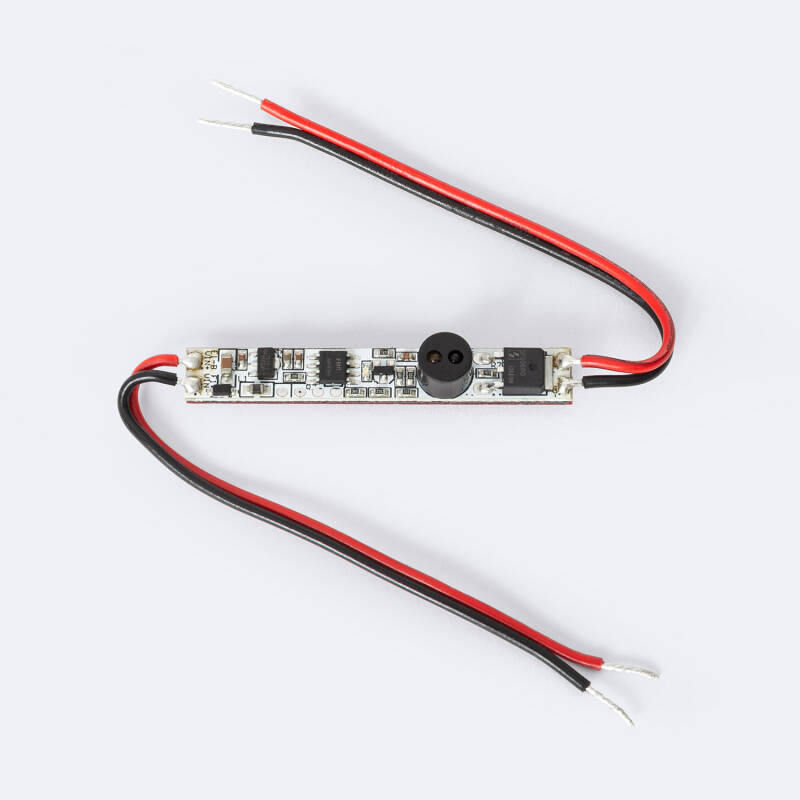

Image of InlineMini 120º PIR Hand Gesture Sensor for LED Strip

IP20 12/24VDC 72W Mono/CCT/RGB/RGBW 9x8x55mm

Ref. Lyco: E50161

Light Colour Monocolor / CCT / RGB / RGBW / RGBWW

VAT not included £4.99

£5.99

In Stock, Delivered in 1 to 2 working days

    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • Want your items fast?

      Check our delivery cut-off times below:


      Mon – Thu: Order before 8:45 PM for 24/48h delivery.


      Friday: Order before 3:00 PM for 24/48h delivery.


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

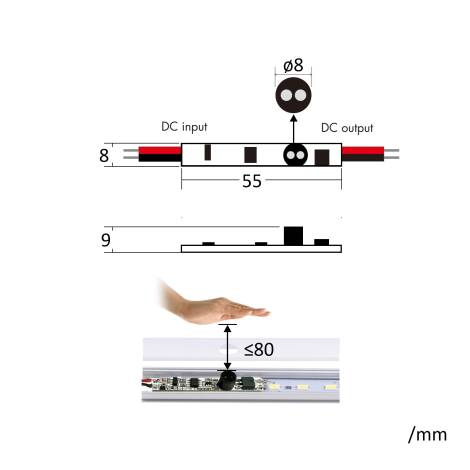

Dimensions

  • Depth55 mm
  • Width8 mm
  • Height9 mm
Scheme image

Downloads

  • pdf file

    IM_228834

Certificates and Stamps

CertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • Max Wattage96 W
    • Voltage level required for the product to function correctly.
      Voltage Range12V DC, 24V DC

  • Product Data

    • Product FormatPIR Light Controller
    • Product typeSensors

  • Mechanical Features

    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP20
    • LocationIndoor
    • Sensor TypeContactless

  • Materials and Finishes

    • ColourWhite
    • Fitting MaterialPCB

  • Product Information

    • CertificatesCE, RoHS, UKCA
    • Guarantee5 years

  • LED Features

    • Light ColourMonocolor / CCT / RGB / RGBW / RGBWW
Outdoor Lights

Key Features

Operating at 12V or 24V DC voltage, this Inline Mini 120º PIR Hand Gesture Sensor is designed for LED strip applications with a maximum power rating of 96W. It features an IP20 protection rating suitable for indoor environments, ensuring compliance with safety standards. The sensor provides contactless gesture detection within a 120-degree field of view, facilitating efficient and hygienic control. Its compact dimensions (9 mm x 8 mm x 55 mm) and PCB construction allow for straightforward integration into electrical installations. Certified to CE, RoHS, and UKCA standards, it guarantees reliability and adherence to regulatory requirements, making it a secure and compatible choice for professional electricians and installers.

Description

Transform your spaces with the Contactless Mini Sensor Switch for 12/24V DC LED Strips . The hand sensor switch designed specifically for LED strips. This switch is activated simply by a hand sweep, allowing the LED strip to turn on gradually and, with a new gesture, turn off just as smoothly. Ideal for those seeking contemporary and uncomplicated lighting.

With a capacity of up to 4A of output current and a maximum of 96W at 24V, this device is perfect for multiple applications, whether in table lamps or other lighting systems. Its compact design, complemented by a 3M adhesive tape on the base, facilitates easy and secure installation anywhere. It is a great option for living rooms, bedrooms, closets, or any area where you want contactless control. Technically, this switch complies with the highest safety and EMC regulations. It operates with an input and output of 12-24VDC, and has protection against reverse polarity.

Important note: For optimal functionality, make sure not to expose the sensor directly to sunlight and follow the installation instructions provided.
