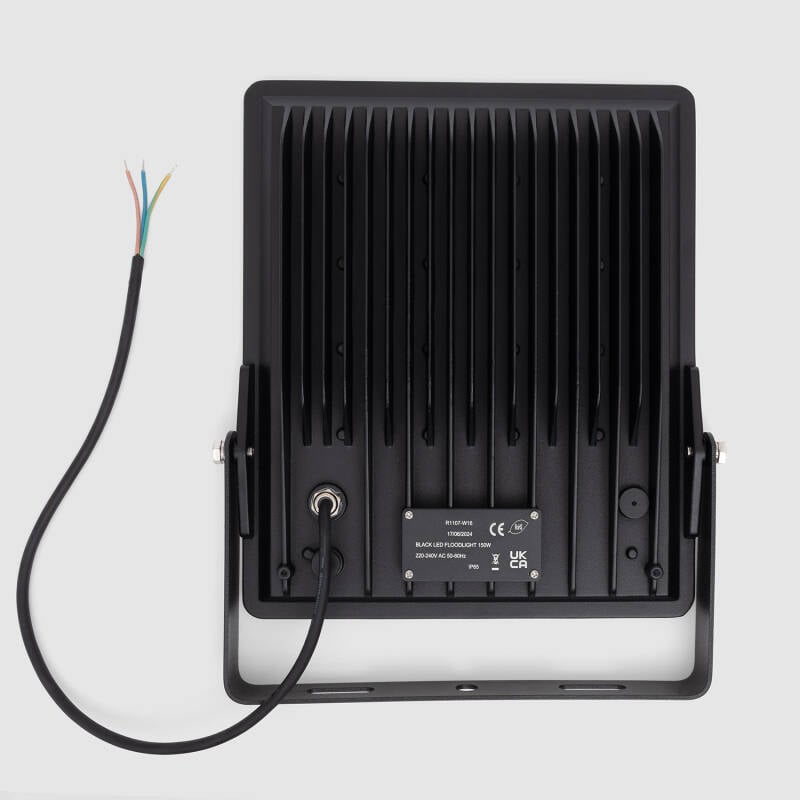

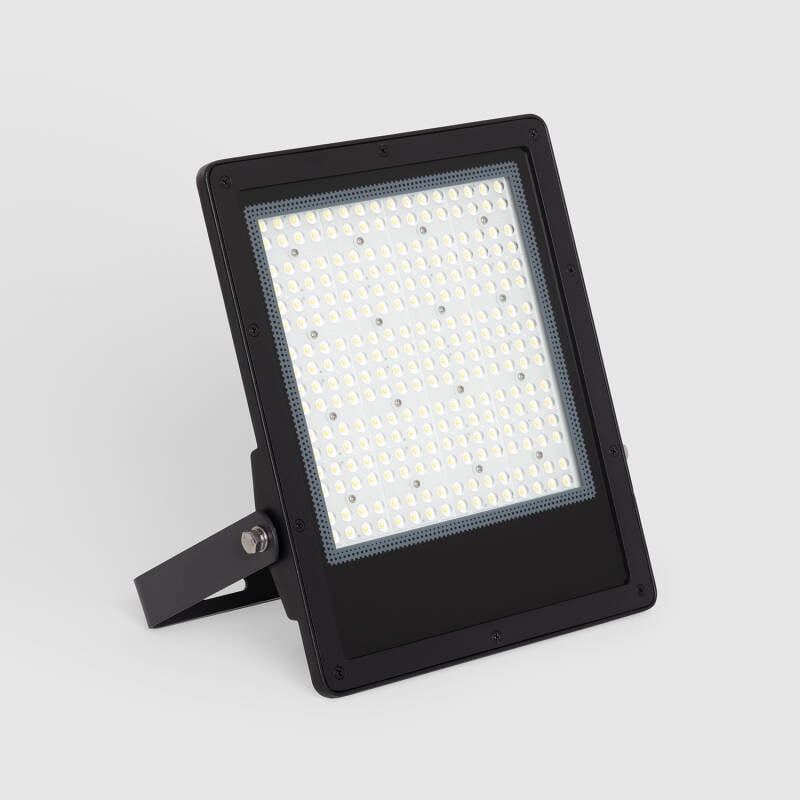

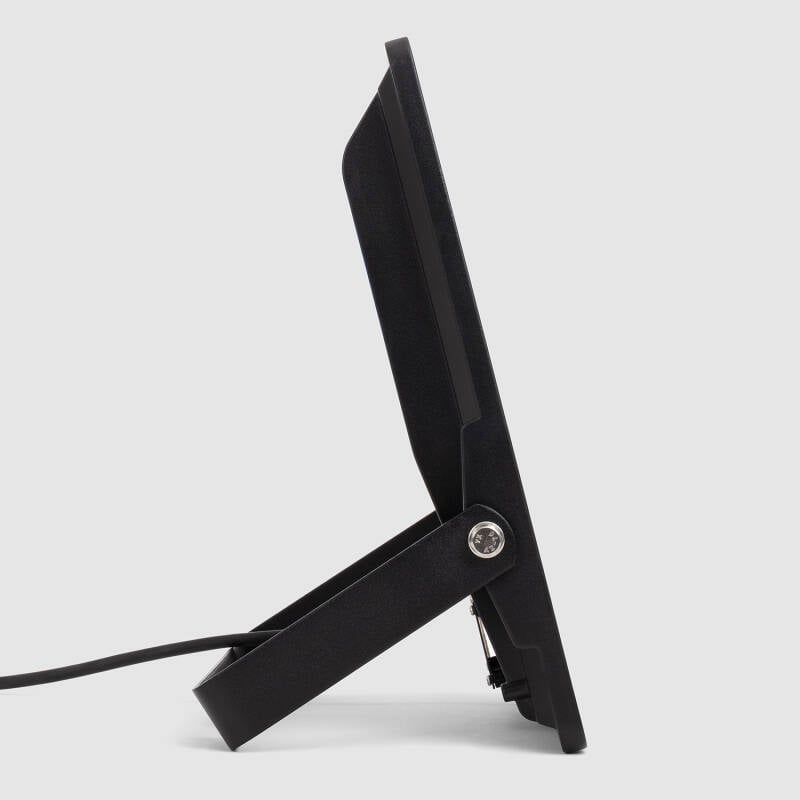

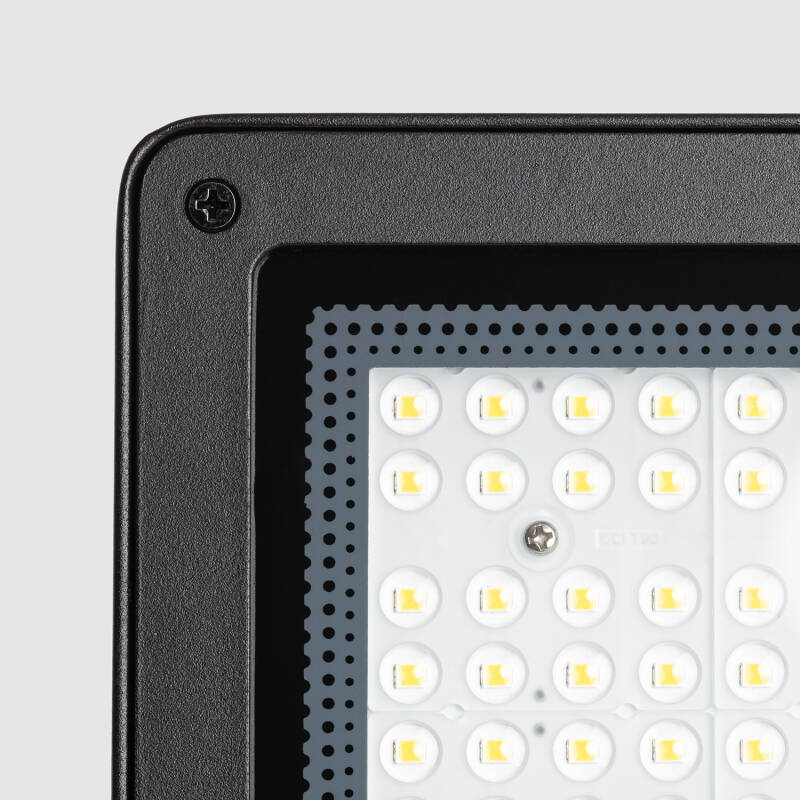

TRIAC Dimmable LED Floodlight 150W-18000lm - Cool White 4000K - Asymmetrical 80ºx155º

Technical Specifications

• Electrical Features

  • DimmableYes
  • Electrical Insulation ClassI
  • Frequency50-60 Hz
  • Light SourceSMD2835
  • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
    Nominal Voltage190 V - 260 V
  • Replaceable Light SourceYes
  • Type Of DimmingTRIAC
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Wattage150 W

• Mechanical Features

  • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
    IK ProtectionIK08
  • InstallationSurface
  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP65
  • LocationOutdoor
  • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
    OpticAsymmetrical 80ºx155º
  • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
    Working Temperature-30 °C~+45 °C

• Product Information

  • CertificatesCE, RoHS, UKCA
  • Guarantee5 years
  • Product SeriesElegance

• LED Features

  • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
    Colour Rendering Index70
  • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
    Colour Temperature4000K
  • Efficiency of the LEDs, measured as the amount of light generated per unit of energy consumed (lumens per watt). High efficiency ensures energy savings without losing light quality.
    LED Performance170 lm/W
  • Light ColourCool White
  • Lumen18000 lm
  • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
    Luminous Efficiency120 lm/W
  • Number of LEDs256
  • Power Factor0.95

• Product Data

  • Product FormatStandard Floodlight
  • Product typeFloodlights

• Materials and Finishes

  • ColourBlack
  • Fitting MaterialGlass, Aluminium, PC

• Driver Information

  • Driver Intensity614 mA - 648 mA
  • Driver Power145 W-155 W
  • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
    Driver Tension190 V - 260 V
