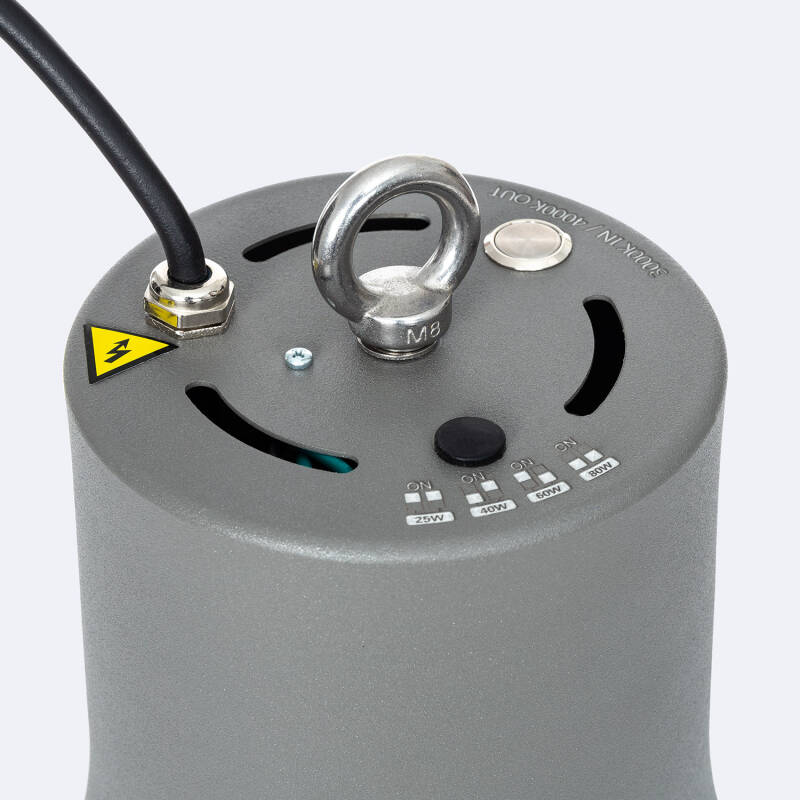

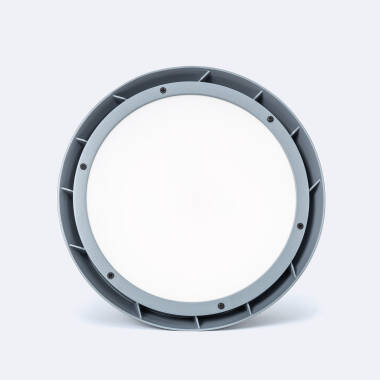

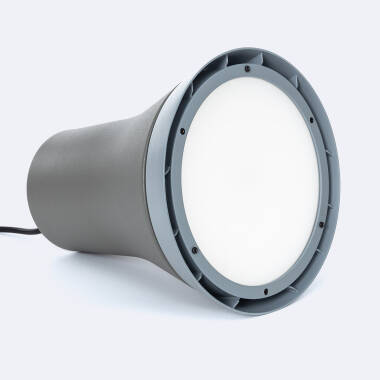

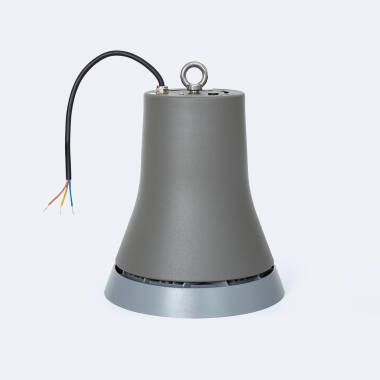

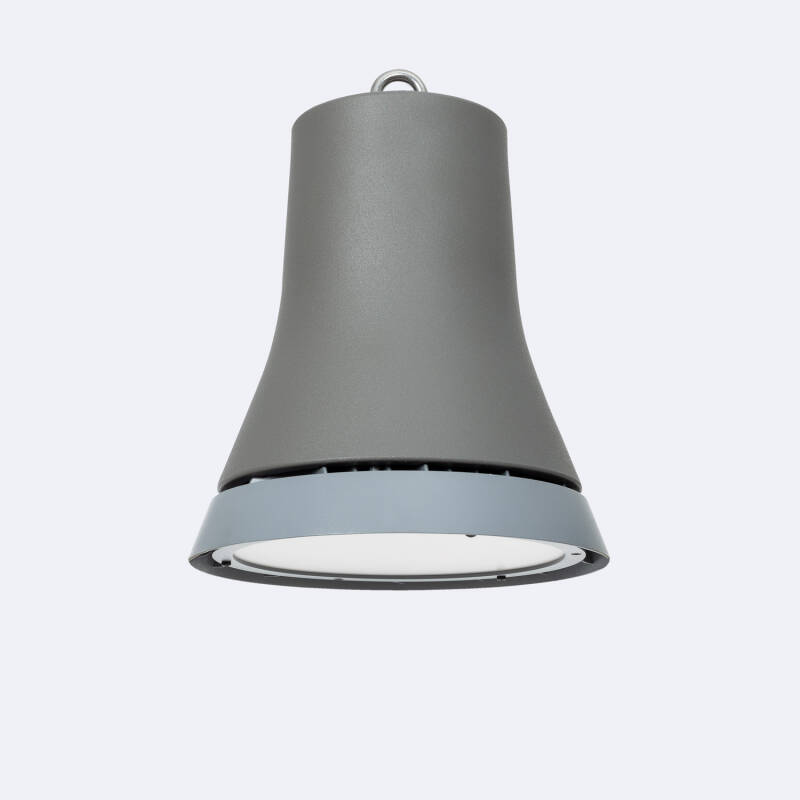

LUZNOVA CCT Low Bay Pendant 25-80W 3500-11200lm 3000/4000K 90°

Ref. Lyco: E41486

Colour Temperature Selectable 3000K - 4000K

VAT not included £78.33

£94.00

Energetic efficiency
Product information sheet

IN STOCK - Delivered in 1 to 2 working days

    30 Day Credit Terms

    • 30 Day Return

      Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.


      For more information view our Returns policy.

    • Want your items fast?

      Check our delivery cut-off times below:


      Mon – Thu: Order before 8:45 PM for 24/48h delivery.


      Friday: Order before 3:00 PM for 24/48h delivery.


      Full conditions here: Delivery methods.

    • 100% secure payments

      payment method image 1

      payment method image 2

      At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation

    • Up to 5 year warranty

      Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.


      You will find the exact product warranty in the technical details.

Dimensions

  • Diameter230 mm
  • Height300 mm

Certificates and Stamps

CertificateCertificateCertificateCertificateCertificate

Technical Specifications

  • Electrical Features

    • DimmableYes
    • Electrical Insulation ClassI
    • Frequency50-60 Hz
    • Light SourceSMD2835
    • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
      Nominal Voltage100 V - 277 V
    • Replaceable Light SourceYes
    • Type Of DimmingSwitch
    • Voltage level required for the product to function correctly.
      Voltage Range220-240V AC
    • Wattage80 W

  • Product Information

    • BrandLyco
    • CertificatesCE, RoHS, EMC, ERP, UKCA
    • Guarantee2 years
    • Product SeriesLuzNova

  • LED Features

    • Measures how accurately a light source displays colours compared to natural light. A high CRI (close to 100) ensures accurate colour rendering.
      Colour Rendering Index80
    • Defines the light tone, from warm white to cool white, measured in Kelvin (K).
      Colour Temperature3000K - 4000K
    • Light ColourSelectable
    • Lumen11200 lm
    • Ratio between light output (lumens) and energy consumed (watts). A high value indicates better efficiency, ideal for saving energy without compromising lighting.
      Luminous Efficiency140 lm/W
    • Number of LEDs350
    • Power Factor0.98

  • Product Data

    • Product FormatLow Bay Lighting
    • Product typeIndustrial Highbays

  • Mechanical Features

    • Ability to move or rotate the spotlight to direct the light as desired.
      DirectionalNo
    • Protection grade that the product offers against physical impacts. It is measured on a scale from IK00 to IK10, with IK10 being the highest level of resistance to impact and mechanical damage.
      IK ProtectionIK10
    • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
      IP RatingIP66
    • LocationIndoor
    • Type of lens that determines the distribution and quality of the light. It influences the illumination angle and light efficiency.
      Optic90º

  • Materials and Finishes

    • ColourDark Grey
    • Fitting MaterialAluminium, PC

  • Driver Information

    • Driver Intensity220 mA-380 mA
    • Driver Power25 W-80 W
    • Voltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
      Driver Tension180 V-260 V
Outdoor Lights

Key Features

LuzNova Aluminium Pendant Lowbay is engineered for demanding industrial environments, featuring a robust aluminium and polycarbonate construction with an IK10 impact resistance rating and IP66 ingress protection, ensuring exceptional durability and reliability. The fixture delivers high luminous efficiency of 140 lm/W with selectable wattages from 25 W to 80 W, producing up to 11,200 lumens with a colour temperature range of 3000K to 4000K and a colour rendering index (CRI) of 80, providing bright, high-quality illumination suitable for professional production settings. It incorporates a high-performance SOSEN driver with a power factor of 0.98, supporting dimmable switch-type regulation and operating within a wide voltage range (180-260 V driver tension, nominal 100-277 V), ensuring stable and efficient power management. The optic is fixed at a 90° beam angle, optimising light distribution for low bay applications. Designed for indoor industrial use, it operates reliably across an ambient temperature range from -30 °C to +50 °C. The driver is replaceable, facilitating maintenance and extending service life, while the fixture’s connectivity options are standard, focusing on robust, straightforward installation without integrated sensors or wireless controls. Certified to CE, EMC, ERP, RoHS, and UKCA standards, this pendant lowbay luminaire combines technical excellence, resilience, and energy efficiency for professional industrial lighting solutions.

Description

The LuzNova Dimmable CCT Low Bay , perfect for lighting systems. With adjustable power between 25 and 80 W, and the option to choose between warm white or neutral white, this luminaire easily adapts to various lighting needs.

The LuzNova Dimmable CCT Low Bay  has been designed to meet the lighting demands of a wide range of environments. It operates at a standard voltage of 220 - 240 V and has dimensions of 300 x Ø230 mm, making it a versatile and easily integrable option in various residential and commercial settings.

One of the highlights of the LuzNova Dimmable CCT Low Bay   is its ability to adapt to individual lighting preferences with its CCT system. Thanks to its switch, users can choose between two colour temperatures: warm white (3000K) or neutral white (4000K). This flexibility allows for creating customised and comfortable environments that meet each user's needs.

In addition, the luminaire is equipped with a controller with two switches, providing control over the lighting. This feature allows users to adjust the brightness, offering a personalised and efficient lighting experience. This LED luminaire offers precise control over its power options, ranging from 25 to 80 W, allowing for adjusting the light intensity according to the specific needs of the environment.

What does CCT (Correlated Colour Temperature) mean?

When a product is labelled as CCT, it means we can change the colour temperature. CCT is defined in Kelvin degrees, based on the colour perception of a white LED to the human eye, we can differentiate them into 3 types of colour; warm light, neutral light, and cool light, from 2700-3500K, 4000-4500K, and 5000-6500K respectively. CCT values do not indicate anything about the LED's colour rendering capability.
