Voltage Range 24V DC, 5V DC
Type Of Dimming Touch
IP Rating IP20
Battery Operated No
Voltage Range
24V DC, 5V DC
Type Of Dimming
Touch
IP Rating
IP20
Battery Operated
No
Width
40 mm
Height
8 mm
Fitting Material
PCB
Brand
Lyco
Dimmable
Yes
Current Intensity
3.5 A
10mm Mini Tactile Regulator Switch for 5V/24V DC LED Strips
Ref. Lyco: E40828
Measurement 10 mm
VAT not included £5.83
£7.00
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

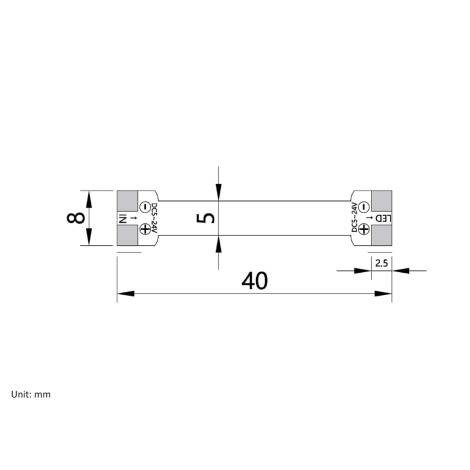

Dimensions
- Width40 mm
- Height8 mm
Downloads
PDF Datasheet 104787_214164 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Current Intensity3.5 A
- DimmableYes
- Type Of DimmingTouch
- Voltage Range24V DC, 5V DCVoltage level required for the product to function correctly.
Product Data
- Product FormatAccessory
- Product typeController
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- Measurement10 mm
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- Fitting MaterialPCB
LED Features
- Light ColourMonochrome
Description

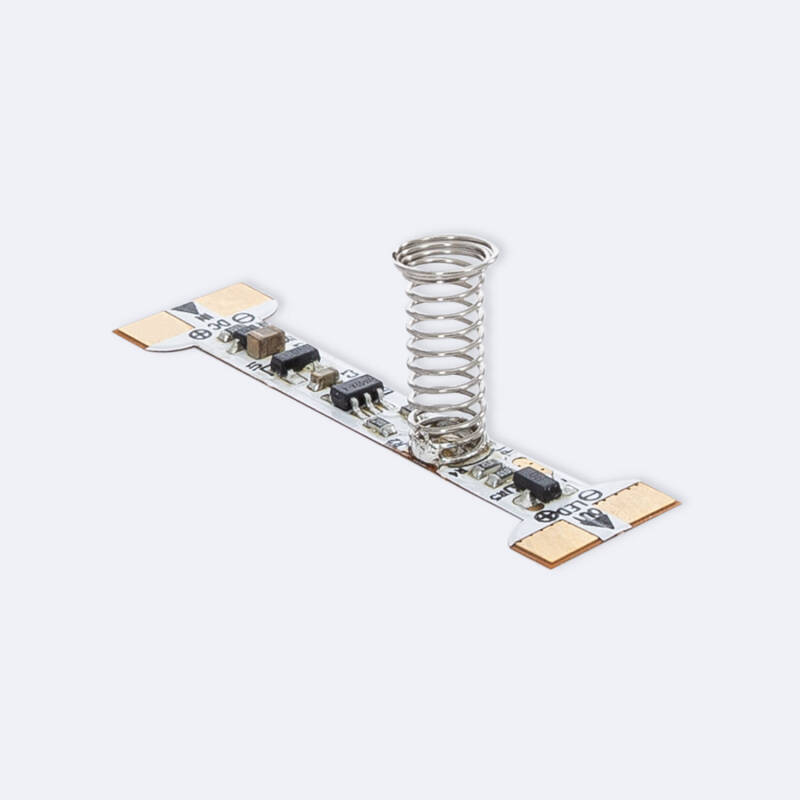

The 5V/24V DC Mini LED Strip Dimmer / Switch is a functional solution, to control and adjust the intensity of your LED strip lighting with ease and precision. This compact device features a flexible double-sided circuit board that accepts a 3.5 amp input and a wide range of voltages from 5V to 24V.
Thanks to its touch technology, you can dim the brightness of your 5V/24V LED strips easily and precisely, adjusting it from 5% to 100%. This switch is available in two different models, one for 8mm strips and one for 10mm strips, giving you options to adapt it to your specific needs.

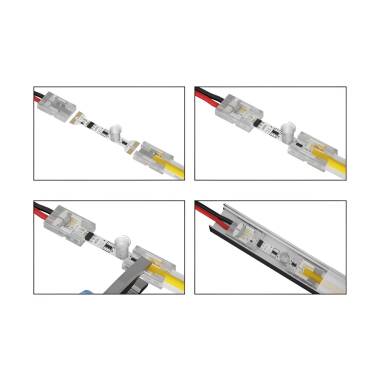

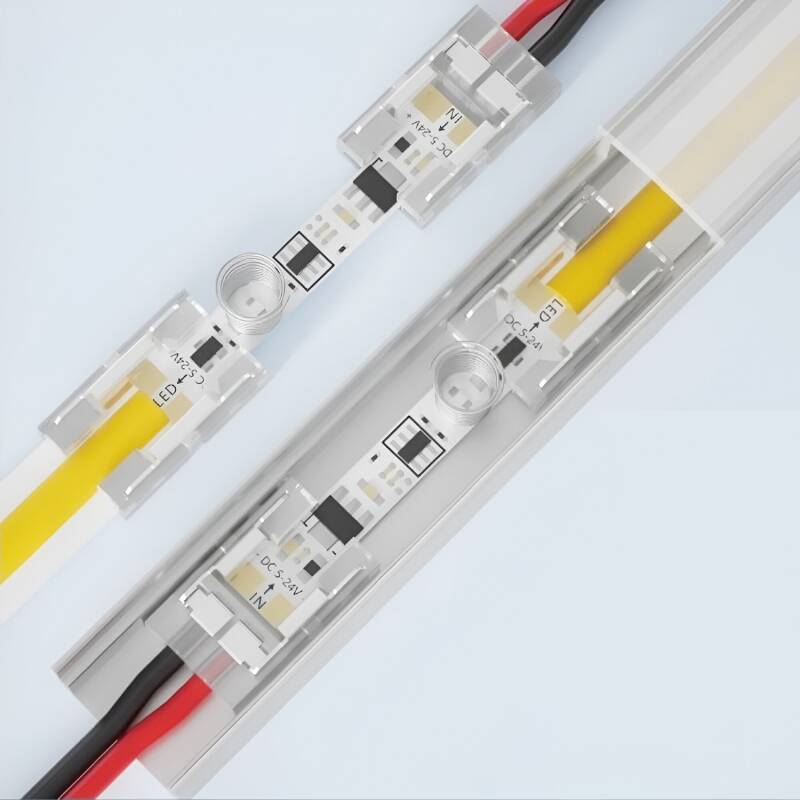

Its compact design makes it ideal for a variety of applications. Ideal for mounting on profiles.

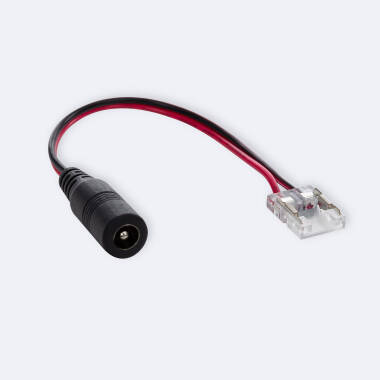

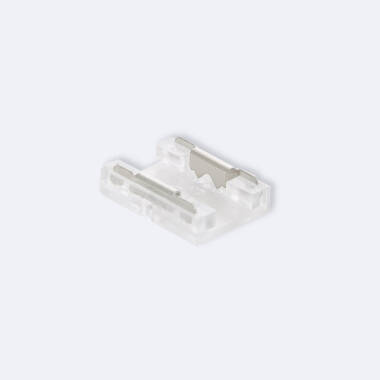

It also includes 1 x 8mm or 10mm strip-to-strip connector and 1 x DC5521 female connector, making it easy to connect.
