Wattage 30 W
Voltage Range 220-240V AC
Type Of Dimming 0-10 V
Power Factor 0.95
Wattage
30 W
Voltage Range
220-240V AC
Type Of Dimming
0-10 V
Power Factor
0.95
IP Rating
IP20
Battery Operated
No
Dimensions
28 mm x 46 mm x 141 mm
Width
46 mm
Height
28 mm
Fitting Material
PC
Brand
Lyco
Dimmable
Yes

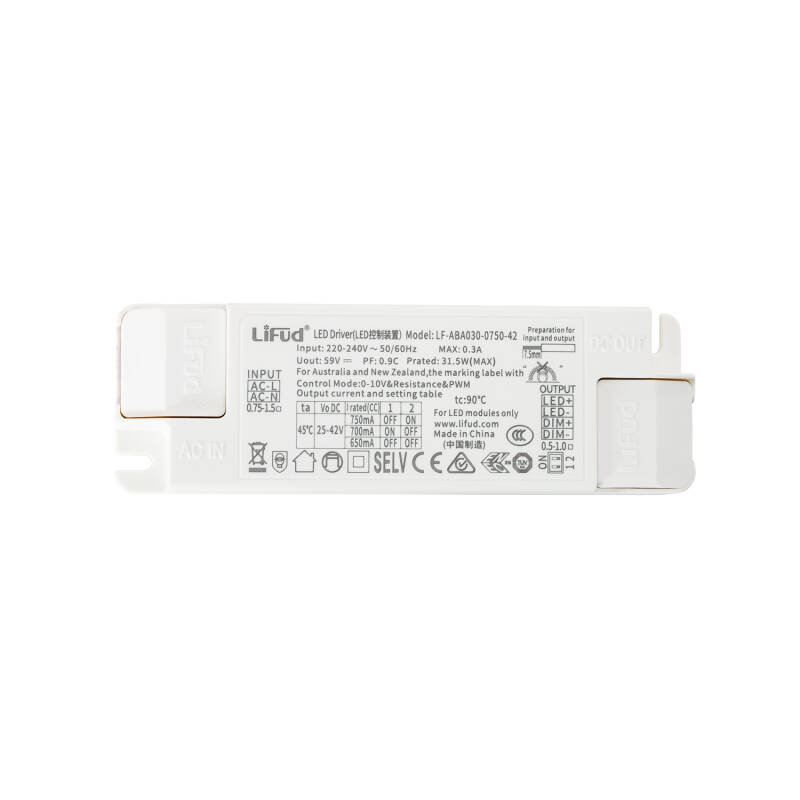

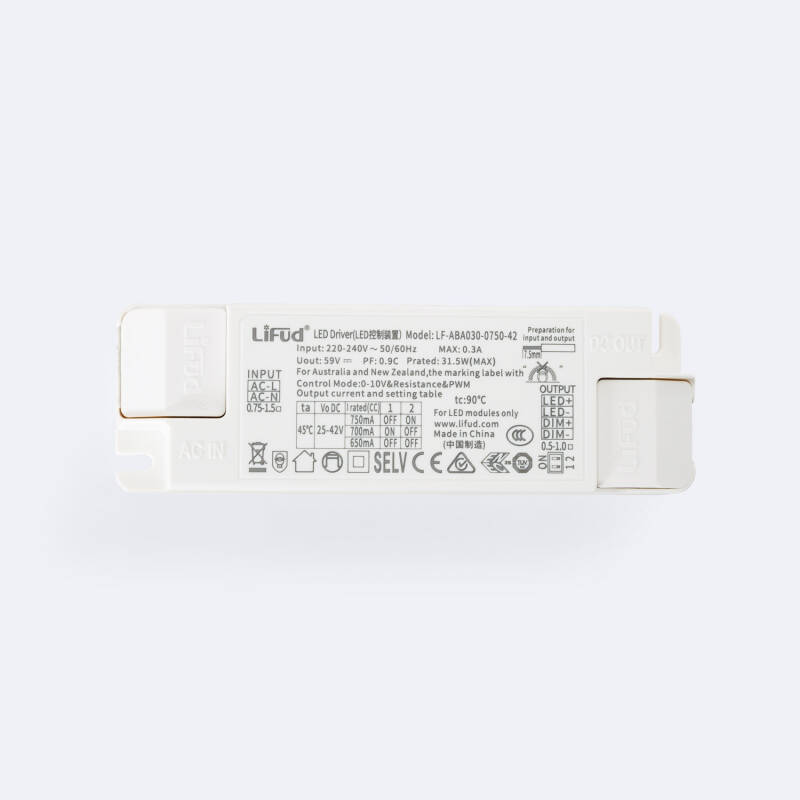

12.5-30W Dimmable LIFUD Driver 0-10V 220-240V Output 25-42V 500-750mA LF-ABA030-0750-42
Ref. Lyco: E39042
Ref. Stock: 213873
VAT not included £23.33
£27.99
Wattage 30 W
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth141 mm
- Height28 mm
- Width46 mm
Downloads
PDF Datasheet 104673_213873 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Type Of Dimming0-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage30 W
Product Information
- BrandLyco
- CertificatesCE, RoHS, CB, ENEC, CCC, SAA
- Guarantee3 years
- Product SeriesABAXXX
Product Data
- Product FormatLED Driver
- Product typeDriver
LED Features
- Power Factor0.95
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
Driver Information
- Driver Intensity650 mA-750 mA
- Driver Power25 W-30 W
- Driver Tension25 V-42 VVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of Driver0-10V
Description
Driver of the prestigious company LIFUD specially designed for any application because its output does not incorporate any connector. An LED driver is responsible for transforming the alternating current from the mains into direct current suitable for making the LED chips shine. To find out if a driver is going to work with our luminaire, PCB or panel, we must consult the voltage and output current of the driver.
Characteristics of the 220-240V LIFUD 0-10V No Flicker Dimmable Driver 25-42V Output 650-750mA 26-30W LF-ABA030-0750-42
This Driver has a multi-voltage input. This means that it is able to withstand surges and dips in line voltage for a short period of time without damage. In addition, its output is also multi-voltage which means that it can deliver a constant voltage within a range allowing the same driver to be used for a variety of applications with different current and voltage requirements. Once the driver is powered, the voltage is automatically adjusted and the output voltage is constant. The 0-10V dimmable driver should be used in conjunction with a 1-10V LED dimmer, which will allow us to easily select the desired light intensity. Its power factor is very high, making it a very efficient driver.
It also includes four contacts that allow the driver's output parameters to be adjusted, making it a highly versatile driver.
