Wattage 30 W
Voltage Range 220-240V AC
IP Rating IP20
Battery Operated Yes
Wattage
30 W
Voltage Range
220-240V AC
IP Rating
IP20
Battery Operated
Yes
Dimensions
360 mm x 73 mm x 40 mm
Width
73 mm
Height
360 mm
Autonomy
3 h
Fitting Material
PC, Steel
Brand
Lyco

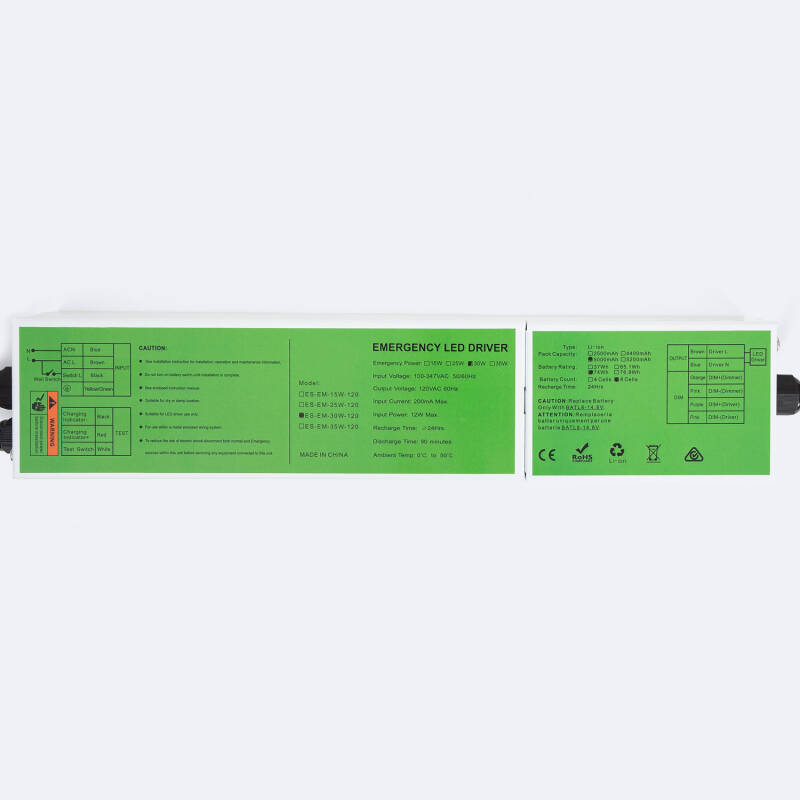

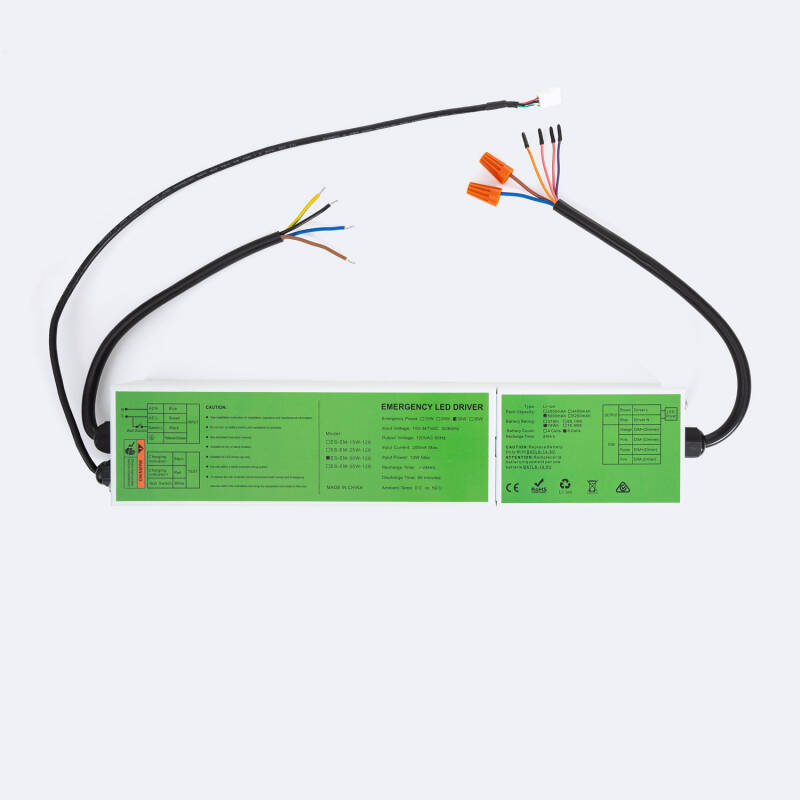

30W Emergency Kit for 0-10V Linear LED High Bay
Ref. Lyco: E38797
VAT not included £139.17
£167.00
Wattage 30 W
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height360 mm
- Depth40 mm
- Width73 mm
Downloads
PDF Datasheet 103949_212613 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage30 W
Product Data
- Product FormatEmergency Kit
- Product typeDriver
Materials and Finishes
- ColourWhite / Green
- Fitting MaterialPC, Steel
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Product Information
- BrandLyco
- CertificatesCE, RoHS
- Guarantee3 years
Battery Information
- Autonomy3 hBattery life of the luminaire at full charge, without wear, and at medium light level.
- Charging Time24 hTime required to fully recharge the product's battery, depending on the battery capacity and the charging source.
- Type Of BatteryLi-ion
Driver Information
- Type Of DriverEmergency lighting
Description
The Emergency Kit for 0-10V Linear LED Highbay is specially designed for emergency situations where it is necessary, in case of mains failure, to satisfy the lighting requirements in normal and emergency situations. To find out if a driver is going to work with your luminaire, PCB or panel we should consult the voltage and output current of the driver.
Features of the Emergency Kit for 0-10V Linear LED Highbay
This 0-10V LED Linear Bell Emergency Kit has a multi-voltage input. This means that it is able to withstand line voltage surges and dips for a short period of time without damage. In addition, its output is 170V DC 200mA Emergency Mode.
When there is a power failure, this emergency driver switches to emergency mode and provides 180 minutes of illumination with a power of 15W or 30W depending on the model.
