Wattage 25 W
Voltage Range 220-240V AC
IP Rating IP65
Battery Operated Yes
Wattage
25 W
Voltage Range
220-240V AC
IP Rating
IP65
Battery Operated
Yes
Dimensions
205 mm x 138 mm x 100 mm
Width
138 mm
Height
205 mm
Autonomy
15 h
Fitting Material
PC, Aluminium
Brand
Lyco

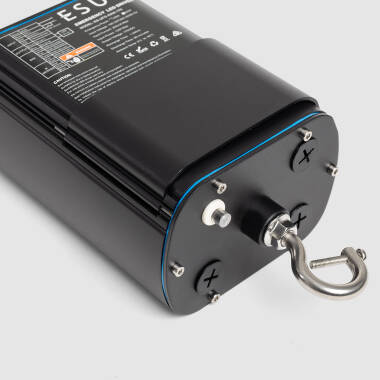

25W Emergency Kit for 0-10V LED Luminaires
Ref. Lyco: E38789
VAT not included £194.17
£233.00
Wattage 25 W
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth100 mm
- Width138 mm
- Height205 mm
Downloads
PDF Datasheet 103933_212588 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Nominal Voltage100 V - 277 VMinimum and maximum voltage fluctuation that the product can withstand momentarily.
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage25 W
Mechanical Features
- InstallationPendant
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
Battery Information
- Autonomy15 hBattery life of the luminaire at full charge, without wear, and at medium light level.
- Charging Time24 hTime required to fully recharge the product's battery, depending on the battery capacity and the charging source.
Product Data
- Product FormatEmergency Kit
- Product typeEmergency Lights
Product Information
- BrandLyco
- CertificatesCE, RoHS, FCC
- Guarantee5 years
Materials and Finishes
- Fitting MaterialPC, Aluminium
Description
The Emergency Kit for LED Luminaires 25-40W is specially designed for emergency situations where it is necessary, in case of mains failure, to meet the lighting requirements in normal and emergency situations. To find out if a driver is going to work with our luminaire, PCB or panel we should consult the output voltage of the driver.
Features of the Emergency Kit for LED Luminaires 25-40W
This Emergency LED Luminaire Kit 25W-40W has a multi-voltage input. This means that it is able to withstand line voltage surges and dips for a short period of time without damage. In addition, its output is 170V DC 200mA Emergency Mode.
When there is a power failure, this emergency driver switches to emergency mode and provides 90 minutes of illumination with a power of 25W or 40W depending on the model.
