Wattage 48 W
Voltage Range 220-240V AC
Power Factor 0.9
IP Rating IP20
Wattage
48 W
Voltage Range
220-240V AC
Power Factor
0.9
IP Rating
IP20
Battery Operated
No
Dimensions
29 mm x 43 mm x 140 mm
Width
43 mm
Height
29 mm
Fitting Material
PC
Brand
Lyco
Working Temperature
-20 °C~+45 °C

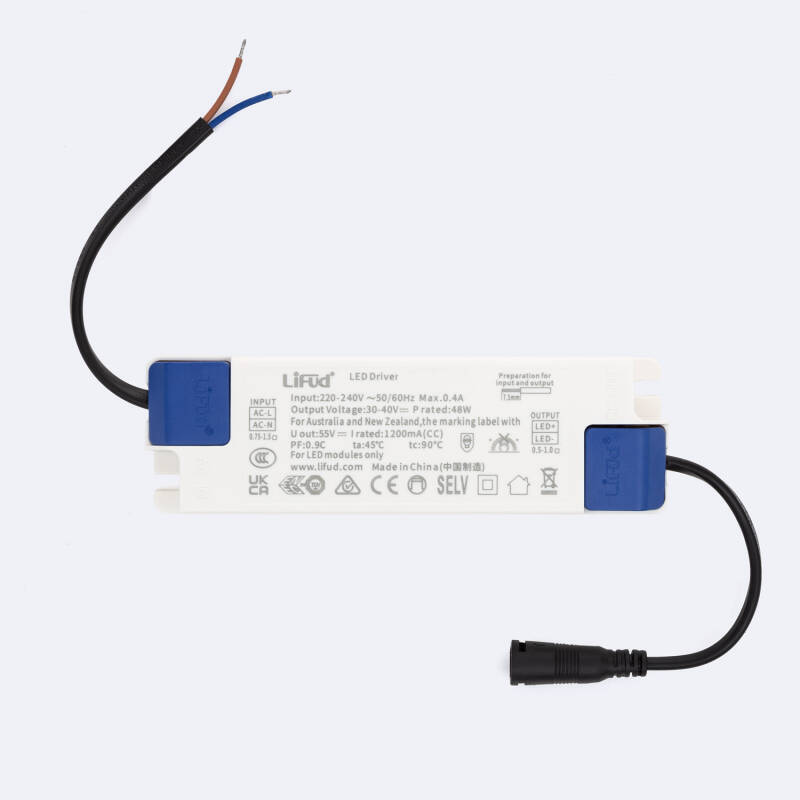

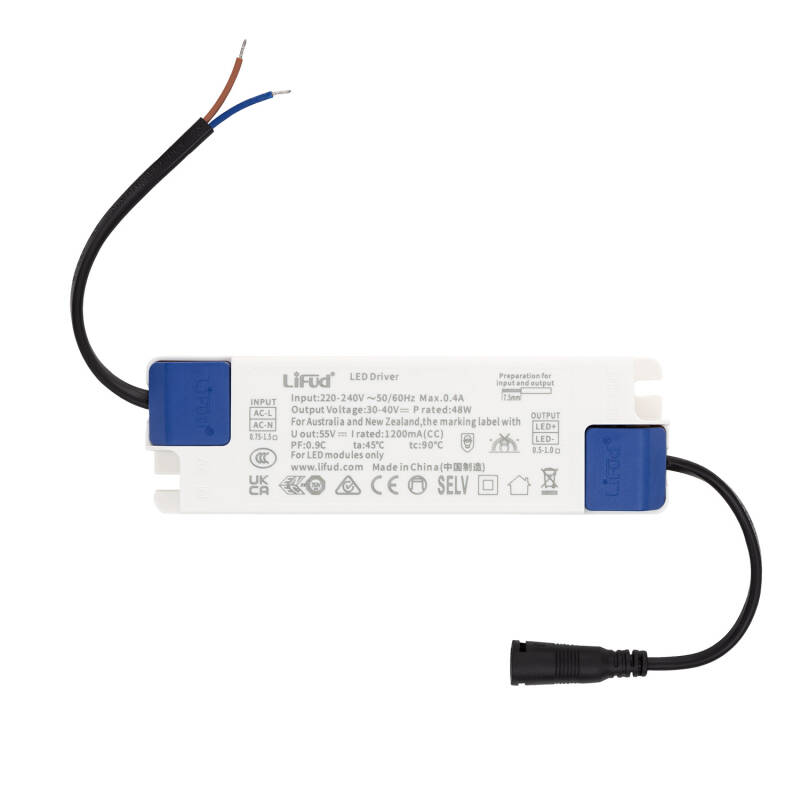

48W Driver LIFUD 220-240V Output 30-40V 1200mA LF-GIF050YS1200H
Ref. Lyco: E37880
VAT not included £9.16
£10.99
Wattage 48 W
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Depth140 mm
- Height29 mm
- Width43 mm
Downloads
PDF Datasheet 101469_208869 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Electrical Insulation ClassII
- Frequency50-60 Hz
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage48 W
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- Working Temperature-20 °C~+45 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA, ENEC
- Guarantee3 years
- Product SeriesGIFXXXYS
Product Data
- Product FormatLED Driver
- Product typeDriver
LED Features
- Power Factor0.9
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Driver Information
- Driver Intensity1200 mA
- Driver Power36 W-48 W
- Driver Tension30 V DC-40 V DCVoltage level that the driver uses to power the LEDs or electrical components of the product, ensuring their proper functioning.
- Type Of DriverLIFUD
Description
Driver of the prestigious company LIFUD specially designed for LED panels, LED downlights, LED panels and LED ceiling lights because it incorporates the Jack connector. An LED driver is responsible for transforming the alternating current from the mains into direct current suitable for making the LED chips shine. To find out if a driver is going to work with our luminaire, PCB or panel we should consult the voltage and output current of the driver.
Characteristics of the 220-240V No Flicker LIFUD Driver 30-40V Output 1200mA 48W LF-GIF050YS1200H
This driver has a multi-voltage output which means that it can deliver a constant voltage within a range allowing the same driver to be used for a variety of applications with different current and voltage requirements. Once the driver is powered, the voltage is automatically adjusted and the output voltage is constant. Its power factor is very high, making it a very efficient driver.
