Wattage 300 W
Voltage Range 220-240V AC
Type Of Dimming 0-10 V, 1-10 V
IP Rating IP20
Wattage
300 W
Voltage Range
220-240V AC
Type Of Dimming
0-10 V, 1-10 V
IP Rating
IP20
Dimensions
30 mm x 294 mm x 61 mm
Width
294 mm
Height
30 mm
Fitting Material
Aluminium
Brand
Lyco
Dimmable
Yes
Current Intensity
12.5 A
Working Temperature
-20 °C~+50 °C

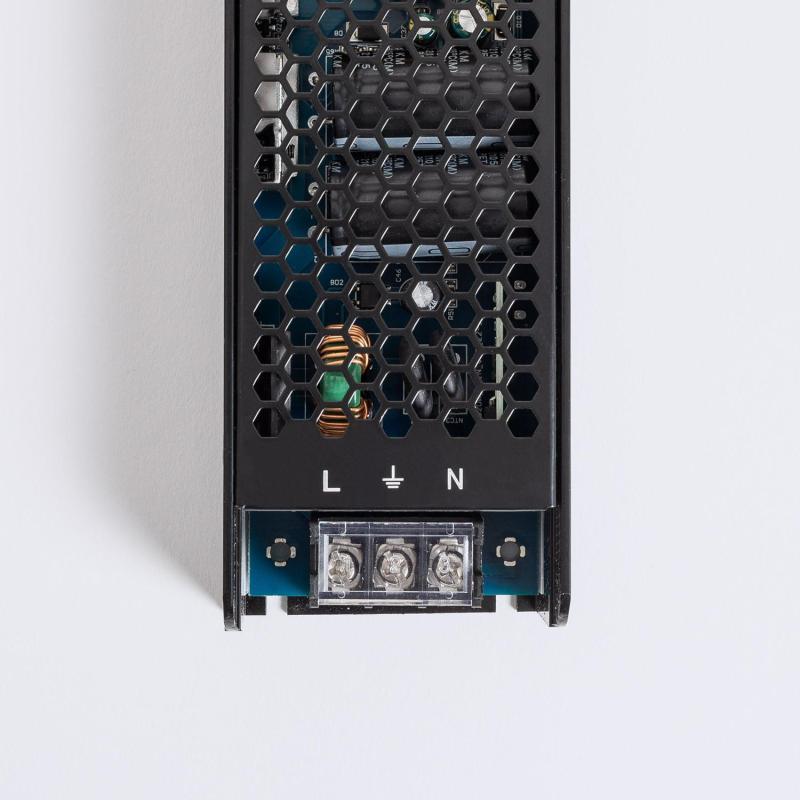

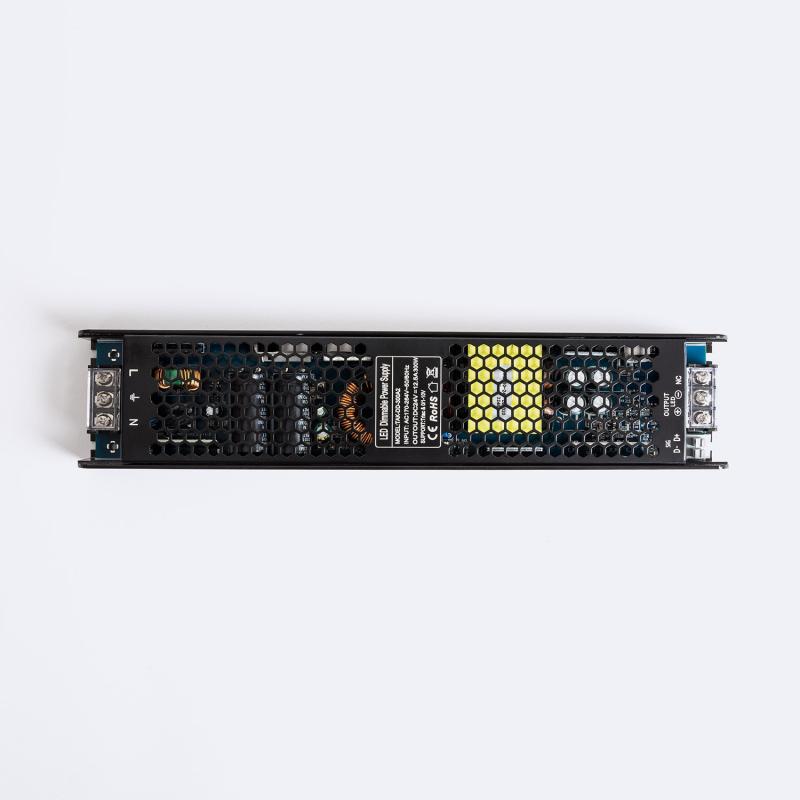

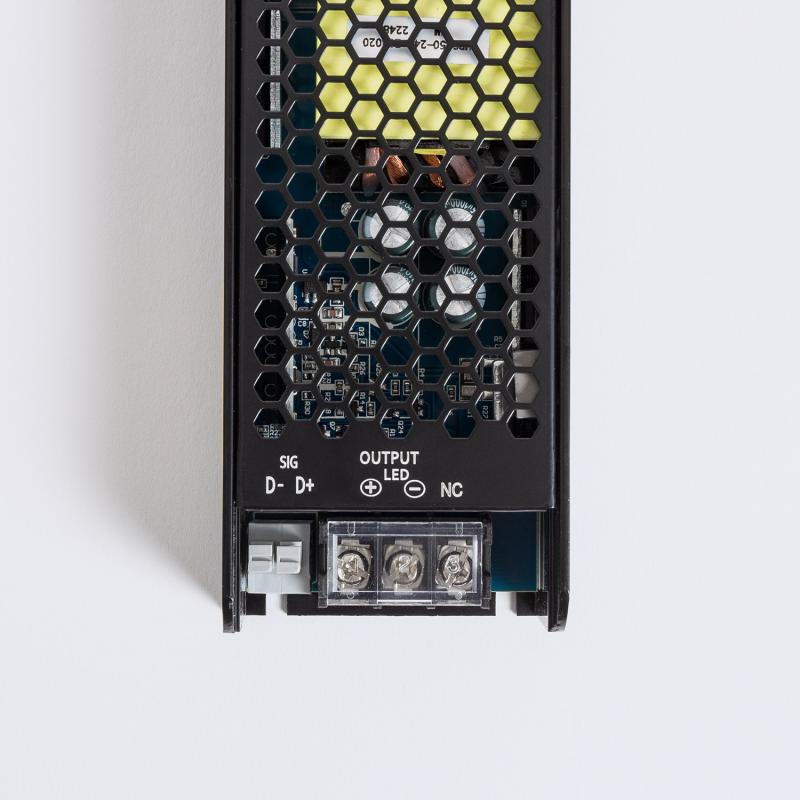

24V DC 300W Dimmable 0/1-10V Power Supply 12.5A
Ref. Lyco: E37658
VAT not included £79.99
£95.99
Wattage 300 W
IN STOCK - Delivered in 1 to 2 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Width294 mm
- Height30 mm
- Depth61 mm
Downloads
PDF Datasheet 100847_207820 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Current Intensity12.5 A
- DimmableYes
- Electrical Insulation ClassI
- Frequency50-60 Hz
- Output Voltage24V DCIt is the amount of voltage the product delivers to its components, such as LEDs or connected devices, for operation. This value is crucial to ensure safe and efficient operation.
- Type Of Dimming0-10 V, 1-10 V
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
- Wattage300 W
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- Working Temperature-20 °C~+50 °CInternal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
Product Data
- Product FormatTransformer
- Product typePower supplies
Product Information
- BrandLyco
- CertificatesCE, RoHS
- Guarantee3 years
Materials and Finishes
- Fitting MaterialAluminium
Description
The 24V DC 300W 12.5A 0/1-10V Dimmable Power Supply is suitable for connecting indoor lighting systems that cannot be used with direct mains connection. It converts the AC mains power supply to 24V DC.
It has a rated power of 300W. Its output current is 12.5A. In addition, its aluminium housing makes it highly resistant and lightweight.
