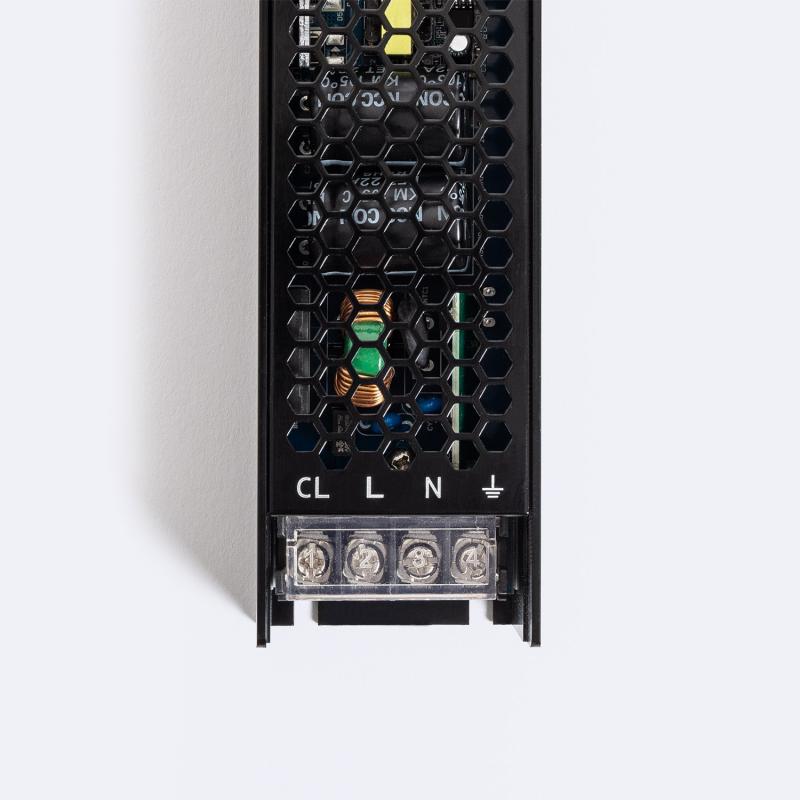

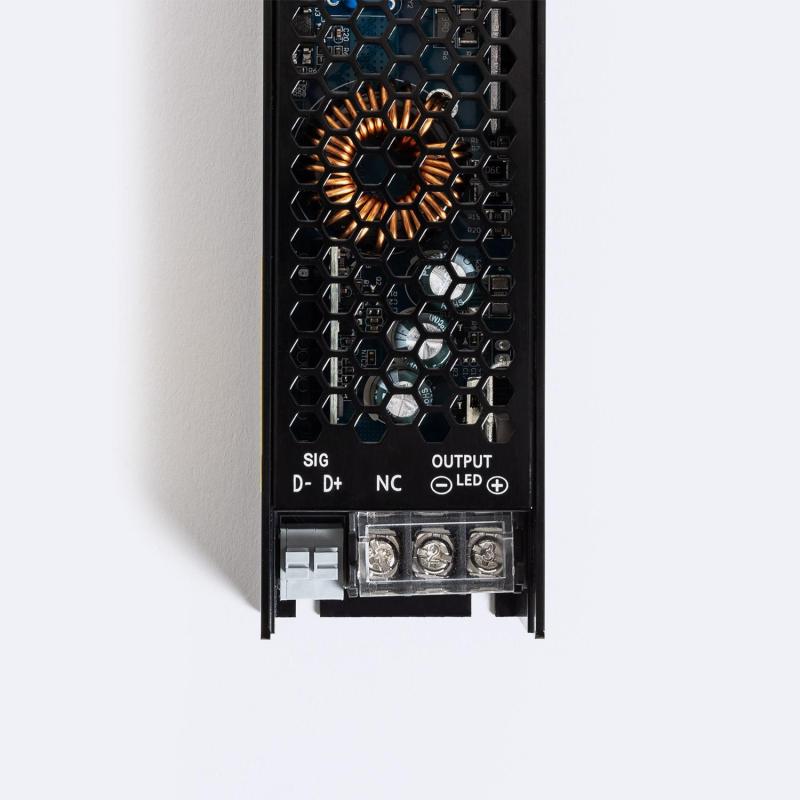

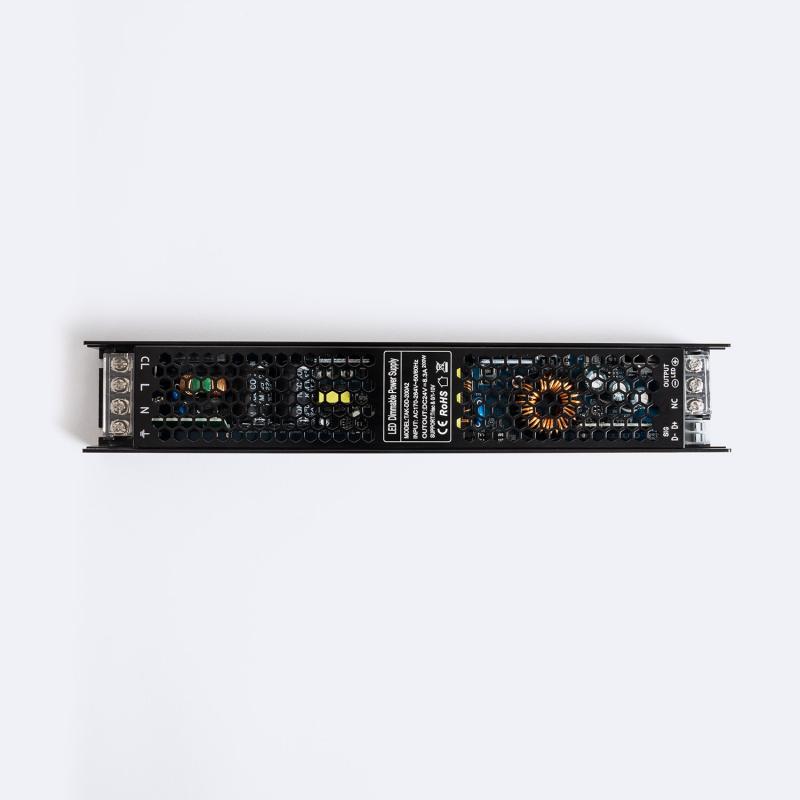

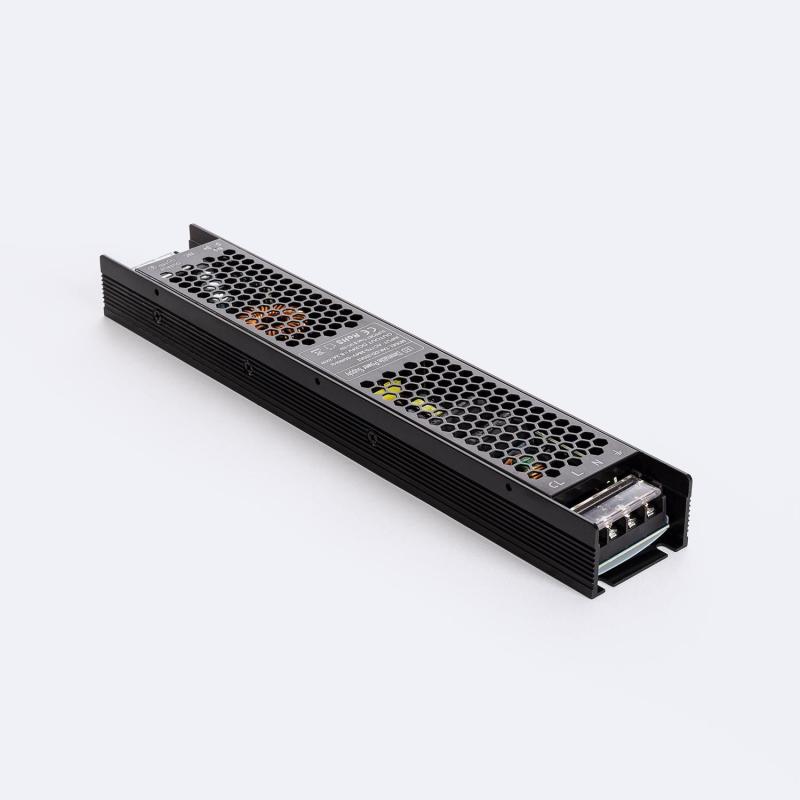

24V DC 200W Dimmable 0/1-10V Power Supply 8.3A

Technical Specifications

• Electrical Features

  • Current Intensity8.3 A
  • DimmableYes
  • Electrical Insulation ClassI
  • Frequency50-60 Hz
  • Minimum and maximum voltage fluctuation that the product can withstand momentarily.
    Nominal Voltage170 V - 265 V
  • It is the amount of voltage the product delivers to its components, such as LEDs or connected devices, for operation. This value is crucial to ensure safe and efficient operation.
    Output Voltage24V DC
  • Type Of Dimming0-10 V, 1-10 V
  • Voltage level required for the product to function correctly.
    Voltage Range220-240V AC
  • Wattage200 W

• Mechanical Features

  • The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
    IP RatingIP20
  • LocationIndoor
  • Internal temperature range in which the product can operate efficiently and safely. It is important to ensure its reliability under different usage conditions.
    Working Temperature-20 °C~+50 °C

• Product Data

  • Product FormatTransformer
  • Product typePower supplies

• Product Information

  • BrandLyco
  • CertificatesCE, RoHS
  • Guarantee3 years

• Materials and Finishes

  • Fitting MaterialAluminium
