Voltage Range 12V DC, 24V DC
Type Of Dimming Remote Control, Push button
IP Rating IP20
Battery Operated No
Voltage Range
12V DC, 24V DC
Type Of Dimming
Remote Control, Push button
IP Rating
IP20
Battery Operated
No
Dimensions
17 mm x 36 mm x 75 mm
Width
36 mm
Height
17 mm
Fitting Material
PC
Brand
MI-LIGHT
Dimmable
Yes

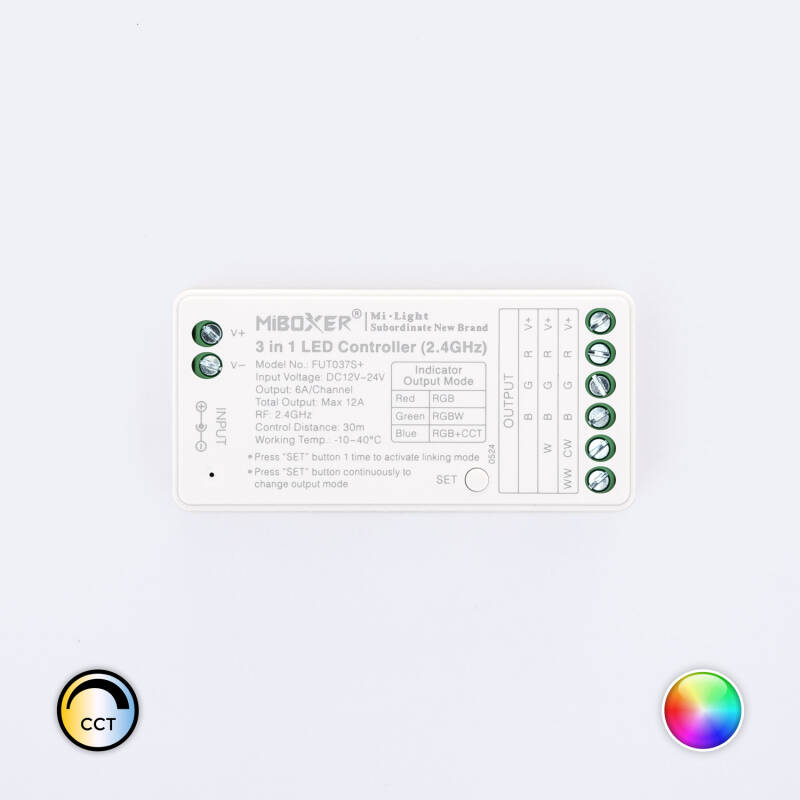

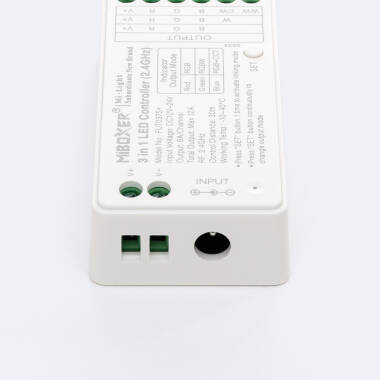

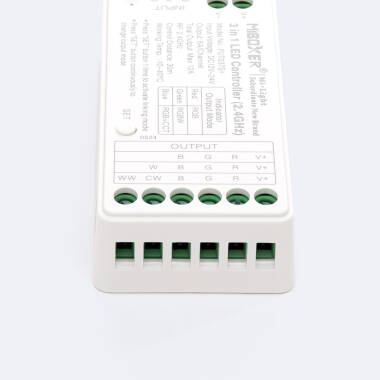

12/24V DC RGB/RGBW LED Dimmer Controller MiBoxer FUT037S+
Ref. Lyco: E37633
EAN 13: 8445044151059
Ref. Stock: 207733
VAT not included £9.99
£11.99
Light Colour RGB/RGBW/RGBT+CCT
In Stock, Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.
Dimensions
- Height17 mm
- Width36 mm
- Depth75 mm
Downloads
PDF Datasheet 100797_207733 EN
3in1controller
Certificates and Stamps
Technical Specifications
Electrical Features
- DimmableYes
- Type Of DimmingRemote Control, Push button
- Voltage Range12V DC, 24V DCVoltage level required for the product to function correctly.
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
- Not IncludedRemote
Product Data
- Product FormatDimmer Switch
- Product typeController
Mechanical Features
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
Product Information
- BrandMI-LIGHT
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
LED Features
- Light ColourRGB/RGBW/RGBT+CCT
Description
Discover the efficiency and versatility of the MiBoxer FUT037S+ 12/24V DC 3 in 1 RGB/RGBW/RGB+CCT LED Dimmer Controller , meticulously designed for optimal control of RGB LED Strips, RGBW LED Strips, and RGB+CCT LED Strips. The controller allows switching between 3 output modes through a button (RGB / RGBW / RGB+CCT). The MiBoxer 3-in-1 LED Controller at 2.4GHz is a device for selecting and adjusting any colour within the RGB spectrum, and the colour temperature (from warm white to cool white).
In addition, the controller is equipped with 2.4GHz RF technology, offering the possibility of being controlled via remote controls with an impressive range of up to 30 metres. We can also combine this product with the MiBoxer WiFi Controller 2.4GHz Gateway WL-box1 and control the LED Strips directly from your smartphone through a WiFi connection, expanding the lighting management possibilities.
With an output of 12A per channel, the MiBoxer FUT037S+ 12/24V DC 3 in 1 RGB/RGBW/RGB+CCT LED Dimmer Controller ensures stable and reliable performance, ensuring that the lighting is always suitable for every occasion. Its ultra-slim and compact design, made of high-strength PC, facilitates installation in a variety of applications. The power supply is flexible accepting an input voltage range of DC12V-24V.
In addition, it is compatible with a variety of MiBoxer RF Remotes, including models FUT089, FUT092, FUT096, B4/T4, B3/T3, and with the WiFi controller WL-Box1. Transform your space and enjoy a superior lighting experience and intelligent control with the 3-in-1 FUT037S+ Multifunctional Controller. Find this and other smart control products in our online store and take a step towards modernising your home or workspace.
The MiBoxer 3-in-1 LED Controller is easy to install and use, and is ideal for LED lighting applications indoors and outdoors, such as homes, restaurants, bars, hotels, gardens, and commercial buildings. With its high efficiency and wide range of functions, this controller is an excellent choice for any LED lighting project.
