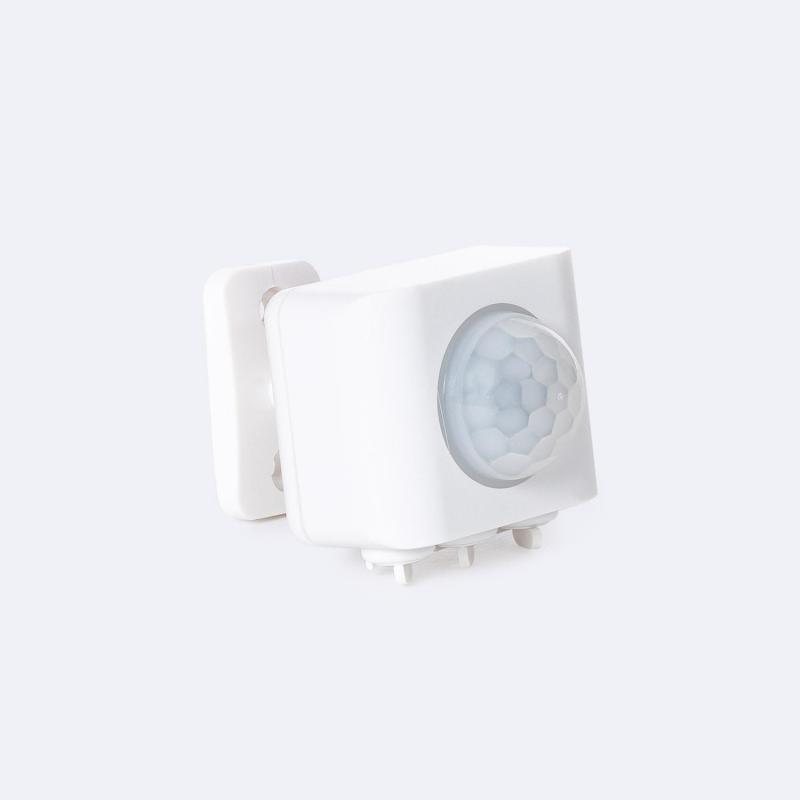

PIR Motion Sensor 360º Mini
Ref. Lyco: E37392
Colour White
VAT not included £6.66
£7.99
Delivered in 8 to 14 working days
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
24h Free Delivery on Orders Over £70
If you place your order today before 8:45 pm, delivery within 24/48h (working days).
Shipping is free on purchases over £ 70.00 (incl. VAT).
Please note this delivery service is subject to stock availabilityFull conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

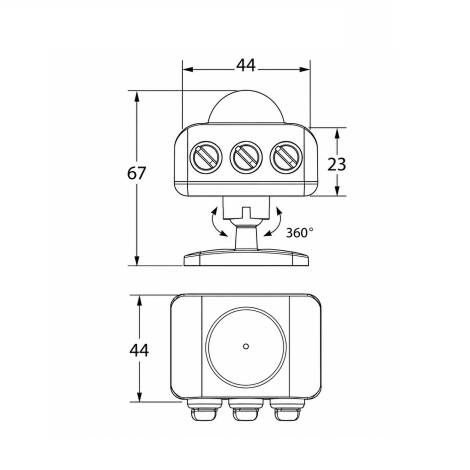

Dimensions
- Height41 mm
- Width44 mm
- Depth57 mm
Certificates and Stamps
Technical Specifications
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Electrical Features
- Frequency50-60 Hz
- Max Wattage100 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationSurface
- IP RatingIP20The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- LocationIndoor
- SensorPIR
- Sensor TypePIR
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Description
The 360º PIR Mini Motion Sensor is a versatile electronic device that can be ceiling or wall mounted. With a detection range of 120°/360° and an adjustable distance of 2 to 10 metres (<24℃), this sensor is capable of detecting the presence of people or objects in a wide detection range.
It has an adjustable delay time from 10 seconds to 7 minutes and operates on 220-240V/AC voltage at 50/60Hz. It is capable of supporting a maximum load of 100W for incandescent lamps and LED lamps and its sensitivity range is adjustable from less than 10 to 2000 LUX. In addition, it has an IP20 protection rating, which means it is suitable for indoor use and is designed to be surface mounted.
