Voltage Range 220-240V AC
Max Wattage 300 W
Cut Out Dimensions Ø75 mm
Diameter 80 mm
Voltage Range
220-240V AC
Max Wattage
300 W
Cut Out Dimensions
Ø75 mm
Diameter
80 mm
IP Rating
IP65
Dimensions
52 mm x Ø80 mm
Height
52 mm
Fitting Material
PC
Brand
Lyco

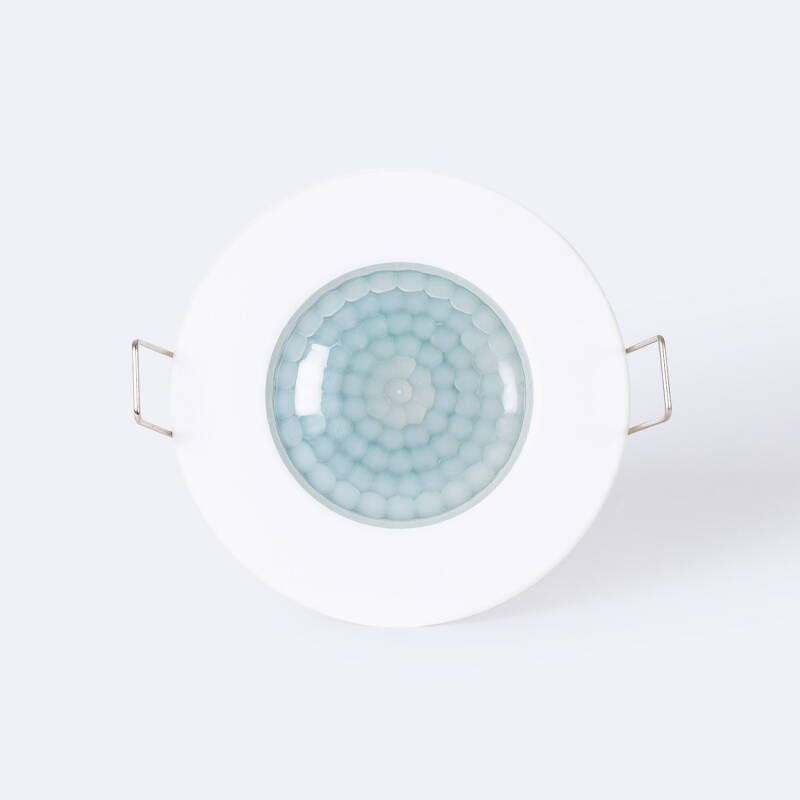

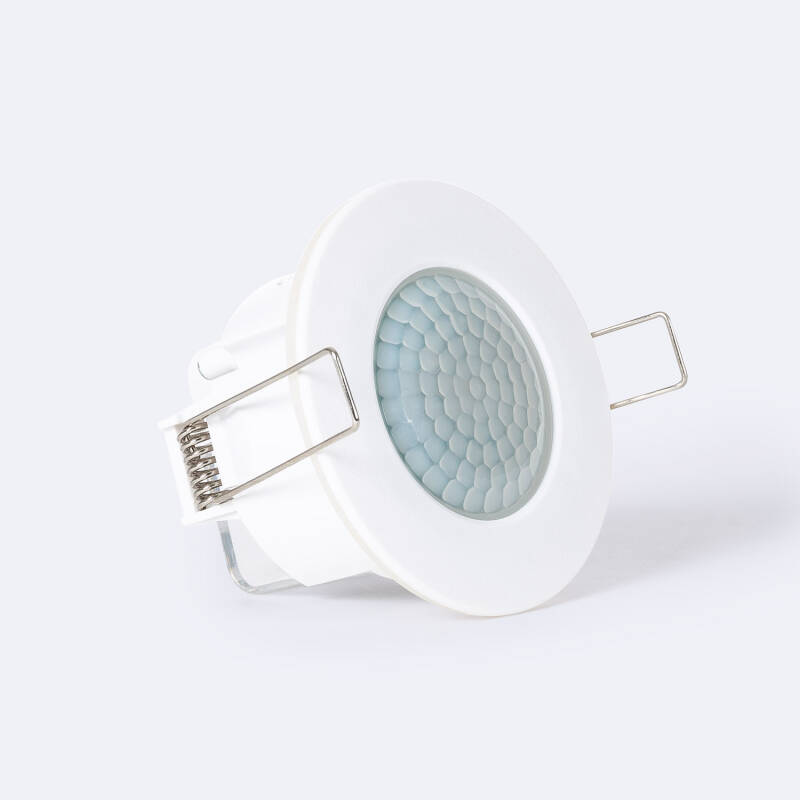

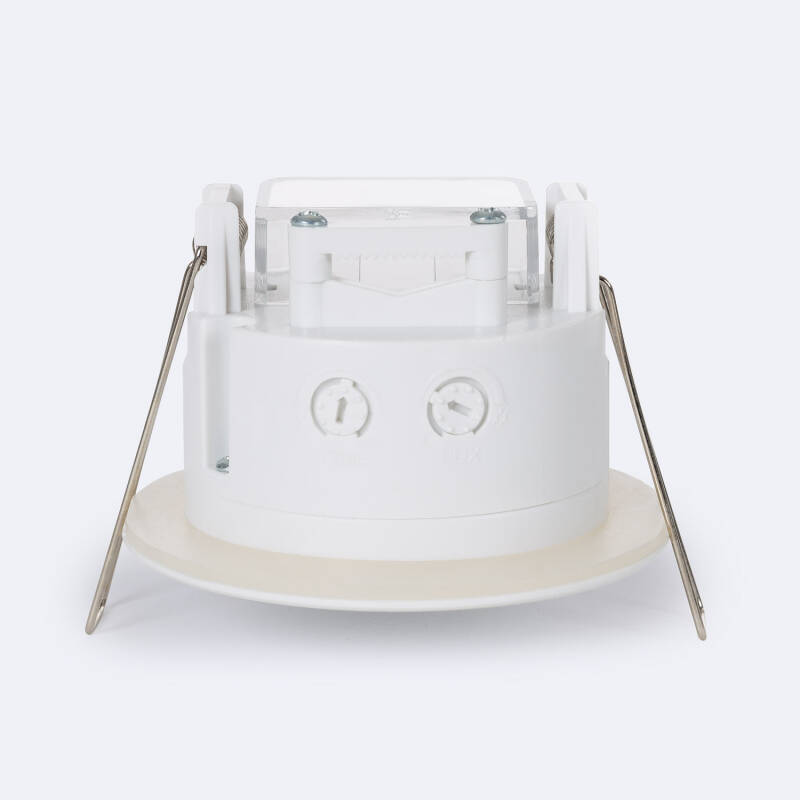

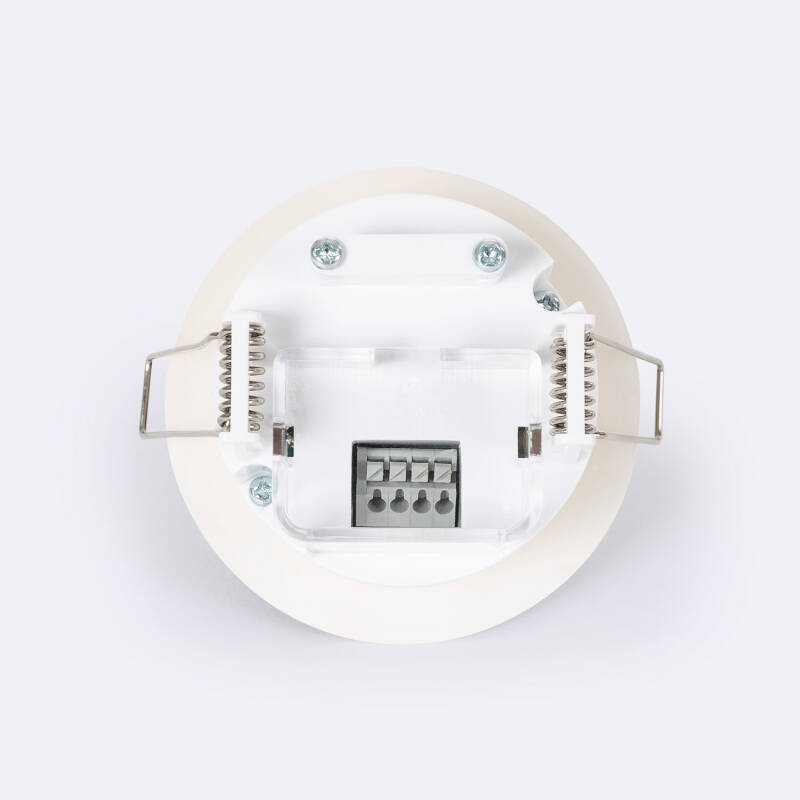

PIR Motion Sensor 360° Recessed Waterproof IP65
Ref. Lyco: E37382
(1)4 out of 5 stars
VAT not included £9.16
£10.99
Colour White
In Stock, Delivered in 8 to 14 working days
(1)4 out of 5 stars
30 Day Return
Under our Change Your Mind Guarantee you can return your item within 30 days for a refund using our hassle free return portal.
For more information view our Returns policy.
Want your items fast?
Check our delivery cut-off times below:
Mon – Thu: Order before 8:45 PM for 24/48h delivery.
Friday: Order before 3:00 PM for 24/48h delivery.
Full conditions here: Delivery methods.
100% secure payments
At Lyco we strive to protect your security and privacy. We use payment methods that guarantee your security. Both your personal and bank details are protected with all the security measures established in the current legislation
Up to 5 year warranty
Our warranty service of up to 5 years guarantees the replacement, repair or refund of defective products.
You will find the exact product warranty in the technical details.

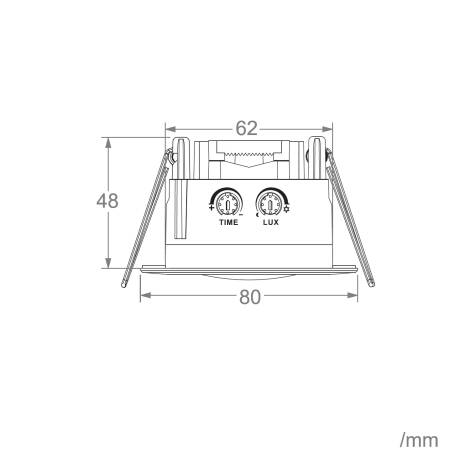

Dimensions
- Height52 mm
- Diameter80 mm
- Cut Out DimensionsØ75 mm
Downloads
PDF Datasheet 100268_206843 EN
Certificates and Stamps
Technical Specifications
Electrical Features
- Frequency50-60 Hz
- Max Wattage300 W
- Sensitivity10 Lux~2000 Lux
- Voltage Range220-240V ACVoltage level required for the product to function correctly.
Mechanical Features
- Detection Range360 °Defines the sensitivity area of a sensor in degrees. A wider angle will detect motion over a larger area.
- InstallationRecessed
- IP RatingIP65The IP protection indicates the level of resistance of a product to dust and water. The higher the number, the more protected it is.
- SensorPIR
- Sensor TypePIR Motion
Product Data
- Product FormatPIR Light Controller
- Product typeSensors
Product Information
- BrandLyco
- CertificatesCE, RoHS, UKCA
- Guarantee3 years
Materials and Finishes
- ColourWhite
- Fitting MaterialPC
Description
The Recessed 360° PIR Motion Sensor IP65 is an electronic device designed for use in outdoor lighting applications. With a detection range of 360° and a maximum detection distance from 2 to 8 metres (<24℃), this sensor is able to detect the presence of people or objects in all directions.
It has an adjustable time delay from 10 seconds to 7 minutes and operates on 220-240V/AC voltage at 50/60Hz. It is capable of supporting a maximum load of 1200W for incandescent lamps and 300W LED lamps and its sensitivity range is adjustable from less than 10 to 2000 LUX. In addition, it has an IP65 rating, which makes it resistant to dust and water ingress and is designed to be flush mounted.
